6SL3210-1PE27-5AL0 | SIEMENS Power module

in stock#

Brand/ Manufacturer:
SIEMENS
Dimensions:
20x47.2x23.7cm
Weight:
18.5 kg
Country of Origin: :
GERMANY
Description:

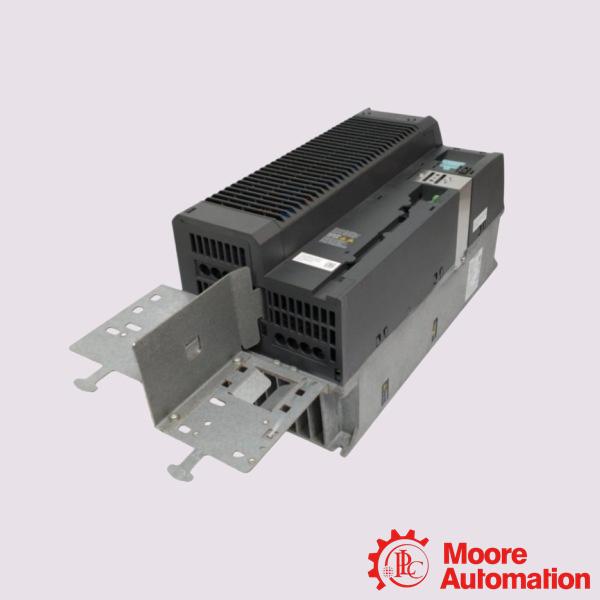

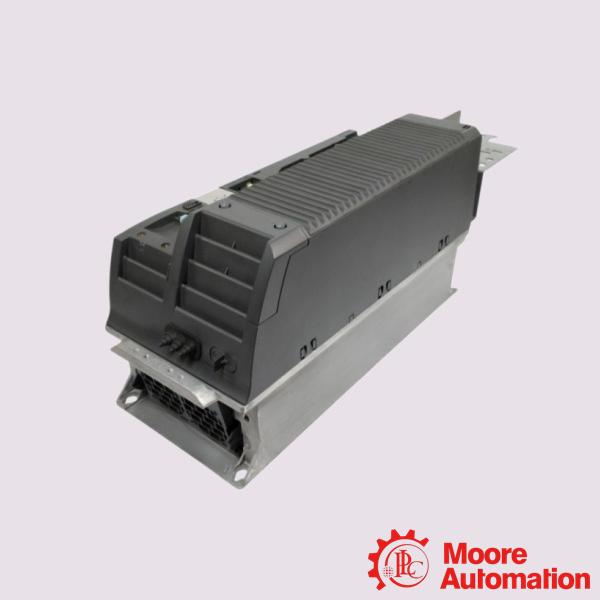

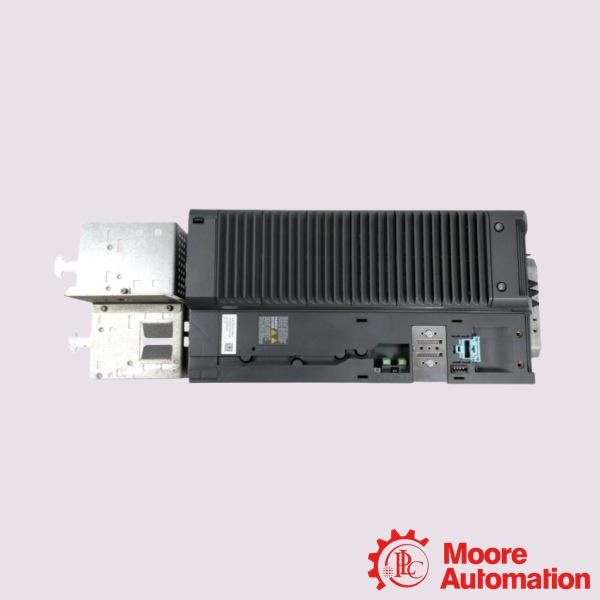

SIEMENS 6SL3210-1PE27-5AL0 Power module

Inquiry now

Mfr. Part Number:	6SL3210-1PE27-5AL0

Manufacturer:	SIEMENS

Description:	SIEMENS 6SL3210-1PE27-5AL0 Power module

Full Description:	The SIEMENS 6SL3210-1PE27-5AL0 power module as part of the SINAMICS G120 series

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for SIEMENS. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

Siemens offers the 6SL3210-1PE27-5AL0 power module as part of the SINAMICS G120 series. This component is capable of handling a 3-phase AC input, specifically in line voltage ranges from 380 to 480 V. It accommodates a frequency span of 47 to 63 Hz. The rated current specifications include 75 A for low overload (LO) conditions and 60 A for high overload (HO) scenarios. For power capabilities, it delivers 37 kW under LO conditions and 30 kW under HO conditions.

Cooling is achieved via an internal air system, which has a minimum airflow requirement of 0.055 m³/s for optimal operation. Connections are made on the line side through screw-type terminals, and the module allows for conductor cross-section dimensions varying between 10.00 mm² and 35.00 mm².

Application:

Logistics transportation: Heavy-duty conveyors, drum conveyors, and high-load sorting systems in logistics centers.
Food and pharmaceuticals: Drive mixers, centrifuges, pulverizers, and mixing equipment.
Automobile manufacturing: Conveying systems for assembly lines, exhaust ventilation equipment in painting workshops, and auxiliary production lines for stamping.
Basic mechanical processing: Main drive control for textile machinery, packaging machines, and woodworking machinery.

Frequently Asked Questions (FAQ)

Q:How many input phases does the SIEMENS 6SL3210-1PE27-5AL0 support?
A:The SIEMENS 6SL3210-1PE27-5AL0 supports 3 AC input phases.

Q:What is the line voltage range for the SIEMENS 6SL3210-1PE27-5AL0?
A:The SIEMENS 6SL3210-1PE27-5AL0 operates with a line voltage range of 380...480V ±10%.

Q:What is the pulse frequency of the SIEMENS 6SL3210-1PE27-5AL0?
A:The pulse frequency of the SIEMENS 6SL3210-1PE27-5AL0 is 4 kHz.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number: 6SL3210-1PE27-5AL0
Input Number of Phases	3 AC
Line Voltage	380...480V ±10%
Line Frequency	47...63 Hz
Rated Current (HO)	62.00 A
Output Number of Phases	3 AC
Pulse Frequency	4 kHz
Output Frequency for Vector Control	0 ... 200 Hz
Sound Pressure Level (1m)	72 dB
Power Loss	1.02 kW
Transport Temperature Range	-40 ... 70 °C (-40 ... 158 °F)
Storage Temperature Range	-40 ... 70 °C (-40 ... 158 °F)
Conductor Cross-Section	10.00 ... 35.00 mm²
Degree of Protection	IP20 / UL Open Type
