6SL3100-0BE23-6AB0 | SIEMENS Active Interface Module

in stock#

Brand/ Manufacturer:
SIEMENS
Dimensions:
15x38x27cm
Weight:
19 kg
Country of Origin: :
GERMANY
Description:

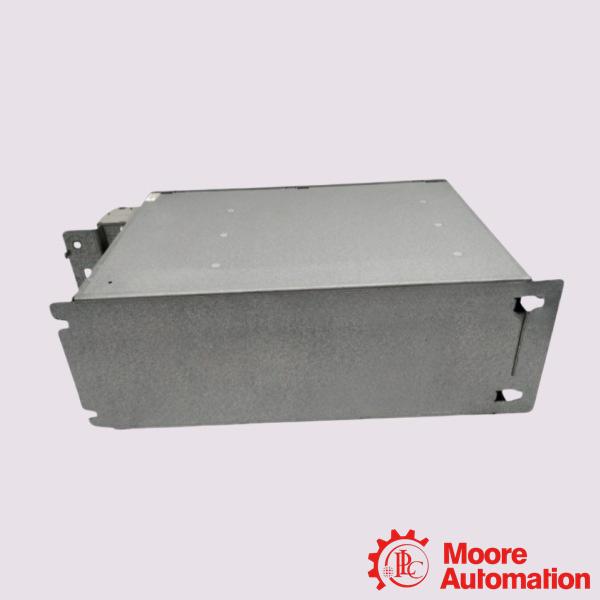

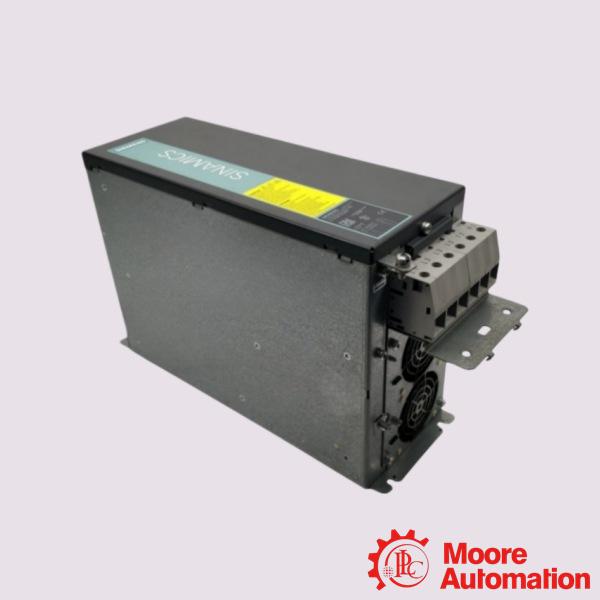

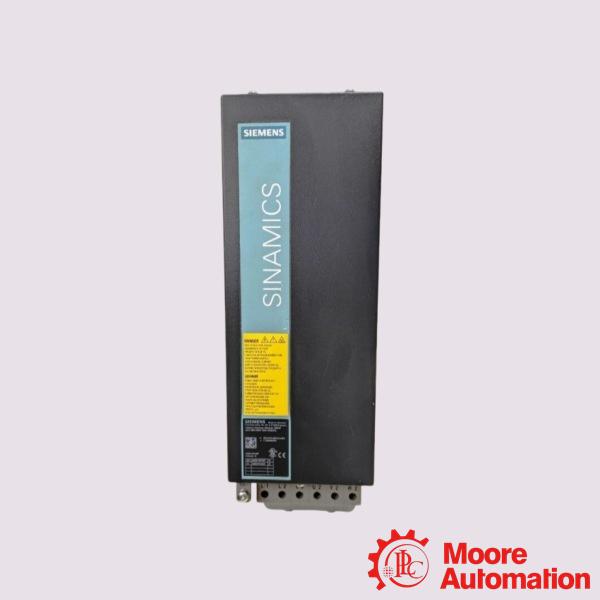

SIEMENS 6SL3100-0BE23-6AB0 Active Interface Module

Inquiry now

Mfr. Part Number:	6SL3100-0BE23-6AB0

Manufacturer:	SIEMENS

Description:	SIEMENS 6SL3100-0BE23-6AB0 Active Interface Module

Full Description:	The SIEMENS 6SL3100-0BE23-6AB0 is an Active Interface Module for the SINAMICS S120

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for SIEMENS. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 6SL3100-0BE23-6AB0 is a S120 Active Interface Module from Siemens within the SINAMICS series. Primarily for a three-phase input voltage range of 380 to 480 V AC, this module delivers a nominal current of 0.49 A. It features a built-in resistance of 1440 Ω, with a tolerance margin of ±10%. To operate efficiently, the module requires a power input of 24 V DC at 1.6 A.

Integrated air cooling facilitates optimal thermal management with an airflow rate of 0.04 m³/s (approximately 1.41 ft³/s). In terms of energy consumption, the device experiences an energy loss of 0.34 kW while operating at a noise level of 60 dB, making it relatively quiet during function. The module can switch currents up to 0.75 A for 250 V AC and 60 V DC applications, showcasing its versatility in handling different electrical configurations.

Application:

Machine tool manufacturing: High-precision milling processing centers, grinding machines and CNC machines.
Automotive industry: Powertrain processing lines, body assembly lines and coating robot control systems.
Packaging and printing: Rapid packaging machines that require frequent braking and energy feedback, multi-color printing units.
Textile and papermaking: Long-line transmission equipment that requires maintaining constant tension and synchronous control.

Frequently Asked Questions (FAQ)

Q:What type of current does the SIEMENS 6SL3100-0BE23-6AB0 operate with?
A:The SIEMENS 6SL3100-0BE23-6AB0 operates with 3-phase AC and DC control current.

Q:What is the sound pressure level of the SIEMENS 6SL3100-0BE23-6AB0?
A:The SIEMENS 6SL3100-0BE23-6AB0 has a sound pressure level of 60 dB.

Q:What conductor cross-section is required for the SIEMENS 6SL3100-0BE23-6AB0?
A:The SIEMENS 6SL3100-0BE23-6AB0 requires a conductor cross-section of 50 mm² (1 AWG).

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number: 6SL3100-0BE23-6AB0
Input Number of Phases	3AC
Line Voltage	380...480V
Internal Resistor	1440 Ω ±10%
Rated Current	58A
Power Requirement (DC 24 V)	0.49A
Switching Current (as NC Circuit at 250 V AC)	1.6A
Switching Current (as NC Circuit at 60 V DC)	0.75A
Degree of Protection	IP20 / UL Open Type
Sound Pressure Level	60 dB
Power Loss	0.34 kW
Conductor Cross-Section	50 mm² (1 AWG)
