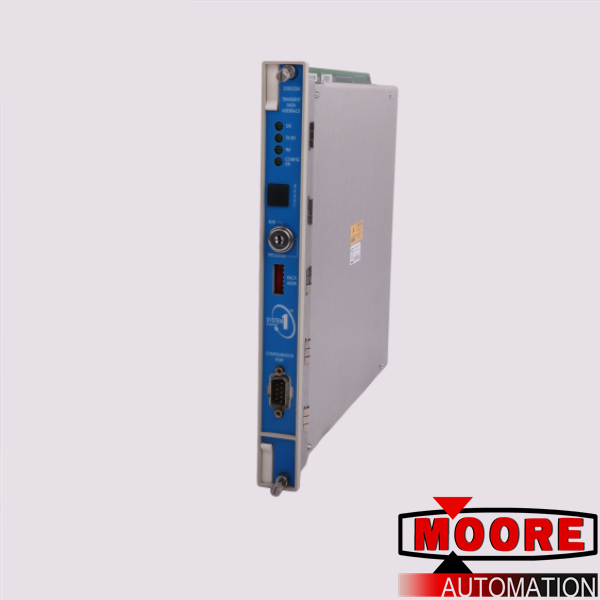

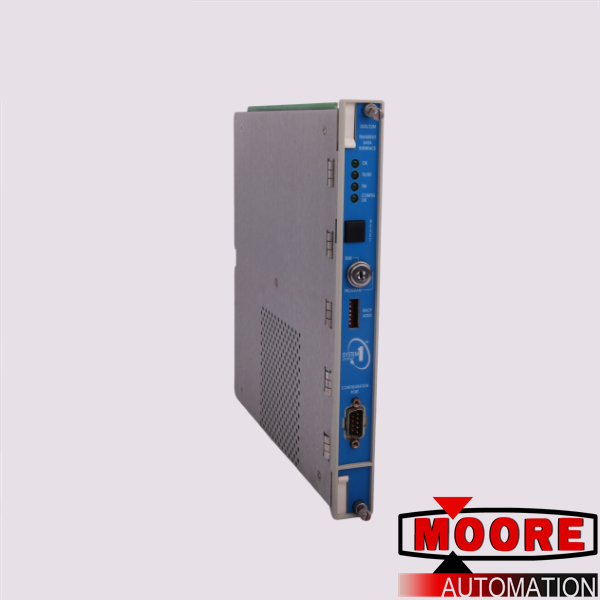

3500/22M 138607-01 GE Bently Nevada Transient Data Interface

Brand/ Manufacturer:
Bently Nevada
Dimensions:
2.6cm*25.8cm*24cm
Weight:
0.8kg
Country of Origin: :
United States
Description:
Standard Transient Data Interface Module

Inquiry now

Mfr. Part Number:	3500/22M 138607-01

Manufacturer:	Bently Nevada

Description:	138607-01 \| Bently Nevada \| 3500/22M Standard Transient Data Interface Module In stock ready to ship

Full Description:	The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software

Sales manager: Tiffany Guan plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

Product Describe:

Manufacturer : Bently Nevada
Product No. : 138607-01
Product Type : 3500/22M Standard Transient Data Interface Module
Made in U.S.A
Can add on Certificate Of Origin (COO)
Weight : 0.82 Kg
Shipping Weight : 3Kg

The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software).

The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.

The TDI resides in the slot adjacent to the power supplies of a 3500 rack. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and transient dynamic (waveform) data and pass this data through an Ethernet link to the host software.

However, using an optional Channel Enabling Disk will allow the TDI to capture dynamic and high-resolution transient data as well. The TDI incorporates the communication processor function within the 3500 rack.

Although the TDI provides certain functions common to the entire rack, it is not part of the critical monitoring path and has no effect on the proper, normal operation of the overall monitor system for automatic machinery protection. Every 3500 rack requires one TDI or RIM, which always occupies Slot 1 (next to the power supplies).
