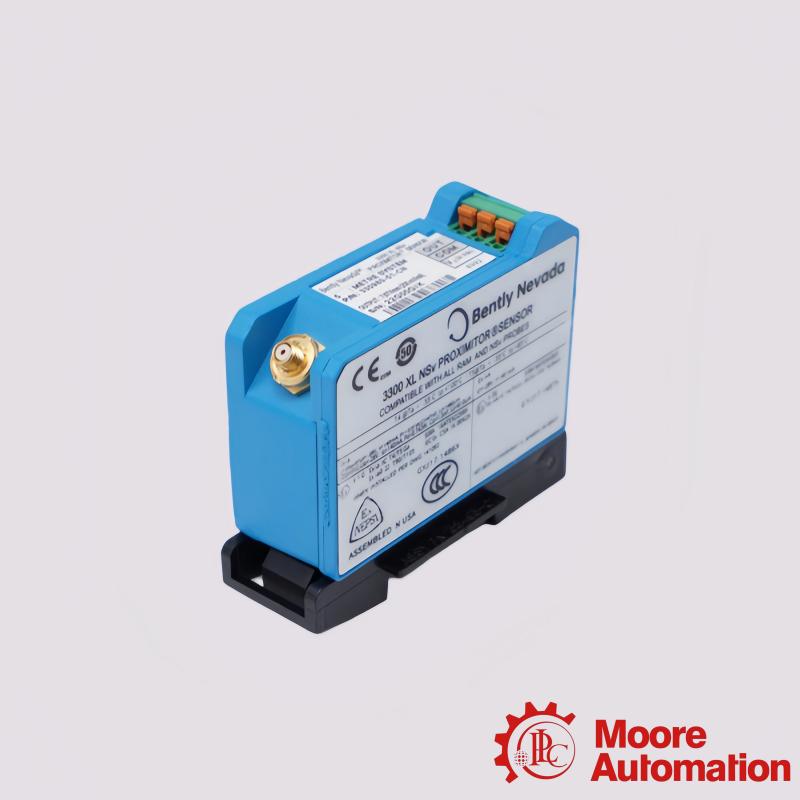

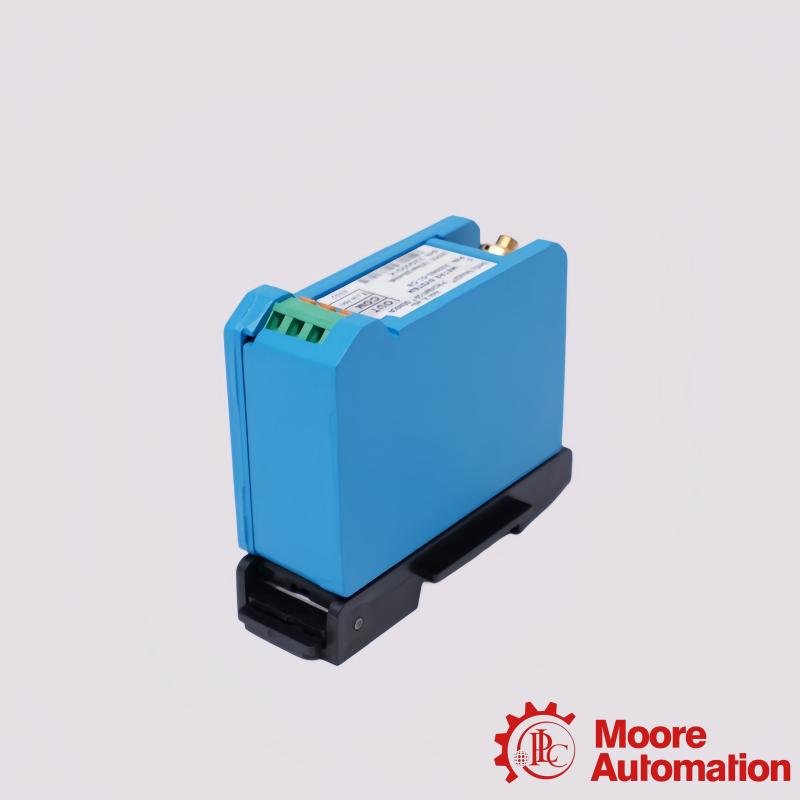

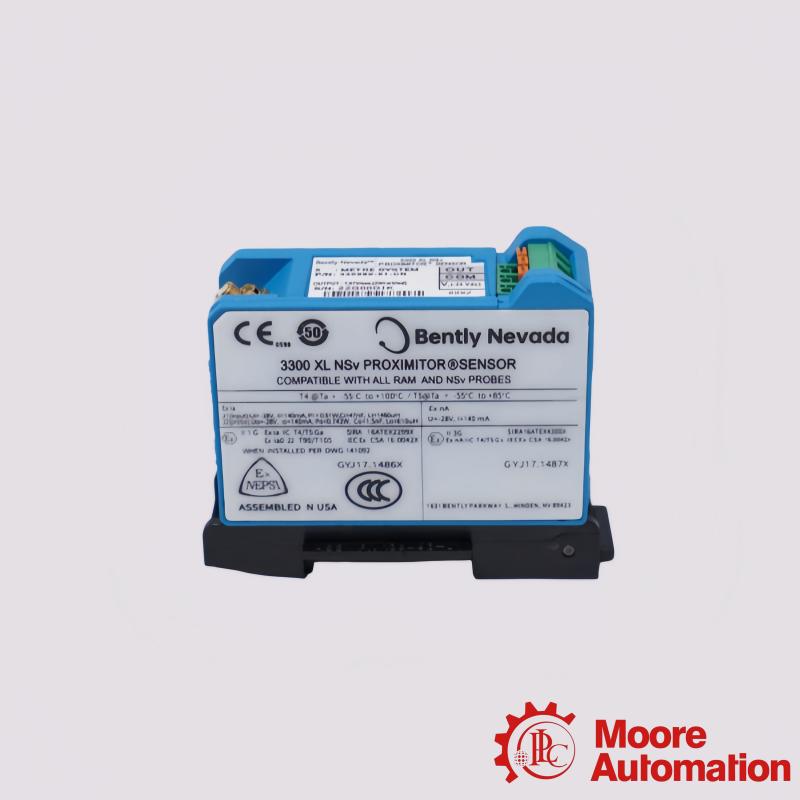

330980-51-00 | Bently Nevada 3300 XL NSv Proximitor Sensor

Description

The 330980-51-00 is a 3300 NSv Proximitor Sensor provides an electrical output directly proportional to the distance between the probe tip and the observed conductive surface. It provides both a DC gap voltage for position measurements and an AC dynamic signal for vibration measurements. This sensor is configured for a 5.0-meter system length and uses panel mounting as the standard installation method. It is a core component of the 3300 NSv transducer system, which is intended for use with machines where clearance is restricted and small shaft diameters (less than 76 mm) are present. The sensor carries no agency approvals (00) for hazardous area installations.

Parameter

A: Total Length and Mounting Option
51 5.0 meter (16.4 feet) system length, panel mount
B: Agency Approval Option
00 Not required
Operating Temperature: -52°C to +100°C (-62°F to +212°F)
Storage Temperature: -52°C to +105°C (-62°F to +221°F)
Relative Humidity:100% condensing, nonsubmersible when connectors are protected.

Frequently asked questions

Does the 330980-51-00 require a specific proximity probe and cable?
Yes,it must be used as part of a complete 5.0-meter 3300 NSv system, which includes a 3300 NSv probe and a matching extension cable to ensure accurate calibration.

Can the 330980-51-00 be mounted on a DIN-rail?
The "51" option in 330980-51-00 specifies panel mounting; however, it can be adapted for DIN-rail mounting by using a separate DIN-rail installation kit or clip.

Is it necessary to re-calibrate the 330980-51-00 if replace the probe?
No. Components of the 3300 NSv system are fully interchangeable. As long as the total system length remains 5.0 meters,and can replace the probe without re-calibrating.

Application areas:
Power Industry: Monitoring the operating status of steam turbines, water turbines, generators, and associated pump sets.

Oil and Petrochemical Industry: Centrifugal compressors, reciprocating compressors, and various process gas compressors.

Metallurgy and Steel Industry: Vibration monitoring of large fans, motors, and transmission devices.

Manufacturing and Water Conservancy: Monitoring of rotating machinery in machine tool manufacturing, shipbuilding, and water conservancy projects.
