Product Description:

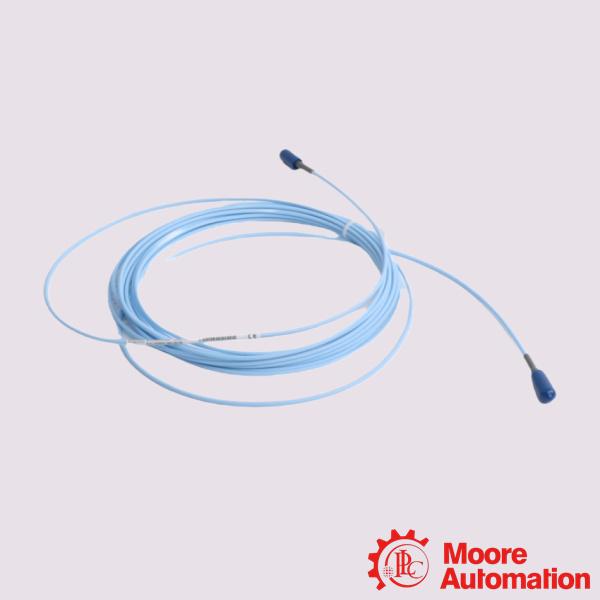

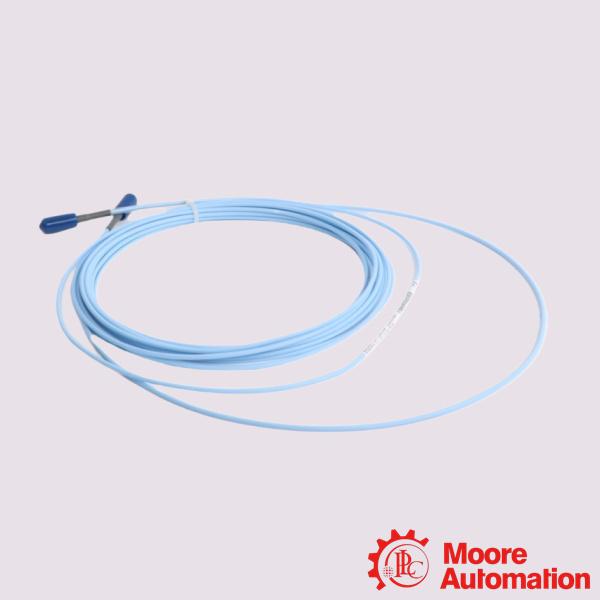

The Bently Nevada 330930-060-03-05 serves as the vital signal link within the 3300 NSv (Near Surface version) Proximity Transducer System. Specifically engineered for applications with small target areas or restricted installation clearances—such as centrifugal compressors, pumps, and fluid-film bearings—this extension cable maintains the high-frequency response required for accurate vibration and position data. It ensures impedance matching between the 3300 NSv probe and the Proximitor sensor, eliminating signal distortion in critical Machinery Protection Systems (MPS).

Frequently Asked Questions (FAQ)

Q:What is the primary function of this cable?
A:The extension cable bridges the electrical gap between a 3300 XL NSv proximity probe and a 3300 XL NSv Proximitor sensor. It passes the high-frequency eddy current signals generated at the probe tip back to the sensor module to accurately measure shaft vibration, thrust position, and dynamic movement.
Q: What unique features do the connectors have?
A:The system utilizes gold-plated brass ClickLoc connectors. These are patented, lock-in-place connectors designed to physically prevent the cable connection from loosening over time due to machine vibration. They eliminate the need for specialized tools during installation or removal.

Q:Can I mix this cable with standard 3300 XL 5mm or 8mm systems?
A:No. The 3300 XL NSv system has unique electrical properties, tuning, and a distinct nominal sensitivity of 7.87 mV/mil (compared to the standard 200 mV/mil found on standard 8mm systems). Mixing components between standard XL systems and NSv systems will result in severe calibration errors and incorrect vibration readings. It is, however, backwards compatible with older 3300 RAM proximity probes.
