Product Description:

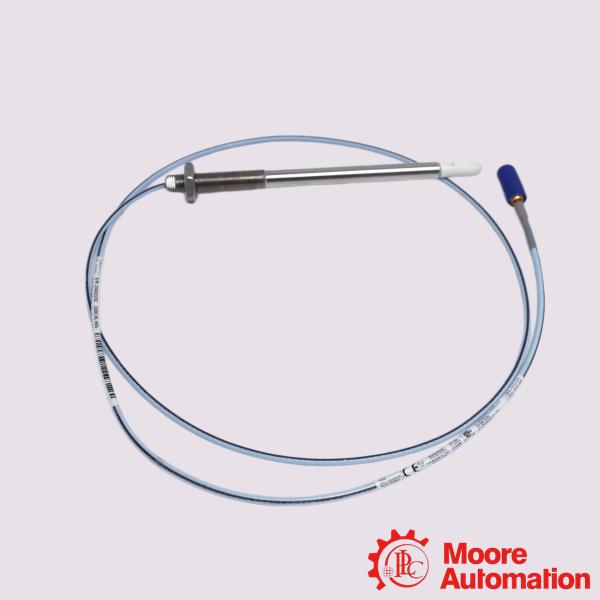

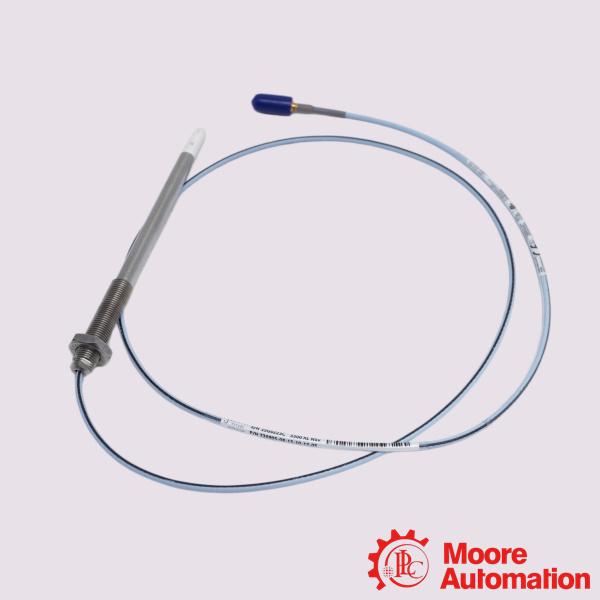

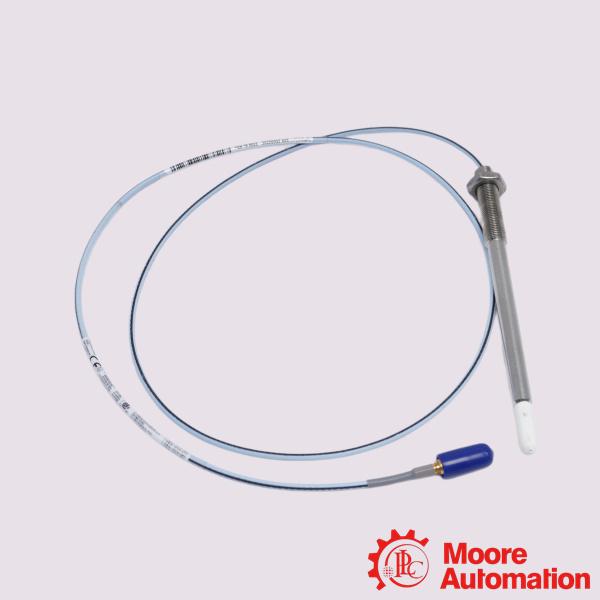

The Bently Nevada 330905-00-13-05-01-CN is a 3300 NSv (Narrow Side-view) Proximity Probe for non-contact vibration and position monitoring in tight spaces or on very small machinery components. The target industrial applications for this sensor span across industries that use high-speed rotating machinery with space limitations or small-diameter shafts.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System. Upgrades from the 3300 RAM system to the 3300 XL NSv system may use the existing probe, extension cable, and monitoring 3300 XL NSv Proximity Transducer System.

Frequently Asked Questions (FAQ)

Q:Can it be used in hazardous, explosive environments?

A:Yes, the "-CN" designation indicates it meets required regional hazardous area approvals. It can operate safely within classified zones when installed alongside approved intrinsic safety barriers and matching Bently Nevada Proximitor sensors or transmitters.
Q:How often should this probe's calibration be verified?
A:An annual calibration verification is highly recommended under standard operating conditions. If the sensor functions as part of a critical safety loop, more frequent validation intervals may be required by your plant's safety guidelines.

Q:What is the default target material calibration?
A:The probe is calibrated for AISI 4140 steel. Other conductive materials will changethe system's output and require target-specific recalibration.
