in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.5x1.1x61.5cmWeight:
0.08kgCountry of Origin: :
USADescription:

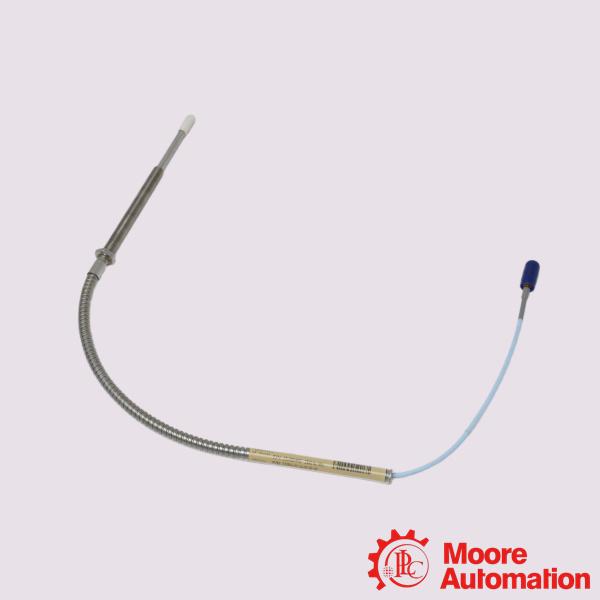

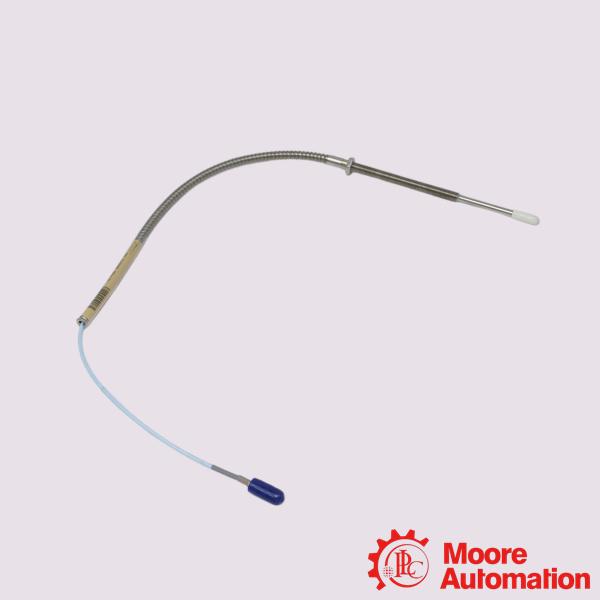

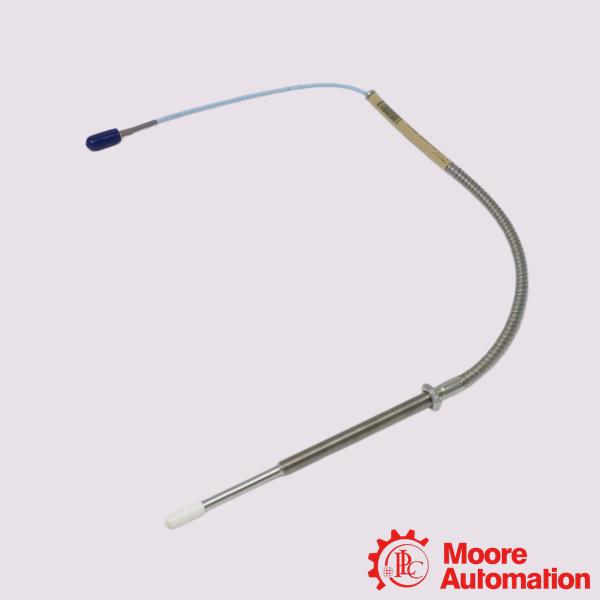

Bently Nevada 330904-00-25-10-01-00 3300 NSv Proximity Probes
| Mfr. Part Number: |
330904-05-14-05-02-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330904-05-14-05-02-CN is a specific configuration of the 3300 XL NSv Proximity Probe, It is for precision vibration and position monitoring in space-restricted applications, such as on small motor shafts, centrifugal air compressors, and refrigeration systems.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).
Application:
Centrifugal Air Compressors: Frequently deployed on packaged small-frame centrifugal compressors to monitor high-speed radial shaft vibration and thrust position.
Small-Scale Pumps and Fans: Ideal for monitoring machinery with thin shafts or compact fluid housings.
High-Speed Turbochargers & Expanders: Used in industrial gas processes where small targets rotate at extreme RPMs.
Small Steam Turbines and Generators: Protects auxiliary power generation units by continuously tracking rotor dynamics.
Frequently Asked Questions (FAQ)
Q:Is this system backwards compatible with older gear?
A:Yes. The 3300 XL NSv system is explicitly designed to replace legacy 3300 RAM Transducer Systems as well as older 3000-series or 7000-series 190 transducer setups. Upgrades can often reuse your existing legacy extension cables depending on installation parameters.
Q:What kind of cable connection does this specific model use?
A:This probe comes built with a 0.5-meter standard cable terminating in a ClickLoc miniature coaxial connector. It requires a matching 3300 NSv extension cable to complete the link to the Proximitor sensor. Note that the 02 designation in this part number indicates it does not feature integrated stainless steel braided armor shielding on the cable body.
Q:What does "NSv" mean, and when is this probe used?
A:NSv stands for Narrow Surface / Small Volume. This system is specifically deployed where tight internal counterbore clearances, strong side-view restrictions, or small target profiles make standard 5mm or 8mm probes unusable. It is ideal for measuring target flat surfaces smaller than 15 mm (0.6 in) or radial shaft vibrations on shafts smaller than 51 mm (2 in).
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330904-05-14-05-02-CN |
|
Unthreaded Length Option |
50 mm |
|
Overall Case Length Option |
140 mm |
|
Total Length Option |
0.5 meter (20 in) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
