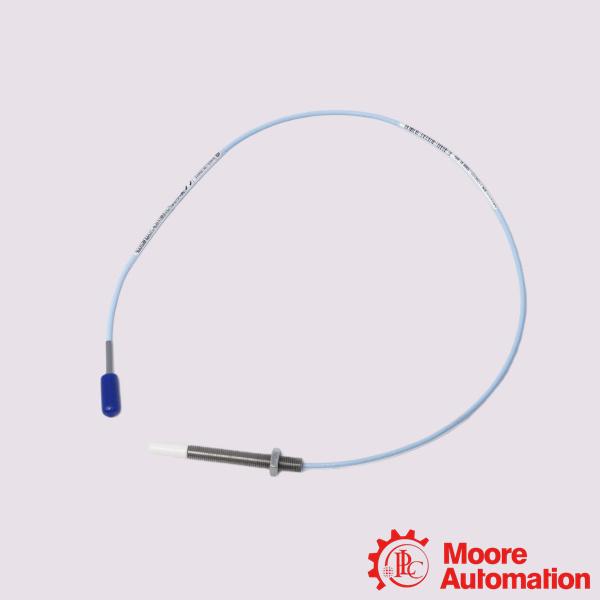

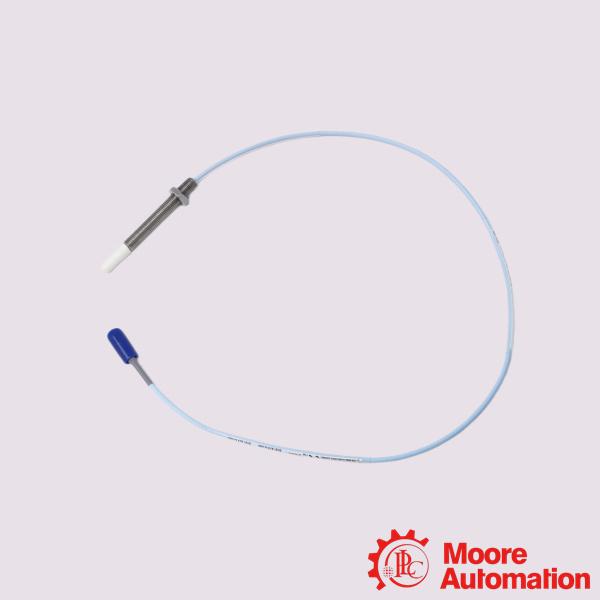

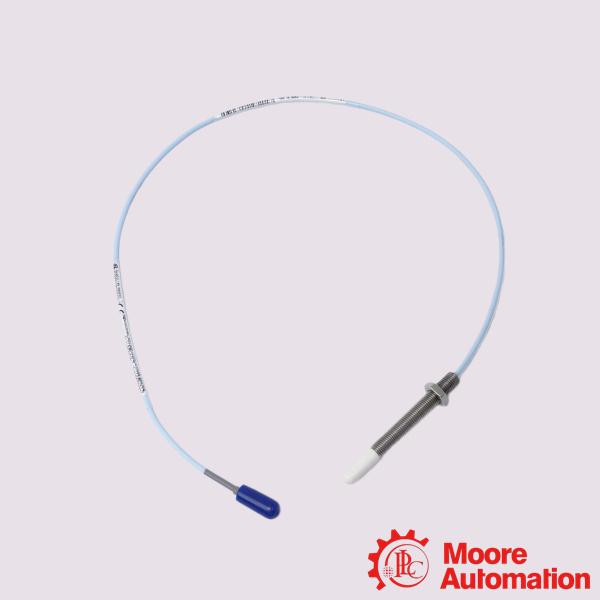

330903-00-09-10-02-05 | Bently Nevada 3300 NSv Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.3x1.1x65cm
Weight:
0.04kg
Country of Origin: :
USA
Description:
Bently Nevada 330903-00-09-10-02-05 3300 NSv Proximity Probes

Inquiry now

Mfr. Part Number:	330903-00-09-10-02-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330903-00-09-10-02-05 3300 NSv Proximity Probes

Full Description:	The Bently Nevada 330903-00-09-10-02-05 is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The primary uses for the Bently Nevada 330903-00-09-10-02-05 is for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).

Application:

Oil & Gas (Refining and Offshore): Deployed inside hazardous areas (Option -05) to track critical process compressors and pumps.
Chemical & Petrochemical Processing: Relies on the probe's high chemical resistance (up to 3x higher than legacy RAM probes) to withstand aggressive environments.
Power Generation: Monitors auxiliary plant equipment, small hydro-turbines, and generator shafts.
Centrifugal Air Compressors: Extensively used to monitor radial vibration on high-speed, small-diameter pinion shafts.

Frequently Asked Questions (FAQ)

Q:What does the "Narrow Side View" (NSv) feature prevent?
A:Standard eddy current probes emit a wide magnetic field that reacts to any nearby metal sides (like a narrow mounting hole or counterbore), distorting the output voltage. The 3300 NSv restricts this side-view profile field. This allows it to look straight ahead at the target shaft even when mounted deep inside a small, tightly bored hole.
Q:What are the spacing limits for the unarmored cable?
A:Because this variant utilizes an unarmored cable (-03 variant is armored), the outer FEP jacket must be shielded from sharp internal machine transitions and abrasive corners. Maintain a minimum bend radius of 25.4 mm (1.0 inch) during routing to safeguard the internal 75Ω coaxial conductors against signal degradation or physical breaks.

Q:How do ClickLoc connectors prevent accidental disconnection?
A:The probe features gold-plated brass ClickLoc connectors which mechanically snap and lock firmly into place. This prevents high-frequency machine vibration from causing loose connections. When mating the probe lead to your 3300 NSv extension cable, ensure you hear the definitive "click" engagement. Hand-tighten firmly; never use pliers directly on the miniature coaxial barrel.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330903-00-09-10-02-05
Unthreaded Length Option	0 mm
Overall Case Length Option	90 mm
Total Length Option	1.0 meter (39 in)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	Multiple Approvals
Output resistance	50 Ω
Proximitor Sensor Material	A380 aluminum
System Length	5 or 7 meters including extension cable
Probe Tip Material	Polyphenylene sulfide (PPS).
Operating and Storage Temperature	-52°C to +177°C (-62°F to +351°F)
