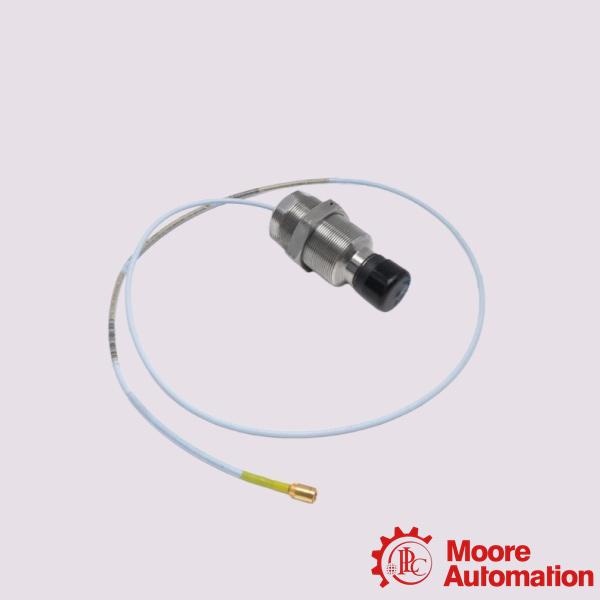

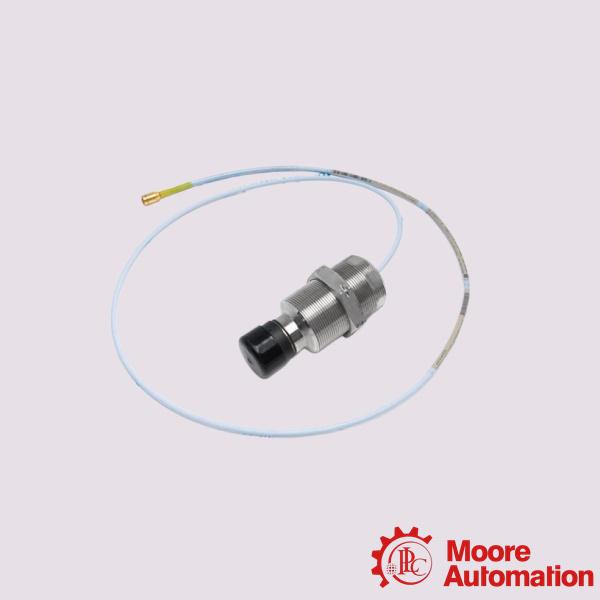

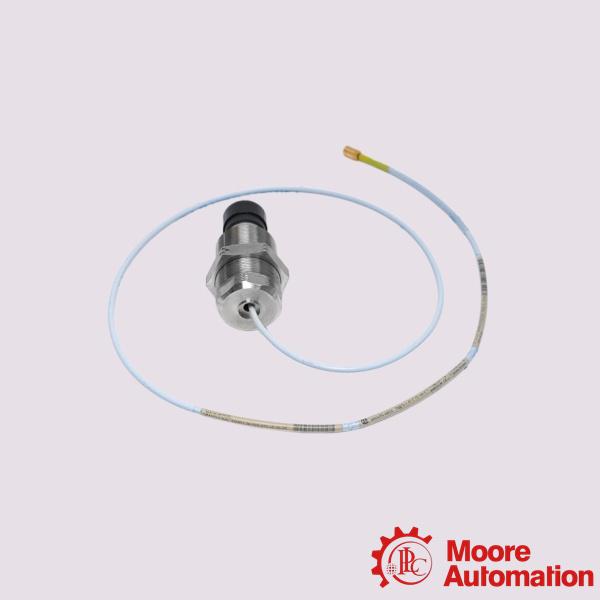

330851-02-010-140-10-00-05 | Bently Nevada 3300 XL 25 mm Proximity Probes

Description

The Bently Nevada 330851-02-010-140-10-00-05 is a 3300 XL 25 mm Proximity Probe designed for non-contact differential expansion and shaft position measurements on large rotating machinery such as steam turbine generators.The 3300 XL 25 mm Transducer System consists of a separate 25 mm probe, an extension cable, and a 3300 XL 25 mm Proximitor Sensor.  The 0.787 V/mm (20 mV/mil) output gives this system a linear range of 12.7 mm (500 mils).  Based on this linear range, the 3300 XL 25 mm Transducer System is suitable for measuring differential expansion (DE) on midsize to large steam turbine generators caused by the difference in growth rates between the turbine rotor and the machine stator (casing).

Parameter

A: Probe Case Type Option
02: M30x2 thread
B: Unthreaded Length Option
Minimum Unthreaded Length: 10 mm
C: Overall Case Length Option
Minimum Unthreaded Length: 140 mm
D: Total Length Option
10: 1.0 metre (3.3 feet)
E: Armor Option
00: No Armor
F: Agency Approval Option
05: Multiple Approvals

Frequently asked questions

What cable length is provided with the Bently Nevada 330851-02-010-140-10-00-05?
The Bently Nevada 330851-02-010-140-10-00-05 includes a total cable length of 1.0 metre (3.3 feet).

What components are included in the Bently Nevada 330851-02-010-140-10-00-05 transducer system?
The Bently Nevada 330851-02-010-140-10-00-05 transducer system includes a 25 mm probe, an extension cable, and a 3300 XL 25 mm Proximitor Sensor.

Can the Bently Nevada 330851-02-010-140-10-00-05 measure shaft position?
Yes, the Bently Nevada 330851-02-010-140-10-00-05 supports shaft position measurement on rotating equipment.

Application areas:
Steam turbine power plants: Used for differential expansion and shaft position monitoring in large steam turbine-generator sets to ensure safe and reliable operation.
Gas turbine facilities: Applied in high-speed rotating machinery protection systems for vibration and axial displacement measurement.
Chemical manufacturing factories: Ensures precise machinery health monitoring in reactors, compressors, and process-driven rotating systems.

Steel and metal processing plants: Monitors heavy-duty rotating machinery such as rolling mill drives and industrial turbines under harsh operating conditions.
