330195-02-12-50-05 | Bently Nevada ETR Reverse Mount Probes

Description

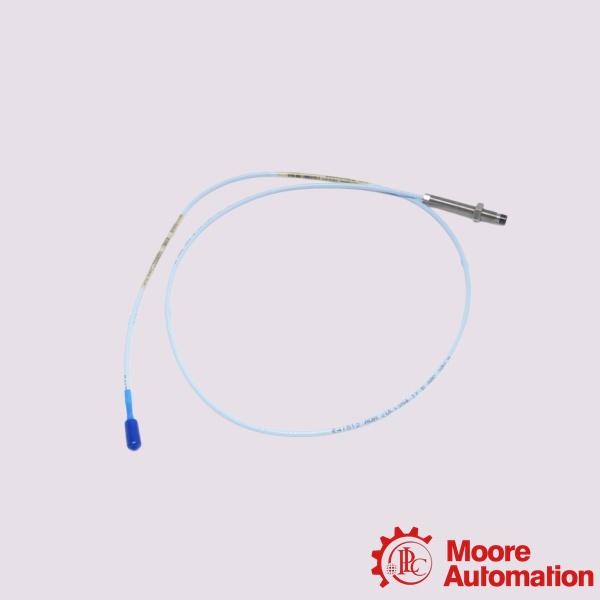

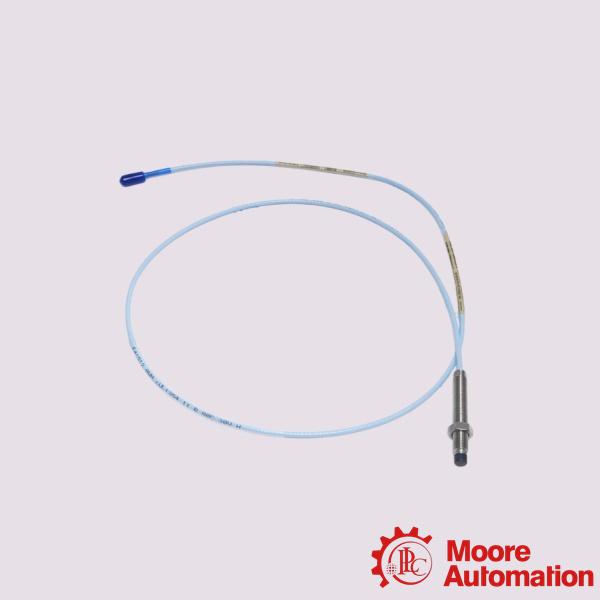

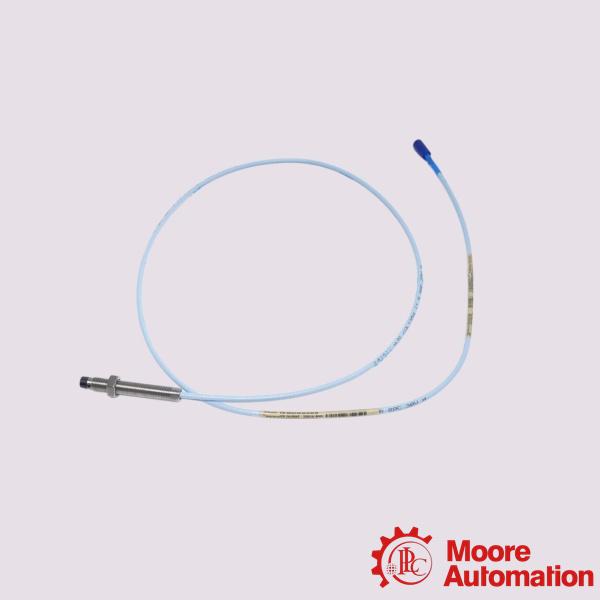

The 330195-02-12-50-05 is part of the Bently Nevada 3300 XL 8 mm Proximity Transducer System family. The probe is an Extended Temperature Range (ETR) reverse mount probe designed to operate with 3300 XL Proximitor Sensors and extension cables for non-contact vibration and position measurements on fluid-film bearing machines. The system provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, enabling both static and dynamic measurements such as shaft vibration, axial position, and Keyphasor reference signals.The 3300 XL 8 mm system incorporates patented TipLoc molding technology for improved probe tip retention and CableLoc technology providing 330 N (75 lbf) pull strength for enhanced cable reliability.

Parameter

02: 3/8-24 UNF thread
12: Standard connector/cable configuration
C: Total Length Option
50: 5.0 meters (16.4 feet)
D: Agency Approval Option
05: CSA, ATEX, IECEx approvals
Output Impedance: 50 Ω
Maximum Current Consumption: 12 mA

Frequently asked questions

What thread specification is provided on the Bently Nevada 330195-02-12-50-05?
The Bently Nevada 330195-02-12-50-05 includes a 3/8-24 UNF thread.

What cable configuration is identified by option 12 in the Bently Nevada 330195-02-12-50-05?
In the Bently Nevada 330195-02-12-50-05, option 12 indicates the standard connector and cable configuration..

What is the total cable length of the Bently Nevada 330195-02-12-50-05?
The Bently Nevada 330195-02-12-50-05 has a total length of 5.0 meters (16.4 feet).

Application areas:
Oil & Gas Industry: Used for continuous shaft vibration and position monitoring in compressors, turbines, and pumps operating in harsh and high-temperature environments.
Petrochemical Plants: Supports condition monitoring of critical rotating equipment to improve operational safety and reduce unplanned downtime.
Power Generation: Applied in steam and gas turbines to provide reliable rotor vibration and axial position measurements for predictive maintenance.

Industrial Manufacturing: Enables real-time machinery protection and performance monitoring in high-speed production equipment.
