in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
2.8x2.3x124cmWeight:
0.2kgCountry of Origin: :
USADescription:

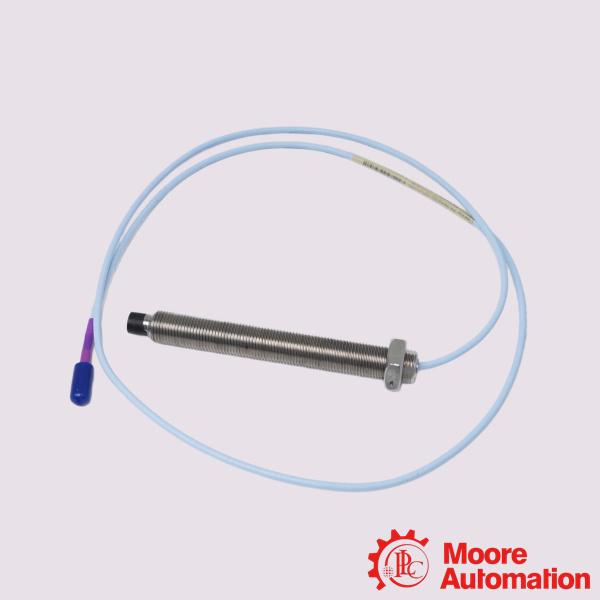

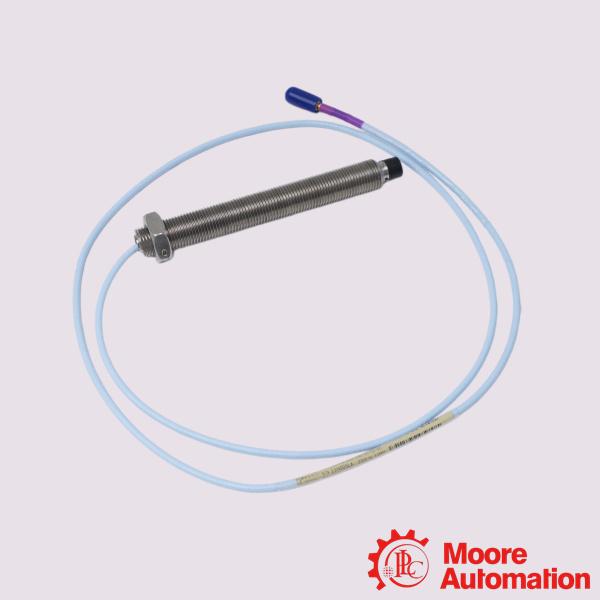

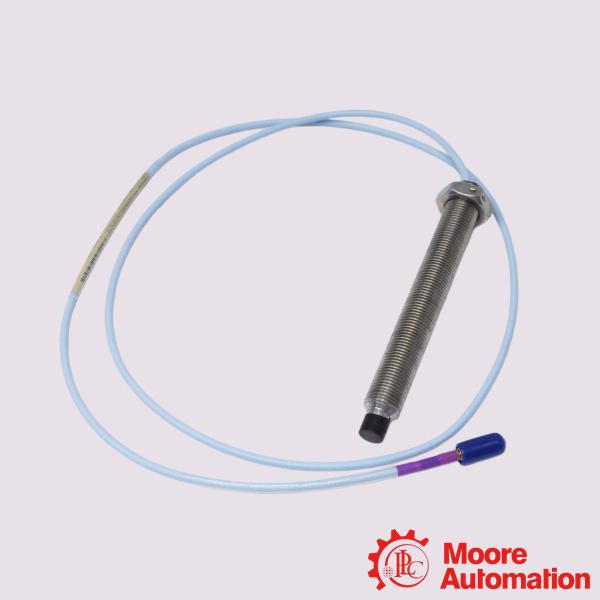

Bently Nevada 330709-000-100-10-02-00 3300 XL 11 mm Proximity Probes
| Mfr. Part Number: |
330709-000-100-10-02-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330709-000-100-10-02-00 is an industrial-grade 3300 XL 11 mm Proximity Probe. It provides non-contacting vibration and displacement measurements on heavy rotating machinery.The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required.
Application:
Radial Vibration & Position: Continuous tracking of high-amplitude shaft wobble and dynamic alignment within large fluid-film (hydrodynamic) bearings.
Ramp Differential Expansion: Measuring the variance in thermal growth rate between a steam turbine's rotor and its casing during startup and shutdown cycles.
Axial (Thrust) Position Measurements: Monitoring the physical displacement of a machine's shaft along its axis to prevent catastrophic metal-to-metal collision within bearings.
Centrifugal Compressors: Continuously watches multi-stage compressor shafts for microscopic misalignments and unbalance.
Frequently Asked Questions (FAQ)
Q:What is the primary purpose of this 11 mm probe?
A:It is engineered for fluid-film bearing machinery where a longer linear measurement range is required. It tracks critical measurements like axial (thrust) position and ramp differential expansion on large equipment like steam turbines.
Q:Can I use this 1.0-meter probe with any extension cable?
A:No. To maintain system calibration, the combined length of the probe and extension cable must match the required sensor configuration, which is typically a 5-meter or 9-meter system. This 1.0-meter probe requires a 4.0-meter or 8.0-meter extension cable respectively.
Q:What are the recommended mounting torque values?
A:Probe Case (M16 x 1.5): Tighten to 21.1 N⋅m (187 in⋅lb). Do not exceed 63.3 N⋅m.Coaxial Connectors: Finger-tight is recommended; do not exceed 0.565 N⋅m (5 in⋅lb).
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330709-000-100-10-02-00 |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
100 mm |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 304 stainless steel (SST). |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Agency Approval Option |
Not required |
|
