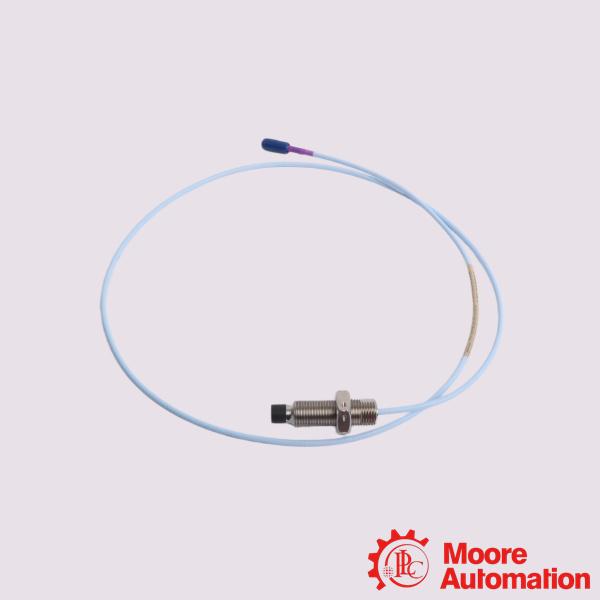

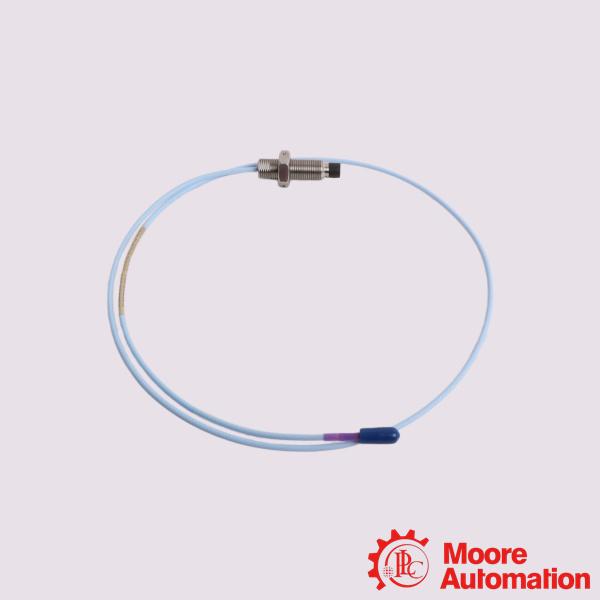

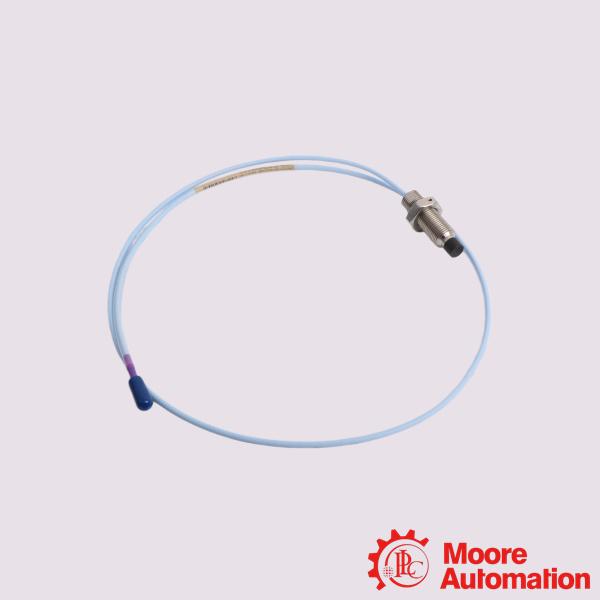

330709-000-050-10-12-05 | Bently Nevada 3300 XL 11 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
2.8x2.7x120cm
Weight:
0.1kg
Country of Origin: :
USA
Description:
Bently Nevada 330709-000-050-10-12-05 3300 XL 11 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330709-000-050-10-12-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330709-000-050-10-12-05 3300 XL 11 mm Proximity Probes

Full Description:	The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330709-000-050-10-12-05 3300 XL 11 mm Proximity Probes has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System. The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems.

Application:

Steam and Gas Turbines: Monitors ramp differential expansion (the relative thermal growth between the rotor and the turbine casing) and thrust position.
Reciprocating Compressors: Ideal for rod position or rod drop measurements to track rider band wear on the pistons
Large Hydroelectric Generators: Measures low-frequency radial vibration, structural displacement, and shaft centerline tracking.
Industrial Pumps and Fans: Continuously monitors shaft alignment, axial drift, and radial vibration to prevent catastrophic mechanical failure.

Frequently Asked Questions (FAQ)

Q:What system does this probe connect to?
A:This probe connects via a 1.0-meter cable to an extension cable, which then wires into a 3300 XL 11 mm Proximitor Sensor. It is important to note that the entire loop length (probe + extension cable) must match the requirements of the Proximitor sensor (typically balanced for 5.0-meter or 9.0-meter total system lengths).
Q:How does this probe measure vibration?
A:It operates on the eddy current principle. The Proximitor sensor sends a radio frequency signal to the coil inside the probe tip, creating a magnetic field. As a conductive target moves closer or further away, it alters the field, causing a change in voltage proportional to the gap distance.

Q:What are the target material requirements?
A:Standard calibration for the Bently Nevada 3300 XL system expects a target made of AISI 4140 steel. Using any other alloy target will alter the system accuracy and voltage-to-gap sensitivity curve unless the system is specifically custom-calibrated.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330709-000-050-10-12-05
Unthreaded Length Option	0 mm
Overall Case Length Option	50 mm
Total Length Option	1.0 meter (3.3 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, FluidLoc cable
Agency Approval Option	Multiple Approvals
Output resistance	50 Ω
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 304 stainless steel (SST)
Operating and Storage Temperature	-52°C to +177°C (-62°F to +351°F)
