330709-000-050-10-12-05 | Bently Nevada 3300 XL 11 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
2.8x2.7x120cm
Weight:
0.1kg
Country of Origin: :
USA
Description:

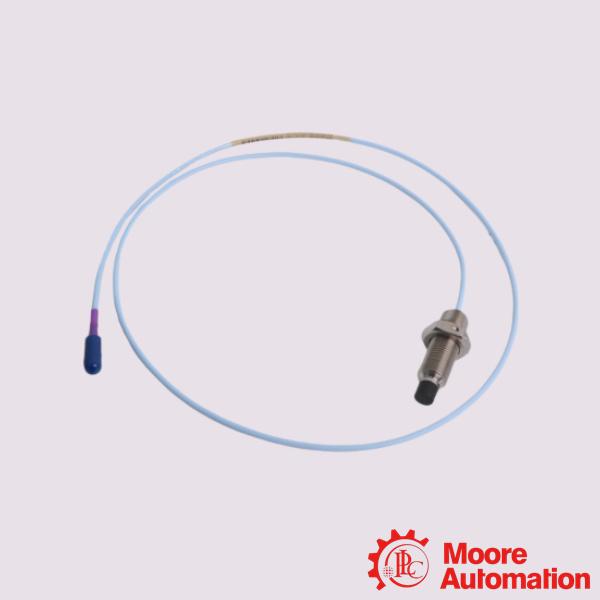

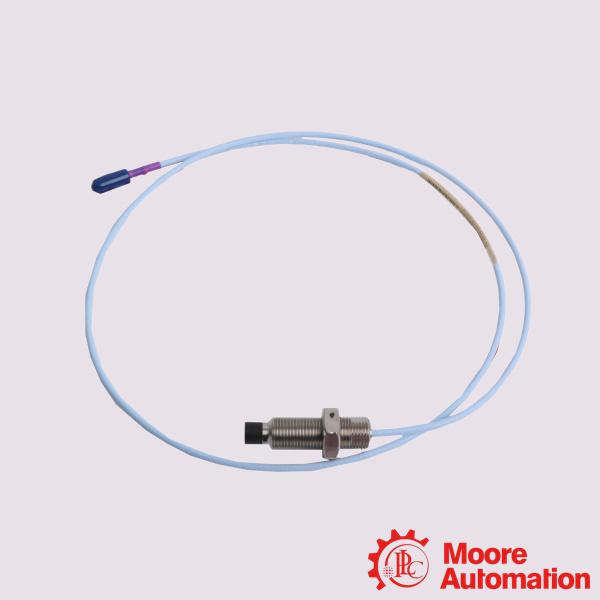

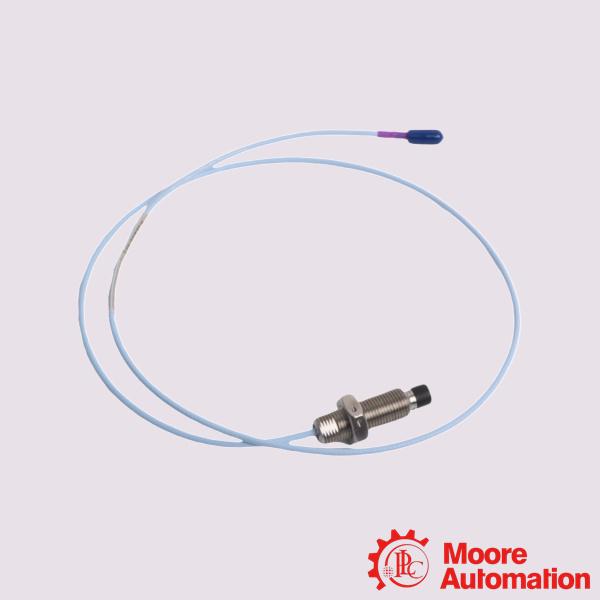

Bently Nevada 330709-000-050-10-12-05 3300 XL 11 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330709-000-050-10-12-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330709-000-050-10-12-05 3300 XL 11 mm Proximity Probes

Full Description:	The Bently Nevada 330709-000-050-10-12-05 is a 3300 XL 11 mm eddy current proximity probe with a 5/8-18 UNF thread, unarmored design, 0.0 inch unthreaded length, 5.0 inch overall housing length, and probe cable length. 1.0 meter.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 330709-000-050-10-12-05 is a 3300 XL 11 mm eddy current proximity probe with a 5/8-18 UNF thread, unarmored design, 0.0 inch unthreaded length, 5.0 inch overall housing length, and probe cable length. 1.0 meter. This probe is the core measuring element of the 3300 XL 11 mm eddy current sensor system, with an output sensitivity of 3.94 V/mm (100 mV/mil), suitable for non-contact vibration and displacement measurement in fluid film bearing equipment.

Application:

Steam and Gas Turbines: Vital for thermal growth and thrust stability tracking.
Large Reciprocating & Centrifugal Compressors: Ideal for crosshead or piston rod drop analytics.
High-Power Industrial Pumps & Fans: Protects heavy-duty fluid-film-bearing pumps operating in aggressive environments.
Electric Motors & Generators: Monitors rotor dynamics in mega-watt class power plant equipment.

Frequently Asked Questions (FAQ)

Q:What is the measurement range and sensitivity of this probe?
A:As part of the 3300 XL 11 mm Proximity Transducer System, it features a linear scale factor output of 3.94 V/mm (100 mV/mil). Its large 11 mm tip allows for a longer linear range than a standard 8 mm probe.
Q:What is the standard target size requirement?
A: For rotating shafts, the recommended minimum diameter is 152 mm (6.0 inches).For flat surfaces, the minimum target diameter must be at least 30.5 mm (1.2 inches). For rotating shafts, the recommended minimum diameter is 152 mm (6.0 inches).

Q:What torque should be applied to the probe housing?
A:For the M16 x 1.5 threaded case, the recommended installation torque is 21.1 N·m (187 in·lb). The maximum allowed limit is 63.3 N·m (560 in·lb); exceeding this can permanently warp the stainless steel body.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330709-000-050-10-12-05
Unthreaded Length Option	0 mm
Overall Case Length Option	50 mm
Total Length Option	1.0 meter (3.3 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, FluidLoc cable
Agency Approval Option	Multiple Approvals
Output resistance	50 Ω
Extension cable capacitance	69.9 pF/m (21.3 pF/ft) typical
Recommended Gap Setting	2.5 mm (100 mils)
Connector Material	Gold-plated brass
Operating and Storage Temperature	-52°C to +177°C (-62°F to +351°F)
