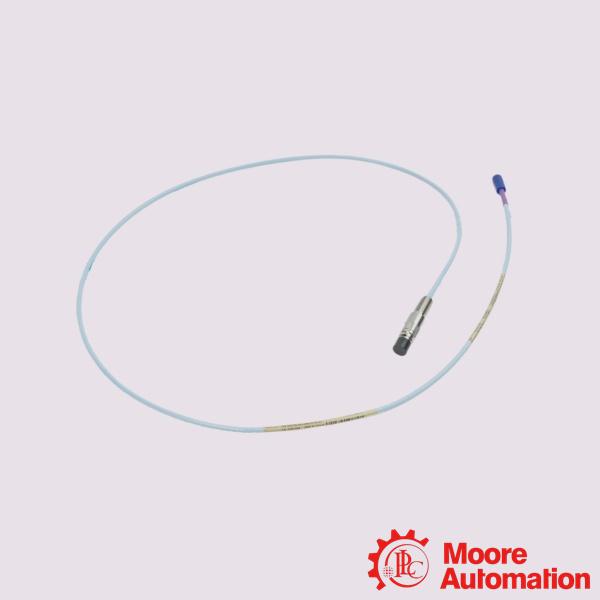

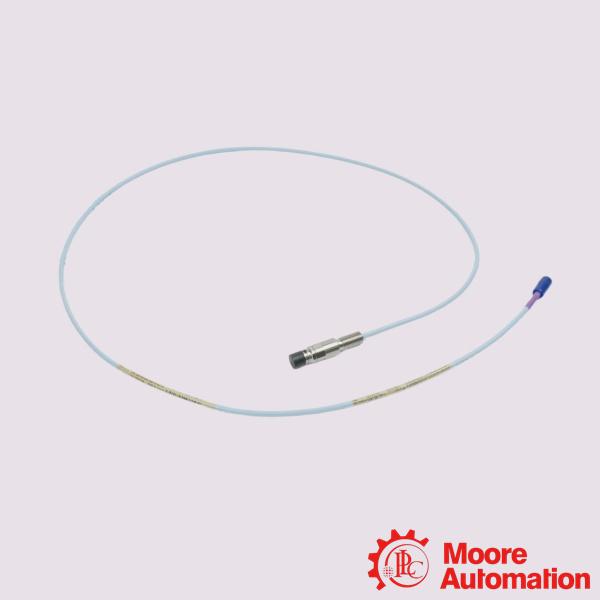

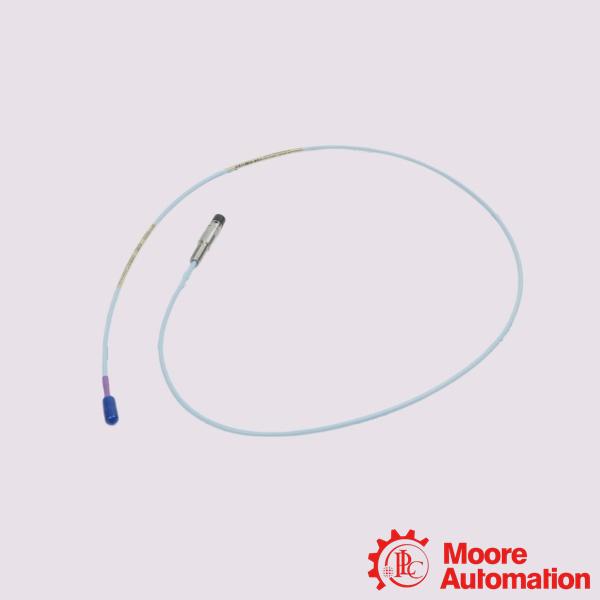

Product Description:

The 330706-005-46-10-02-00 3300 XL 11 mm probe comes in varying probe case configurations, including armored and unarmored ½-20, 5⁄8 -18, M14 X 1.5 and M16X 1.5 probe threads. The reverse mount 3300 XL 11 mm probe comes standard with either 3⁄8-24 or M10 X 1 threads. All components of the transducer system have gold-plated brass ClickLoc connectors.

The 3300 XL 11 mm Proximity Transducer System has a 3.94V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines.The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.

Application:
Electric power industry: Condition monitoring of steam turbine generators in thermal power plants, nuclear power plants and hydropower stations.
Petrochemical industry: Operation protection of large compressors, pumps and turbines in refineries.
Steel metallurgy: Vibration monitoring of large rotating equipment such as fans and mills in steel mills.
Oil and gas production: Power equipment protection for offshore platforms and refineries.
