in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
122x2.7x2.2cmWeight:
0.14kgCountry of Origin: :
USADescription:

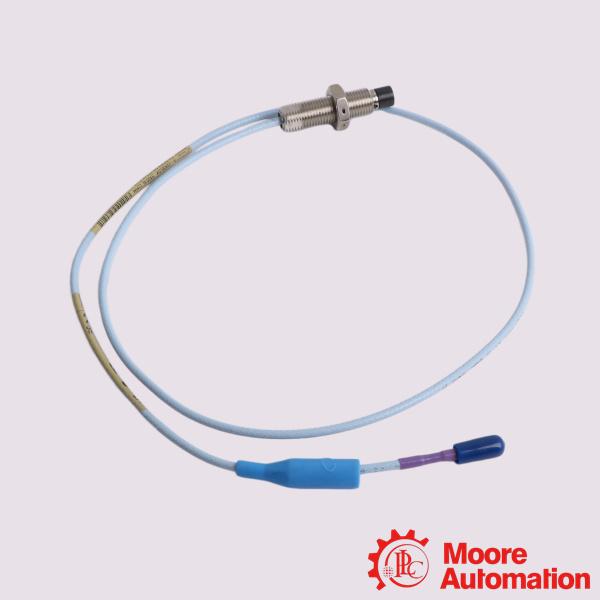

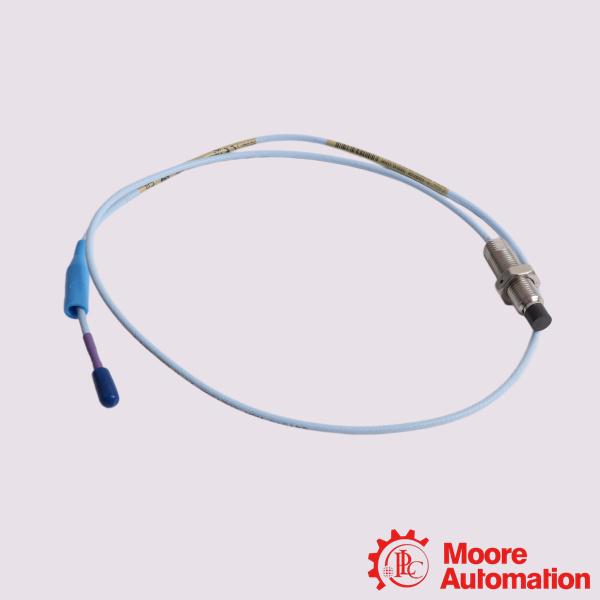

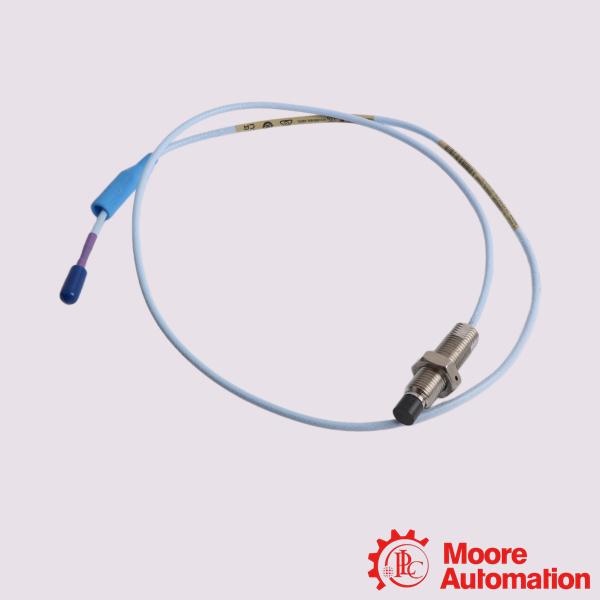

Bently Nevada 330703-000-100-50-12-00 3300 XL 11 mm Proximity Probes
| Mfr. Part Number: |
330703-000-100-50-12-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94
V/mm (100 mV/mil) output for non-contacting vibration and
displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330703-000-100-50-12-00 is an industrial 3300 XL 11 mm Proximity Probe used for non-contacting machinery vibration and displacement measurements. It is a critical component of the 3300 XL 11mm Proximity Transducer System.The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required.
Application:
Reciprocating Compressors: Specifically applied for rod position or rod drop measurements.
Centrifugal Machines: Ideal for vibration and displacement measurements on large machines using fluid-film bearings.
General Machinery Health: Continuous monitoring of pumps, motors, and gearboxes to detect early signs of bearing wear or abnormalities.
Rotational Timing: Provides phase reference (Keyphasor) signals, tachometer readings, and zero-speed measurements.
Frequently Asked Questions (FAQ)
Q:Can this probe handle harsh chemicals?
A:While the 3300 XL 11mm probe tip uses robust Polyphenylene Sulfide (PPS), environments with highly acidic or highly basic pH values can slowly erode the tip assembly, leading to fluid leakage.
Q:What is the target material used for factory calibration?
A:The system is factory-calibrated by default to a flat, AISI 4140 steel target that is 31 mm (1.2 in) or larger in diameter. Measurements taken on other alloys will deviate from standard accuracy unless the system is specifically recalibrated.
Q:What are the main applications for the 11 mm proximity probe system?
A:.Due to its broad 4.0 mm (160 mils) linear range, it is chosen for applications requiring significant positional travel. This includes axial (thrust) position tracking, steam turbine differential expansion, reciprocating compressor rod drop monitoring, and zero-speed tachometer/Keyphasor applications.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330703-000-100-50-12-00 |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
100 mm |
|
Total Length Option |
5.0 meters (16.4 feet) |
|
Output resistance |
50 Ω |
|
Standard DSL range |
Less than ±0.10 mm (±4 mils). |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 304 stainless steel (SST). |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, FluidLoc cable |
|
Agency Approval Option |
Not required |
|
