Product Description:

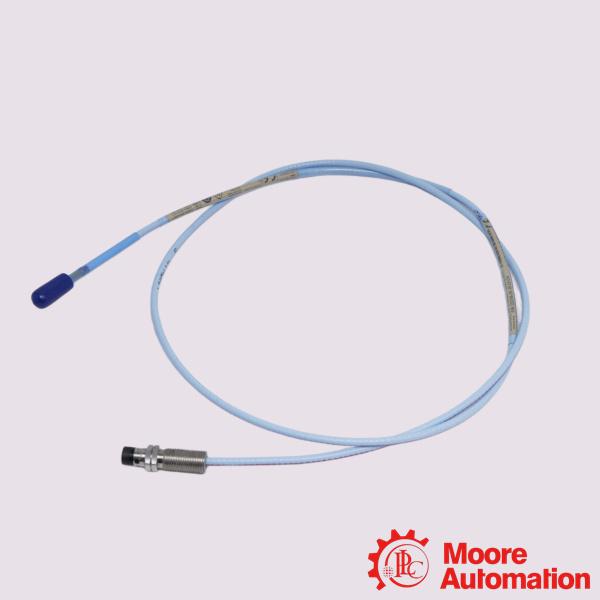

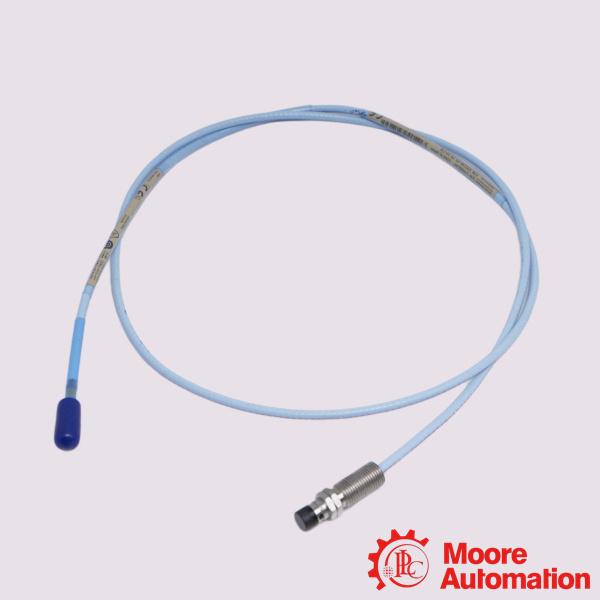

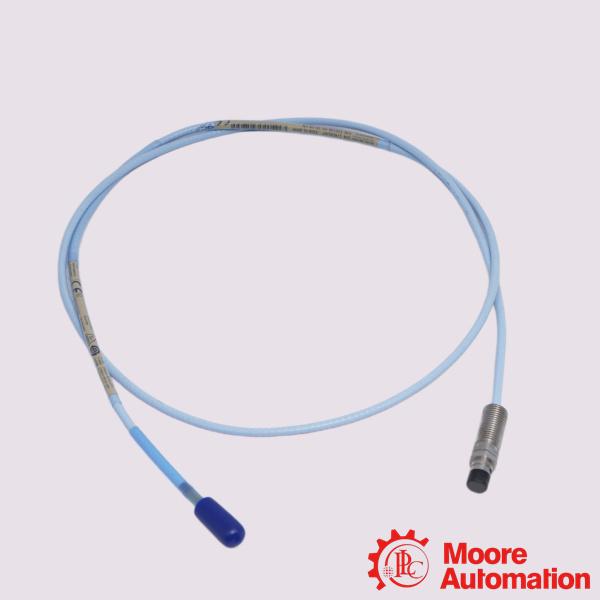

The Bently Nevada 330196-05-30-10-00 is an eddy-current proximity probe within the 3300 XL 8 mm Proximity Transducer System line. This specific part number designates an 11mm probe with a 3/8-24 UNF thread, a 3.0-inch unthreaded length, a 1.0-meter total length, and a standard miniature coaxial connector without armor.The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Frequently Asked Questions (FAQ)

Q:What does "Reverse Mount" mean for this probe?

A:Reverse mount probes are designed to be inserted into a housing from the rear rather than threaded directly through the machine casing from the outside. They are typically locked inside a sleeve or internal bracket, shielding the body from structural impacts and simplifying external adjustments.
Q:Does this 1.0-meter probe require an extension cable?
A:Yes. If you are integrating this into a standard 5-meter or 9-meter overall transducer system, you must mate it to a matching 3300 XL Extension Cable. For instance, a 1.0-meter probe connects to a 4.0-meter extension cable to complete a 5-meter system.

Q:Can I swap components with non-XL 3300 series parts?
A:Yes. The 3300 XL 8 mm system parts are physically and electrically interchangeable with vintage, non-XL Bently Nevada 5 mm and 8 mm system components. However, if components are mixed, the system's accuracy and performance thresholds default down to the legacy non-XL specification standard.
