in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
35x24x2cmWeight:
0.24kgCountry of Origin: :
USADescription:

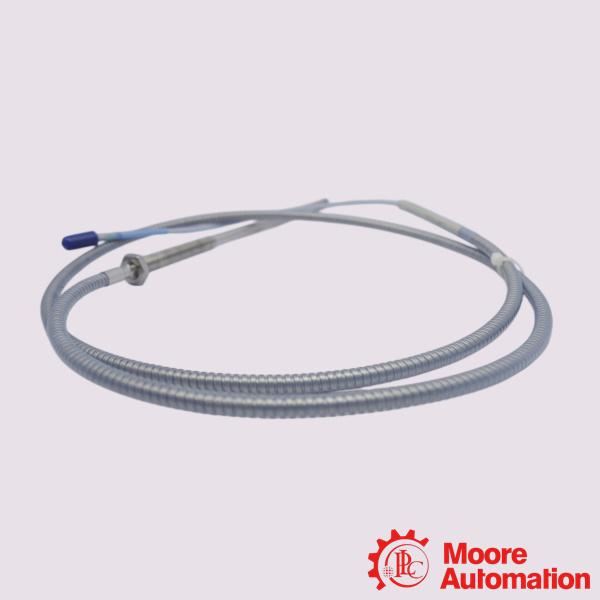

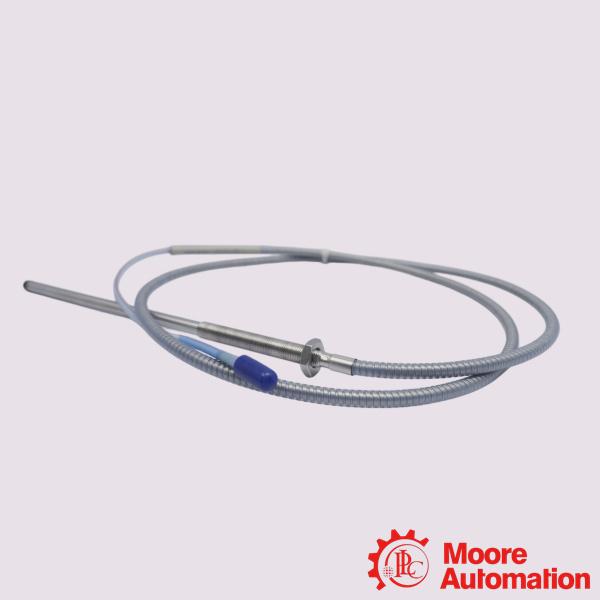

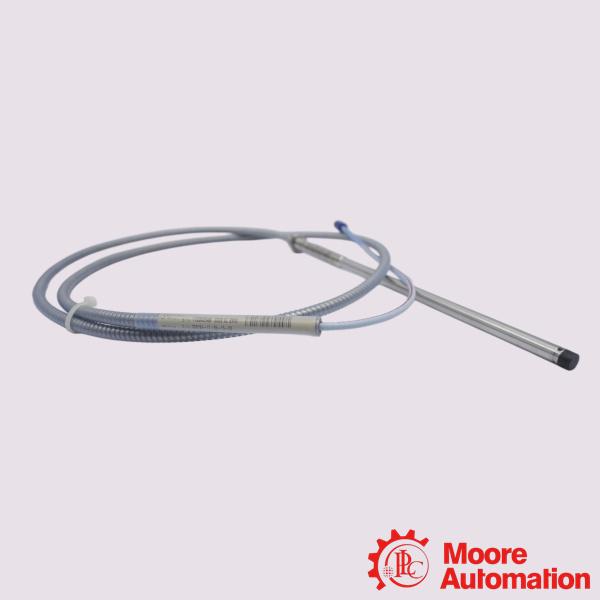

Bently Nevada 330194-13-20-10-00 3300 XL 8 mm Extended Temperature Range Proximity Probes
| Mfr. Part Number: |
3330194-13-20-10-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330194-13-20-10-00 is a 3300 XL 8 mm Extended Temperature Range (ETR) Proximity Probe designed for non-contact vibration and displacement monitoring in heavy rotating machinery.The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
Application:
Oil & Gas / Petrochemicals: Monitoring critical turbomachinery such as centrifugal compressors, process gas compressors, and turboexpanders in refineries and offshore platforms.
Power Generation: Protecting large steam turbines, gas turbines, water turbines, generators, and exciters in nuclear, thermal, and hydroelectric plants.
Chemical Processing: Tracking high-speed pumps, mixers, and fans handling volatile or hazardous process gases.
Heavy Manufacturing & Metallurgy: Monitoring massive gearboxes, cooling tower fans, and air compressors in steel and paper mills.
Frequently Asked Questions (FAQ)
Q:What are the electrical output characteristics?
A:The system utilizes eddy current technology. When paired with a matching 3300 XL Proximitor Sensor, it features a linear range of 2.0 mm (80 mils) and standard sensitivity of 7.87 mV/µm (200 mV/mil).
Q:What is the correct gap voltage during installation?
A:When the probe is properly gapped from the targeted steel shaft, the standard electrical baseline voltage (gap voltage) should read around −9 to −11 V DC.
Q:How do I choose a matching extension cable?
A:Because the probe length is 1.0 meter (indicated by the -10 option), you must use a 9.0-meter extension cable to achieve the mandatory 10.0-meter overall system tuning length required by the Proximitor sensor.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330194-13-20-10-00 |
|
Unthreaded Length Option |
130 mm |
|
Overall Case Length Option |
200 mm |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Output Resistanc |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST). |
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
Agency Approval Option |
Not required |
|
