Product Description:

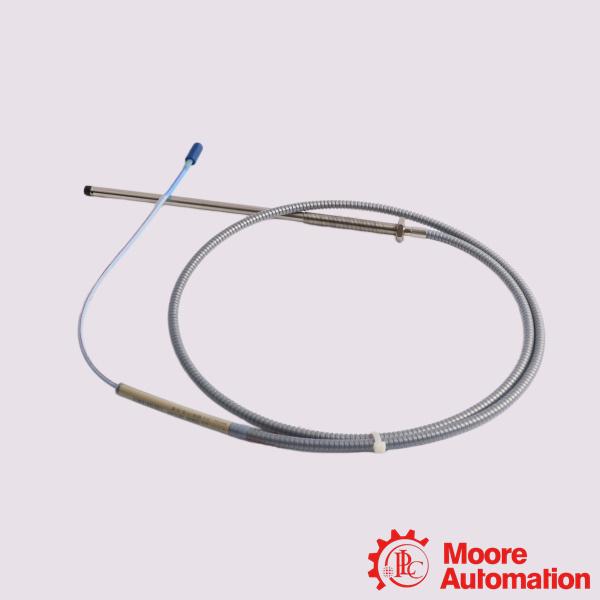

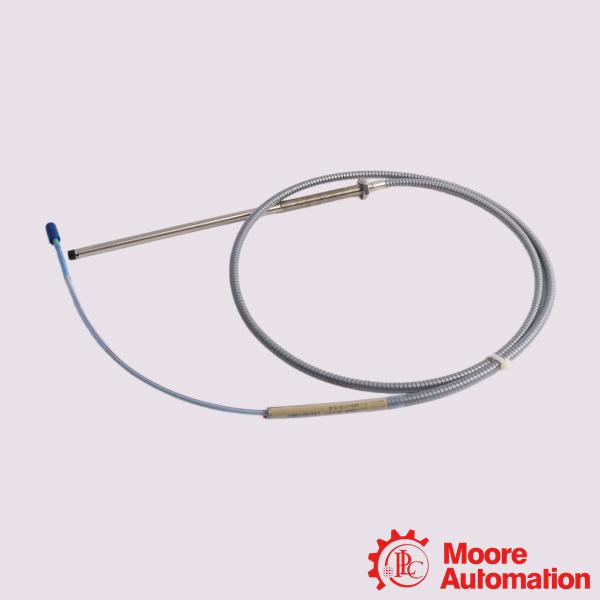

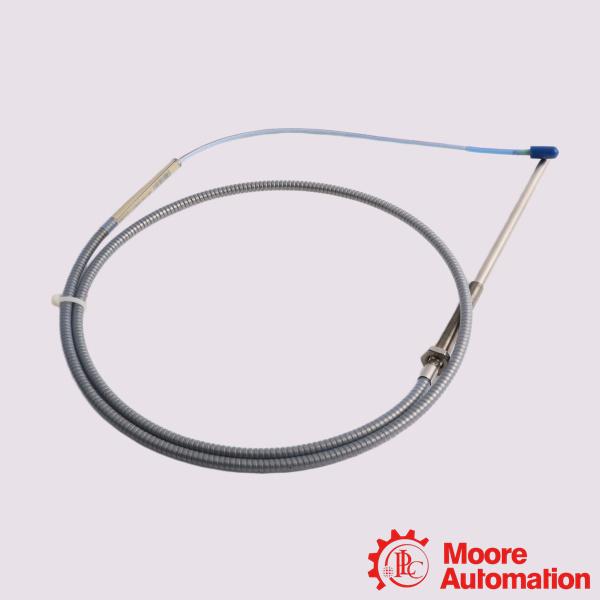

The Bently Nevada 330194-10-24-50-CN is an armored M10x1 metric thread 3300 XL 8mm Proximity Probe, serving as a critical hardware component for predictive maintenance and machinery protection systems. This eddy-current transducer targets large and medium-sized rotating machinery operating under extreme environmental stresses across heavy industries.The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

Frequently Asked Questions (FAQ)

Q:What is the typical gap voltage setting for installation?

A:When mounting and setting the physical physical gap relative to the target shaft, the target normal gap voltage should ideally be set around −9 V to −11 V DC using a Proximitor sensor loop output.
Q:What is the standard target material calibration for this probe?
A:By default, Bently Nevada proximitor systems are factory-calibrated to AISI 4140 steel. If your machine rotor shaft is made from a different alloy (such as stainless steel or Inconel), the system will require custom recalibration or a correction factor applied at the monitoring module.

Q:Why does this model include integral armor?
A:The "94" variant specifies a built-in, flexible AISI 302 or 304 stainless steel armor sleeve with a protective FEP outer jacket. This armor shields the fragile triaxial cable from physical pinching, abrasion from target counterbores, and aggressive industrial fluids.
