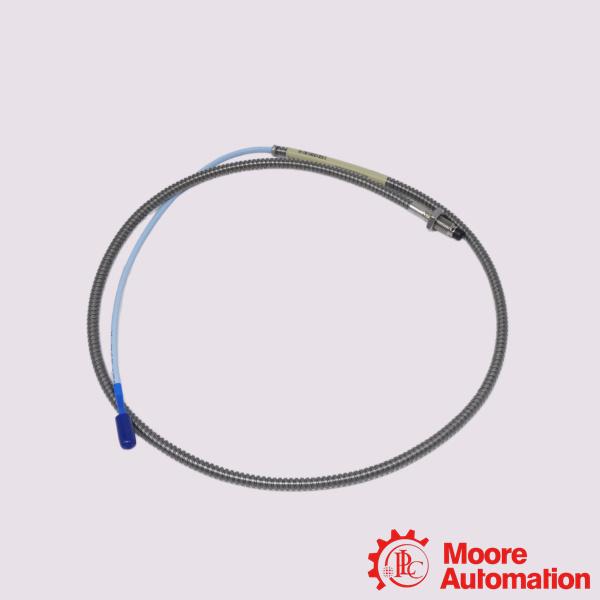

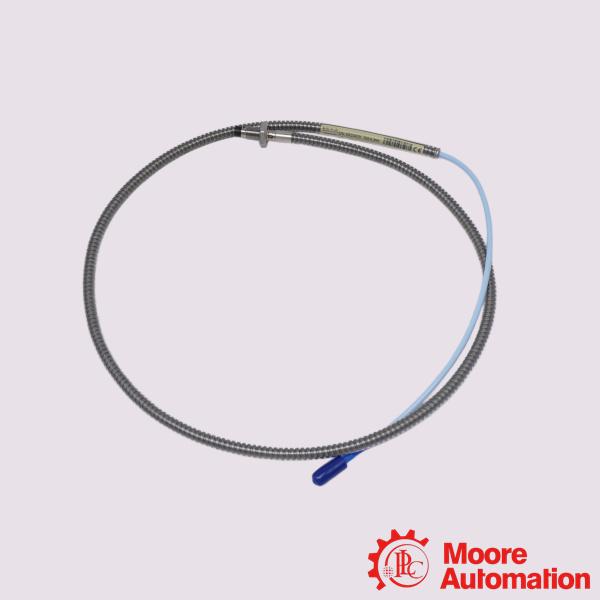

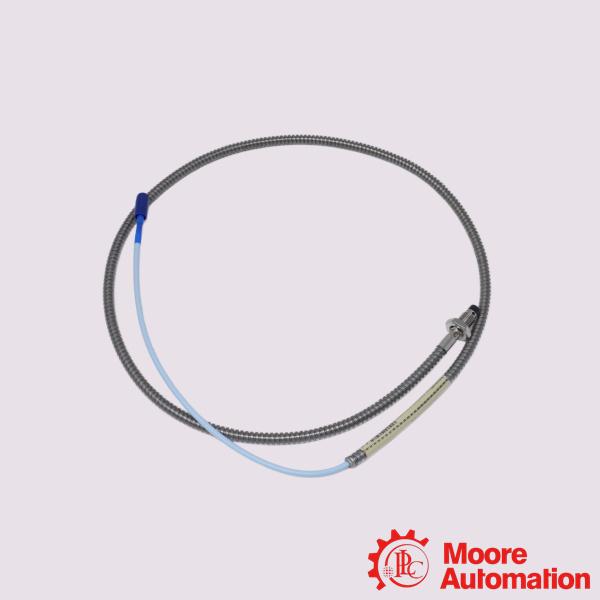

330104-05-14-50-01-05 | Bently Nevada 3300 XL 8 mm Probe

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.8x1.5x113cm
Weight:
0.14kg
Country of Origin: :
USA
Description:
Bently Nevada 330104-05-14-50-01-05 3300 XL 8 mm Probe

Inquiry now

Mfr. Part Number:	330104-05-14-50-01-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330104-05-14-50-01-05 3300 XL 8 mm Probe

Full Description:	The Bently Nevada 330104-05-14-50-01-05 3300 XL 8 mm Probe provides an accurate, stable signal output over a wide temperature range.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 330104-05-14-50-01-05 3300 XL 8 mm Probe provides an accurate, stable signal output over a wide temperature range. All 3300 Proximity Transducer Systems achieve this level of performance while allowing complete interchangeability of probe, extension cable, and Proximitor® Sensor without the need for individual component matching or bench calibration.

Application:

Steel and Mining Facilities: Monitors ventilation fans, massive gearboxes, and grinding mill drivetrains exposed to extreme grit and heat.
Pulp & Paper Mills: Installed on large dryer section bearings, refiners, and high-speed processing rolls.
Centrifugal and Axial Compressors: Measures high-frequency radial vibration and thrust bearing wear during high-pressure gas transport.
Generators: Tracks shaft vibration levels and phase reference metrics to diagnose electrical or mechanical unbalance.

Frequently Asked Questions (FAQ)

Q:What is the primary purpose of this probe?
A:It is an eddy-current sensor designed to measure static displacement (position) and dynamic displacement (vibration). It targets fluid-film bearing machinery components, such as shaft vibration, thrust position, and Keyphasor reference measurements.
Q:What is the standard system scale factor?
A:When paired with a matching 3300 XL Proximitor Sensor, it provides a standard scale factor of 7.87 V/mm (200 mV/mil). The system's linear measurement range covers up to 2.0 mm (80 mils).

Q:Can this 5.0-meter probe be extended with any cable?
A:No, it must be matched to form a complete system length. Because this specific probe option (-50) features an integrated 5.0-meter total length, it is designed to connect directly to a 5.0-meter Proximitor Sensor without any additional extension cable.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330104-05-14-50-01-05
Unthreaded Length Option	50 mm
Overall Case Length Option	140 mm
Total Length Option	5.0 metres (16.4 feet)
Connector Option	Miniature coaxial ClickLoc connector with connector
Agency Approval Option	Multiple Approvals
Standard cable	75 Q triaxial
Probe Tip Material	Polyphenylene sulfide
Frequency Response	0 to 10 kHz
Probe Tip Diameter	11 mm
