330101-00-50-15-02-05 | Bently Nevada 3300 XL 8 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.5x1.3x111cm
Weight:
0.1kg
Country of Origin: :
USA
Description:

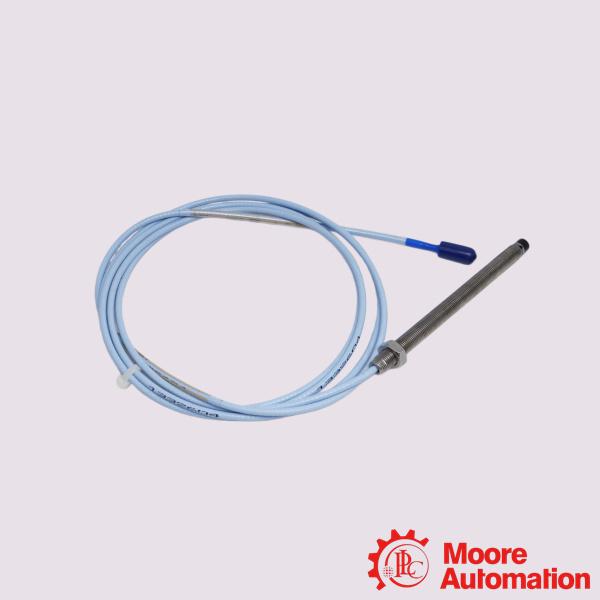

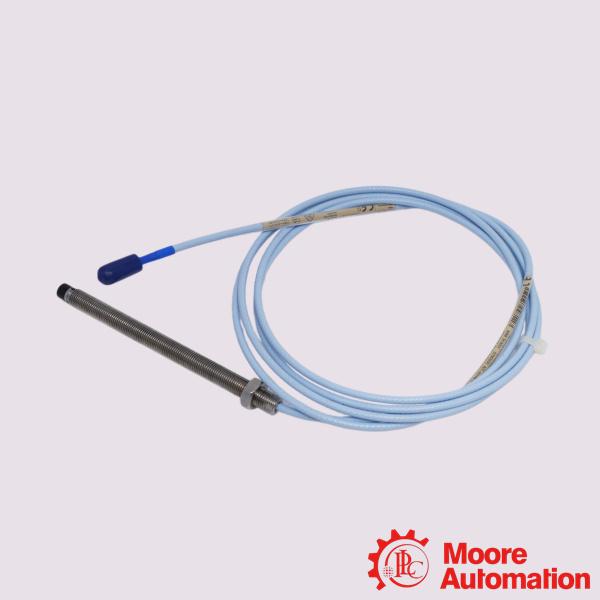

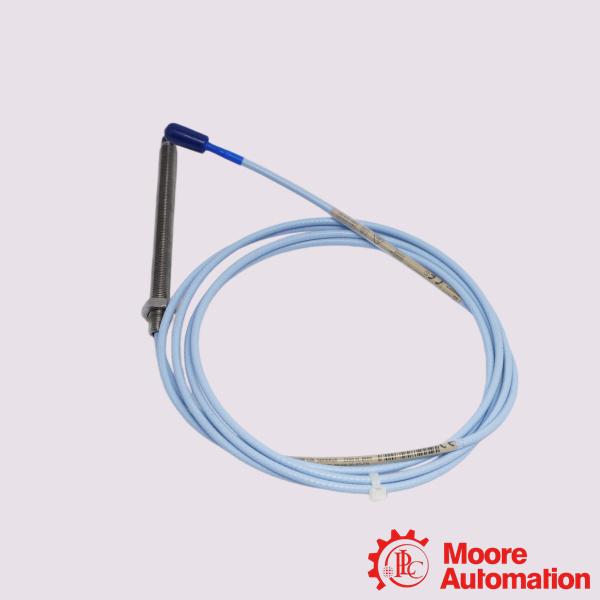

Bently Nevada 330101-00-50-15-02-05 3300 XL 8 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330101-00-50-15-02-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330101-00-50-15-02-05 3300 XL 8 mm Proximity Probes

Full Description:	The 330101-00-50-15-02-05 provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330101-00-50-15-02-05 provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface. It is capable of both static (position) and dynamic (vibration) measurements, and is primarily used for vibration and position measurement applications on fluid-film bearing machines, as well as Keyphasor® and speed measurement applications.

Application:

Steam and Gas Turbines: Monitors continuous radial vibration and axial thrust position of the main rotor shaft.
Generators: Tracks shaft displacement and thermal expansion alignment inside large power generation units.
Boiler Feedwater Pumps: Safeguards high-pressure fluid-film bearing pumps from unexpected breakdowns.
Large Compressor Units: Measures structural vibration and shaft movement in multi-stage centrifugal and reciprocating gas compressors.

Frequently Asked Questions (FAQ)

Q:What does this sensor measure?
A:The probe continuously measures the distance (gap) between its tip and a rotating shaft. The paired Proximitor sensor converts this distance into a proportional voltage signal (7.87 V/mm or 200 mV/mil) to measure radial vibration, axial position (thrust), speed, or phase reference (Keyphasor).
Q:What are the design benefits of ClickLoc connectors?
A:The 02 option specifies gold-plated brass ClickLoc connectors. These are designed to be finger-tightened until they click, preventing them from loosening over time due to machine vibration without requiring special tools.

Q:What are its temperature limitations?
A:The probe head and standard cable are designed to operate reliably within a temperature envelope of -35°C to +200°C (-31°F to +392°F) for extended periods.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330101-00-50-15-02-05
Unthreaded Length Option	0.0 in
Overall Case Length Option	5.0 in
Total Length Option	1.5 metre (4.9 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLocTM connector, standard cable
Agency Approval Option	Multiple Approvals
Probe Tip Diameter	5 mm
Probe Length	50 mm
Cable Length	15 feet (4.57 meters)
Thread Size	M10x1
Temperature Range	-35°C to +177°C
Frequency Response	High sensitivity to vibration frequencies
