330104-05-12-05-02-05 | Bently Nevada 3300 XL 8 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.8x1.5x113cm
Weight:
0.14kg
Country of Origin: :
USA
Description:

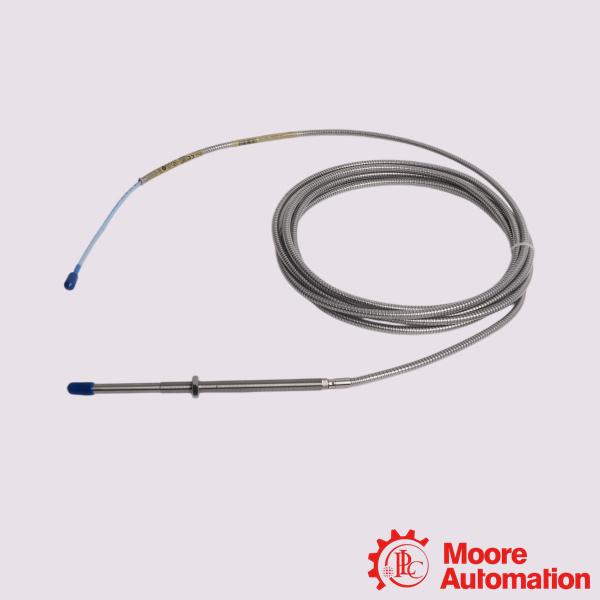

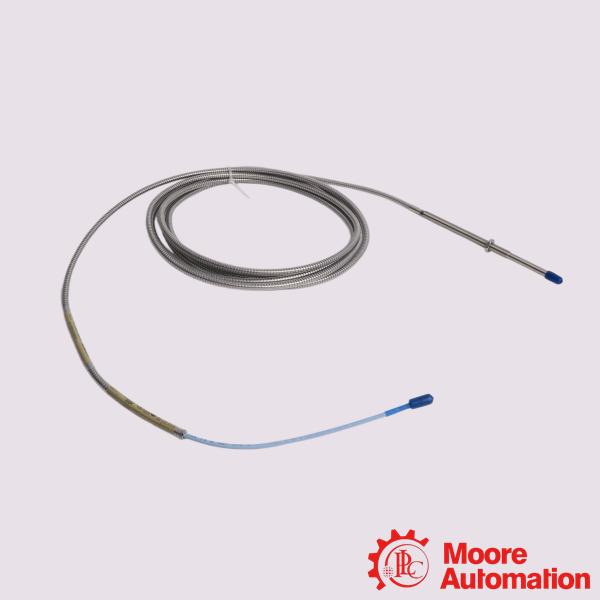

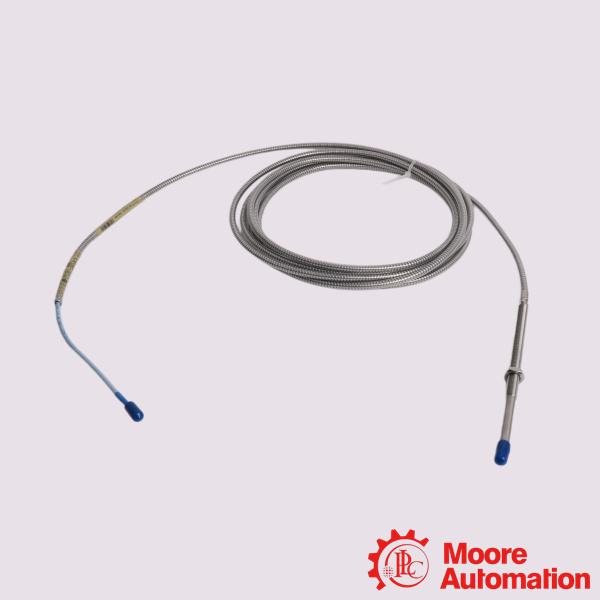

Bently Nevada 330104-05-12-05-02-05 3300 XL 8 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330104-05-12-05-02-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330104-05-12-05-02-05 3300 XL 8 mm Proximity Probes

Full Description:	The Bently Nevada 330104-05-12-05-02-05 3300 XL 8 mm Proximity Probes provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 330104-05-12-05-02-05 3300 XL 8 mm Proximity Probes provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

Application:

Oil & Gas / Petrochemical: Used on critical process gas compressors, mud pumps, and refinery turbomachinery.
Power Generation: Installed inside gas and steam turbines, as well as hydro-generators, to track rotor health.
Chemical Processing: Monitoring high-speed centrifugal air and refrigeration compressors.
Pulp, Paper, and Steel Mills: Protecting heavy-duty fans, blowers, and rollers operating under high loads.

Frequently Asked Questions (FAQ)

Q:What target materials is this sensor designed to monitor?
A:By default, Bently Nevada 3300 XL Proximitor Sensors are factory-calibrated to AISI 4140 steel. Using the sensor on other conductive target materials will alter the scale factor and compromise accuracy unless specifically re-calibrated.
Q:What type of connector does this probe use?
A:It comes with a gold-plated, corrosion-resistant ClickLoc coaxial connector. This feature requires only finger-tight torque, clicking into place to secure the connection dynamically without needing specialized tools.

Q:What are the environmental and temperature limits?
A:The probe tip is constructed from Polyphenylene Sulfide (PPS) and stainless steel, supporting an operational temperature range of -52 °C to +177 °C (-62 °F to +350 °F).

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330104-05-12-05-02-05
Unthreaded Length Option	50 mm
Overall Case Length Option	120 mm
Total Length Option	0.5 meter (1.6 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	CSA, ATEX, IECEx Approvals
