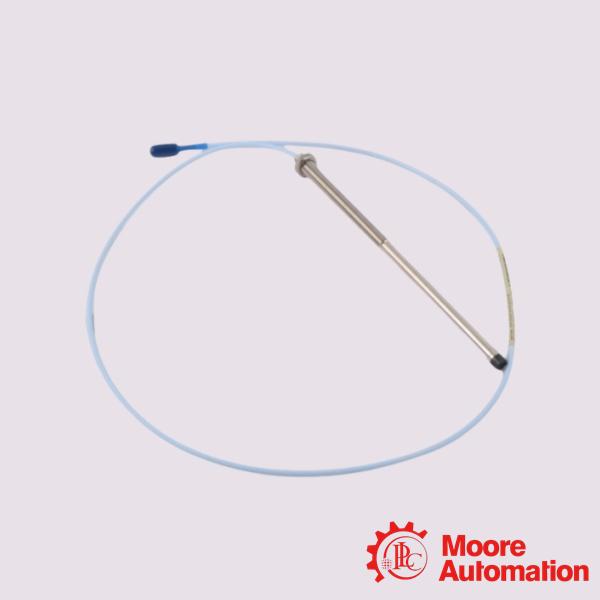

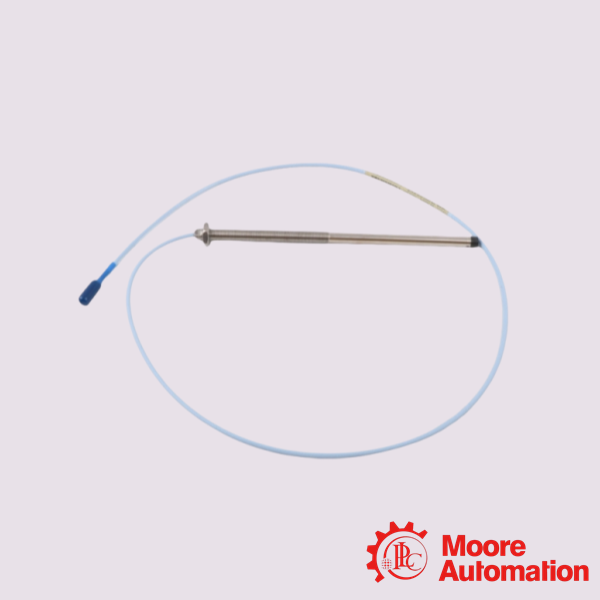

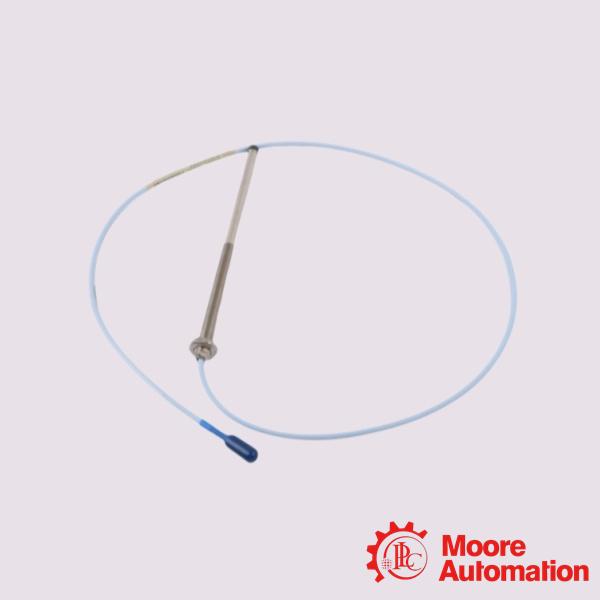

330103-10-15-10-02-05 | Bently Nevada 3300 XL 8 mm Proximity Probes

Description

The 330103-10-15-10-02-05 is a reverse-mounted probe, specifically configured with a total system length of 1.0 meter and ATEX/IECEx explosion-proof certification. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Parameter

A: Unthreaded Length Option
10: 100 mm
B: Overall Case Length Option
15: 150 mm
C: Total Length Option
10: 1.0 meter (3.3 feet)
D: Miniature coaxial ClickLoc connector, standard cable
02: 1.0 meter (3.3 feet)
E:  Agency Approval Option
05: CSA, ATEX, IECEx  Approvals

Frequently asked questions

What is the working principle of 330103-10-15-10-02-05?
The high-frequency coil inside the probe tip generates an alternating magnetic field. When a metallic shaft surface approaches, it induces eddy currents on the surface, changing the coil's impedance. This change is converted into a voltage signal by the Proximitor.

How do you use the "Reverse Mount" feature of 330103-10-15-10-02-05?
Instead of being screwed directly from the outside, it is typically inserted from the inside of the machine or the reverse side of a specialized bracket. It has 3/8-24 threads at the rear of the case to secure it inside a reverse mount housing or sleeve.

What cable and Proximitor should be paired with 330103-10-15-10-02-05?
Since its own total length is 1.0 meter, to form a standard 5-meter system, you need to pair it with a 4.0-meter extension cable and a 5-meter type 3300 XL Proximitor Sensor.

Application areas:
Power Generation Industry: Used in large coal-fired or nuclear power plants to monitor the shaft vibration of main steam turbines in real-time, preventing rotor-to-stator rub.

Steel & Metallurgical Industry: Installed on the sleeve bearings of blast furnace blowers in steel plants to continuously monitor journal vibration, ensuring uninterrupted air supply to the furnace.

Hydroelectric Power Industry: Used in large hydropower stations with massive, low-speed shafts to measure water turbine shaft runout and evaluate hydraulic unbalance.
