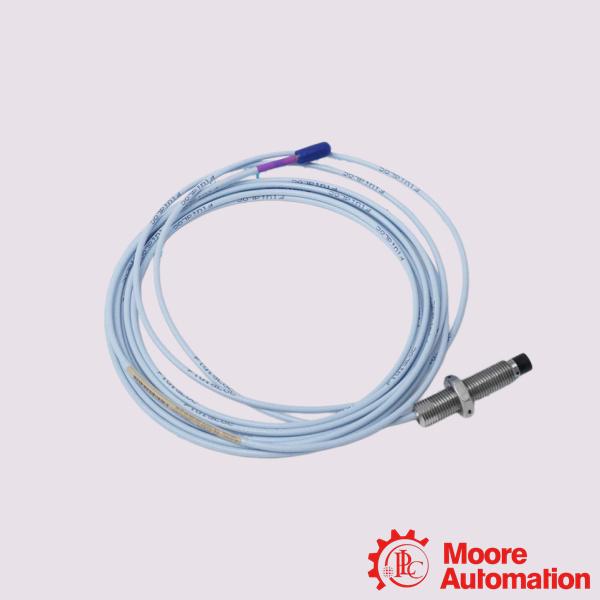

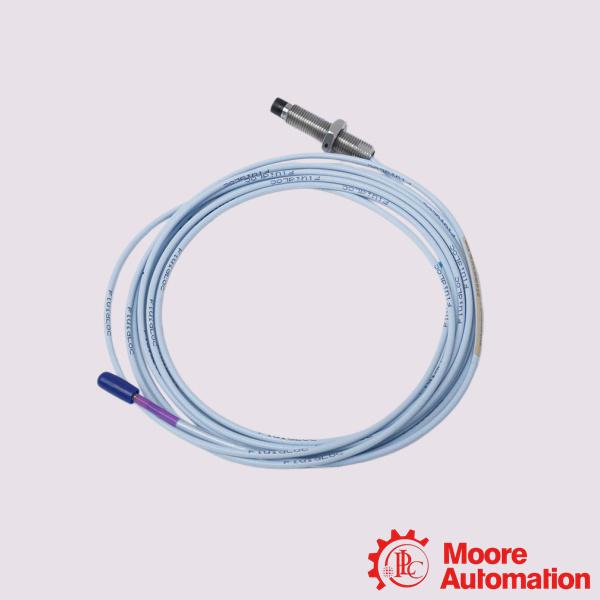

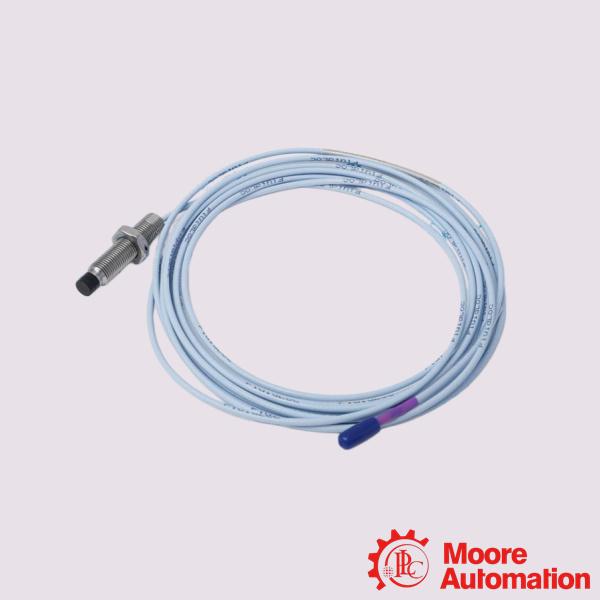

330101-00-80-10-02-00 | Bently Nevada 3300 XL 8 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.5x1.3x111cm
Weight:
0.1kg
Country of Origin: :
USA
Description:
Bently Nevada 330101-00-80-10-02-00 3300 XL 8 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330101-00-80-10-02-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330101-00-80-10-02-00 3300 XL 8 mm Proximity Probes

Full Description:	The Bently Nevada 330101-00-80-10-02-00 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330101-00-80-10-02-00 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

Application:

Power Generation: Thermal, hydroelectric, and nuclear power stations.
Oil and Gas: Upstream exploration, midstream pipelines, and downstream refining.
Petrochemicals: Maintaining continuous production lines.
Heavy Industry: Mining, steel, pulp and paper, and chemical processing.

Frequently Asked Questions (FAQ)

Q:What system components are required?
A:To operate, this probe must connect to a 3300 XL extension cable and a 3300 XL Proximitor Sensor.
Q: Can I use a 5-meter system configuration?
A:No. Since the probe itself has a 1.0-meter total length, it must be paired with a 4.0-meter extension cable to work with a standard 5-meter Proximitor Sensor, or a 8.0-meter extension cable for a 9-meter Proximitor Sensor.

Q:What are the environmental limits?
A:The probe head and cable handle an operating temperature range from -51 °C to +177 °C (-60 °F to +351 °F).

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330101-00-80-10-02-00
Unthreaded Length Option	0.0 in
Overall Case Length Option	8.0 in.
Total Length Option	1.0 meter (3.3 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	Not required
Output Resistance	50 Ω
Extension Cable Capacitance	69.9 pF/m (21.3 pF/ft) typical
