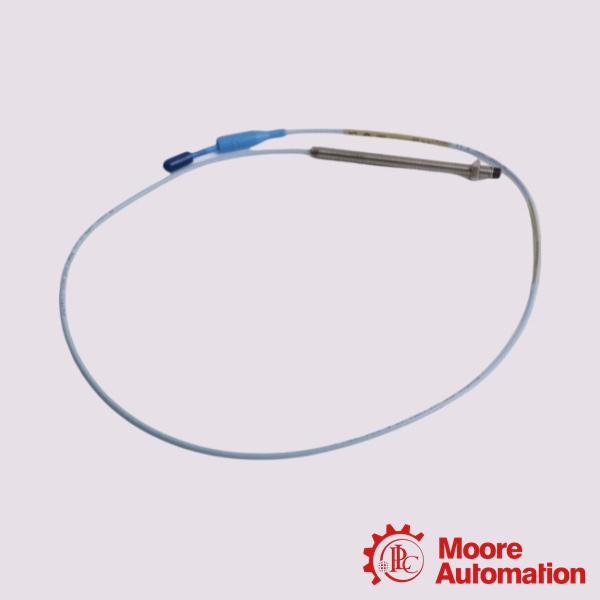

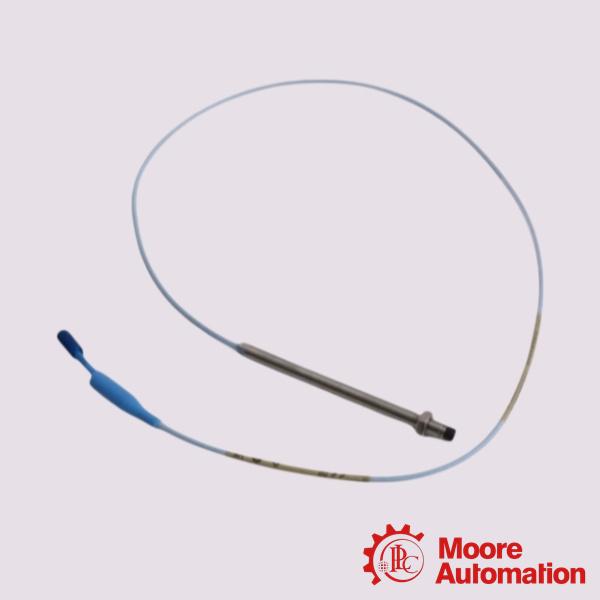

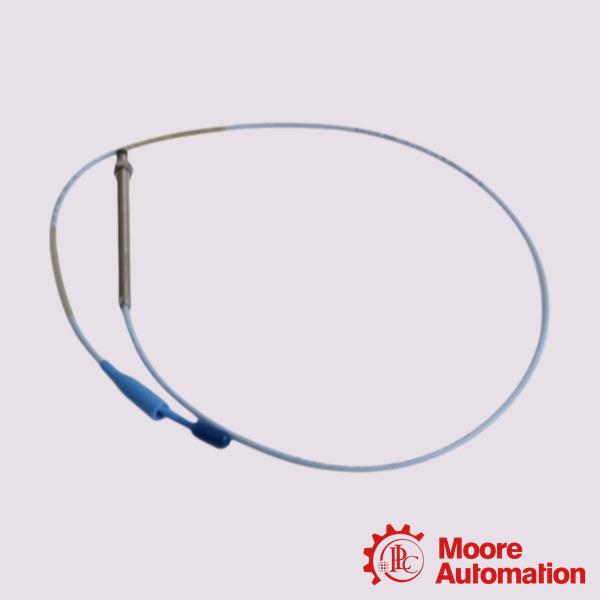

330101-00-50-10-01-00 | Bently Nevada 3300 XL 8 mm Proximity Probes

Description

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Parameter

330101：3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor

A: Unthreaded Length Option
Minimum unthreaded length: 0.0 in
B: Overall Case Length Option
Minimum case length: 5.0 in
C: Total Length Option
10 1.0 meter (3.3 feet)
D: Connector and Cable-Type Option
01 Miniature coaxial ClickLoc connector with connector protector,standard cable
E: Agency Approval Option
00 Not required

Main Features
Outstanding mechanical stability: The probe head (the black plastic part) is securely bonded to the metal housing through a special molding process, resulting in extremely high strength.
Advanced connection and anti-corrosion: The surface of the connector is gold-plated, providing extremely strong resistance to oxidation and corrosion.
Strong environmental adaptability: The working temperature range covers -51 °C to +177 °C, enabling it to withstand various harsh conditions ranging from extremely cold outdoor environments to high-temperature bearing boxes.
Resistant to oil and corrosion: Using FEP insulated cables, it can be immersed in lubricating oil or synthetic oil for a long time without deteriorating or becoming brittle.

Frequently asked questions

What is 330101-00-50-10-01-00?
330101-00-50-10-01-00 is a 3300 XL 8 mm Probe.

How durable is the 330101-00-50-10-01-00 module?
This Bently Nevada 330101-00-50-10-01-00 probe is widely recognized in the industrial field as having "tank-level" durability. It is specifically designed for extreme industrial environments and, as long as the installation is in accordance with specifications, it can typically operate stably for more than 10 years.

How to install this 330101-00-50-10-01-00 module?
Insert the probe into the threaded hole of the mounting bracket or the machine casing until the front end of the probe gently touches the shaft surface. Starting from the contact point, rotate the probe in the reverse direction for approximately 1.25 turns (for 3/8-24 threads, each turn is approximately 1.06 mm). Connect the probe to the extension cable and the preamplifier, and power on the system.

Application areas:
Oil and gas: Monitoring the operating conditions of core rotating equipment.
Electric power industry: Ensuring the continuous operation of power generation units is crucial.
Petrochemical industry: Monitoring the eccentricity and vibration of the stirring shaft.
Metallurgy and mining: Monitoring the operating status of large reducers and heavy bearings.
Papermaking and water treatment: Vibration analysis of high-speed rotating components of paper machines, axial protection of large water pumps.
