330101-00-46-10-02-05 | Bently Nevada 3300 XL 8 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
20x20x2cm
Weight:
0.2kg
Country of Origin: :
USA
Description:

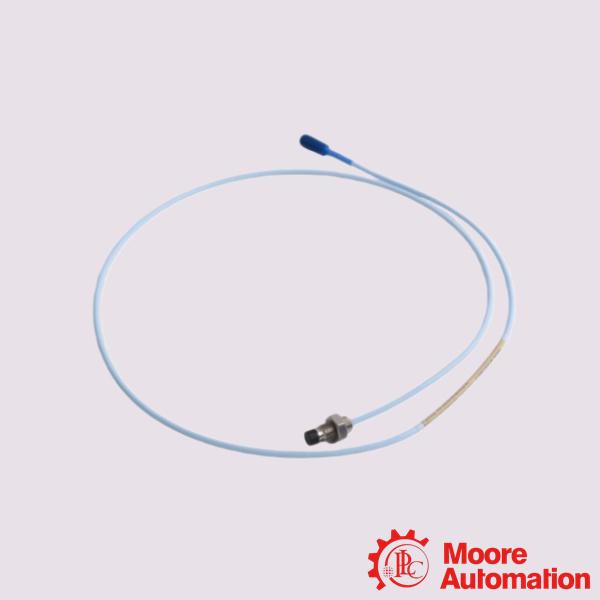

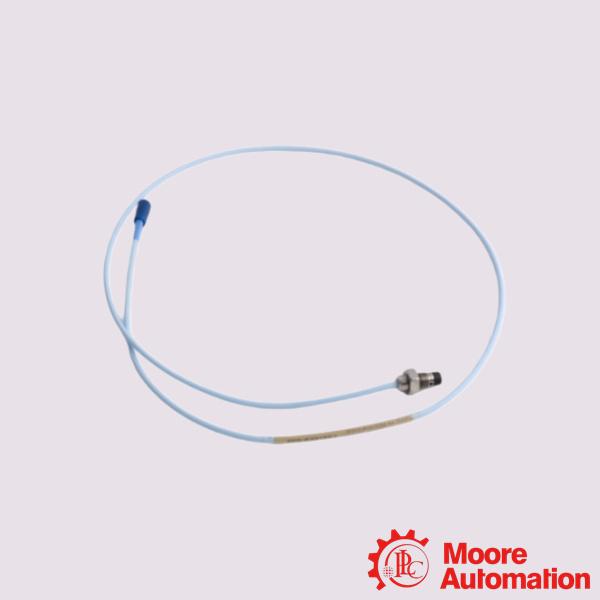

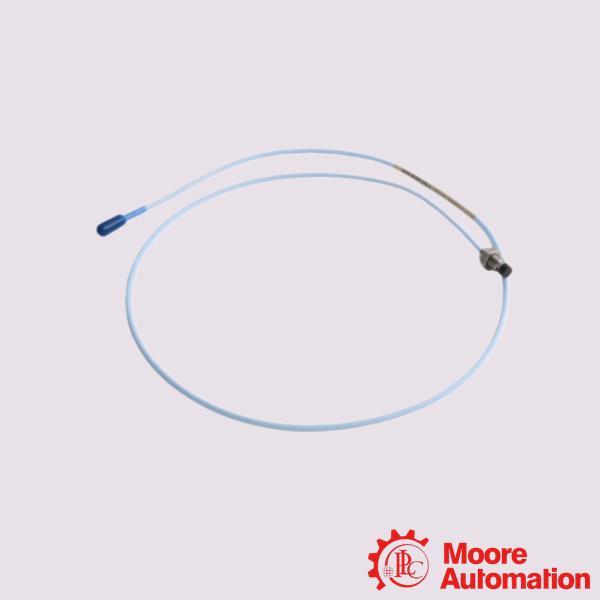

Bently Nevada 330101-00-46-10-02-05 3300 XL 8 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330101-00-46-10-02-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330101-00-46-10-02-05 3300 XL 8 mm Proximity Probes

Full Description:	The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330101-00-46-10-02-05 3300 XL 8 mm Proximity Probes provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

Application:

Steam and Gas Turbines: Tracks extreme radial vibration and axial thrust position on the main turbine shafts to trigger automated protective trip loops.
Generators: Monitors bearing oil-film health and rotor dynamic movement during high-load power production.
Cooling Tower Fans: Measures shaft vibration to catch gearbox faults before catastrophic blade shedding occurs.
Industrial Electric Motors: Monitors drive shafts on heavy-duty mill motors, fans, and shredders.

Frequently Asked Questions (FAQ)

Q:What type of systems require this specific probe?
A:It is primarily used in eddy current proximity transducer setups to track the health of high-speed fluid-film bearing machines like steam turbines, compressors, pumps, and massive electric motors.
Q:Can I connect this 1.0-meter probe directly to a monitor rack?
A:No. Proximity sensors require a matching total electrical length to operate properly. A 1.0-meter probe must be combined with a 4.0-meter extension cable to interface with a standard 5-meter Proximitor Sensor. Alternatively, it can be paired with an 8.0-meter cable for a 9-meter Proximitor system.

Q:What is the standard measurement sensitivity?
A:When used with a complete 3300 XL system, it delivers a nominal output sensitivity of 200 mV/mil (7.87 V/mm) over a linear range of 2.0 mm (80 mils), calibrated by default to AISI 4140 steel targets.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330101-00-46-10-02-05
Unthreaded Length Option	0.0 in.
Overall Case Length Option	4.6 in.
Total Length Option	1.0 meter (3.3 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	CSA, ATEX, IECEx Approvals
Output Resistance	50 Ω
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
Standard Probe	-52°C to +177°C (-62°F to +350°F)
