in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
110x1.5x1.2cmWeight:
0.04kgCountry of Origin: :
USADescription:

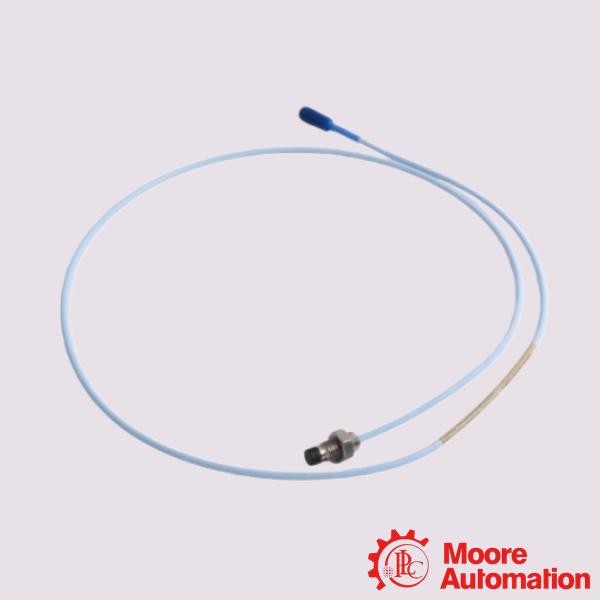

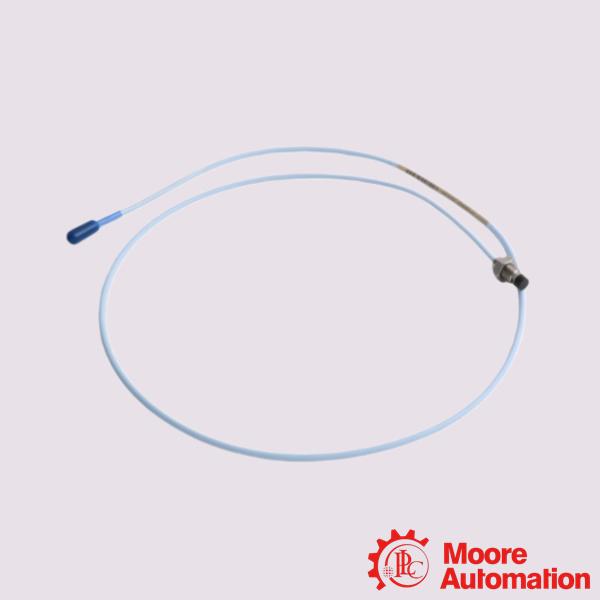

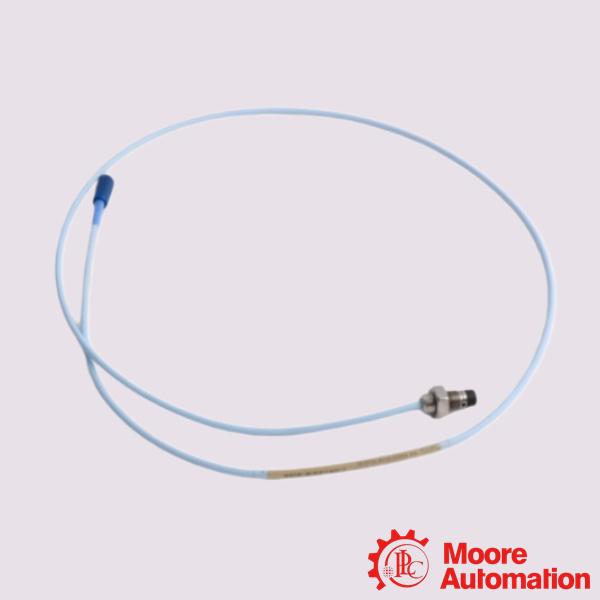

Bently Nevada 330101-00-15-20-02-05 3300 XL 8 mm Proximity Probes
| Mfr. Part Number: |
330101-00-15-20-02-05 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330101-00-15-20-02-05 is a high-precision 3300 XL 8 mm Proximity Probe for non-contact vibration, phase reference, and shaft position measurements. It is primarily deployed in heavy manufacturing plants, power generating facilities, and industrial automation networks to prevent catastrophic machinery failure. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Application:
Water & Wastewater Treatment: Used in massive water transport pump stations to monitor shaft displacement and track asset health.
Centrifugal and Axial Compressors: Vital for tracking high-speed shafts prone to aerodynamic surges and misalignment.
Main Oil Export Pumps: Ensures multi-stage heavy pumps run smoothly without bearing degradation.
Large Industrial Pumps: Deployed on massive cooling water and feed pumps to detect early signs of cavitation, shaft misalignment, or bearing wear.
Frequently Asked Questions (FAQ)
Q:What mounting bracket is recommended?
A:Aluminum threaded mounting bracket (137492-AA) is standard. Use phenolic bracket (27474-AA) for electrical isolation applications.
Q:Does it meet API 670?
A:Yes. The 3300XL 8mm system fully complies with API 670 for mechanical configuration, linear range, accuracy, and temperature stability.
Q:What Proximitor sensor does this probe pair with?
A:Use with 5-meter Proximitor sensor (330180-50-XX). The extension cable (330130) determines total system length.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330101-00-15-20-02-05 |
|
Unthreaded Length Option |
0.0 in. |
|
Overall Case Length Option |
1.5 in. |
|
Total Length Option |
2.0 meters (6.6 feet) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Output Resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST). |
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
Agency Approval Option |
CSA, ATEX, IECEx Approvals |
|
