in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
37x9x8cmWeight:
1.5kgCountry of Origin: :
USADescription:

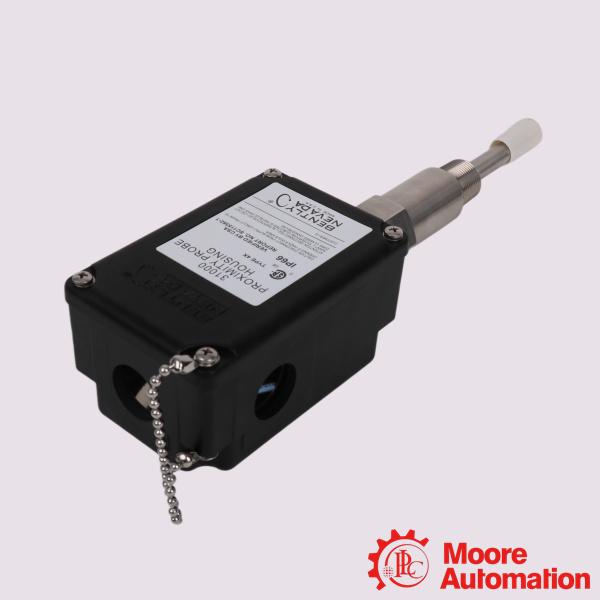

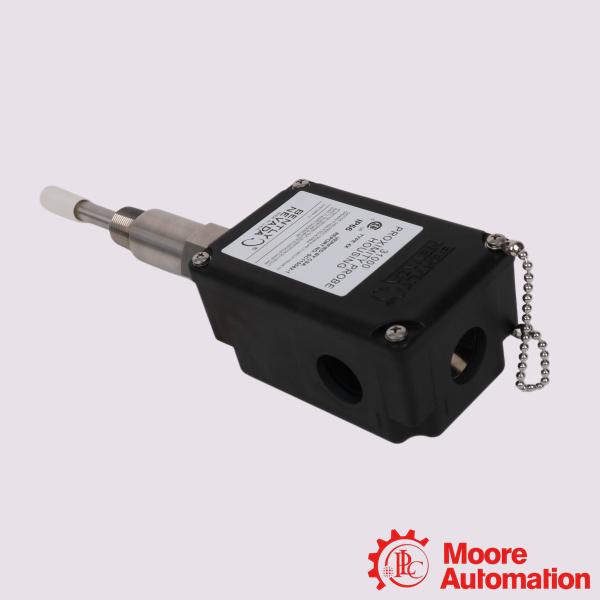

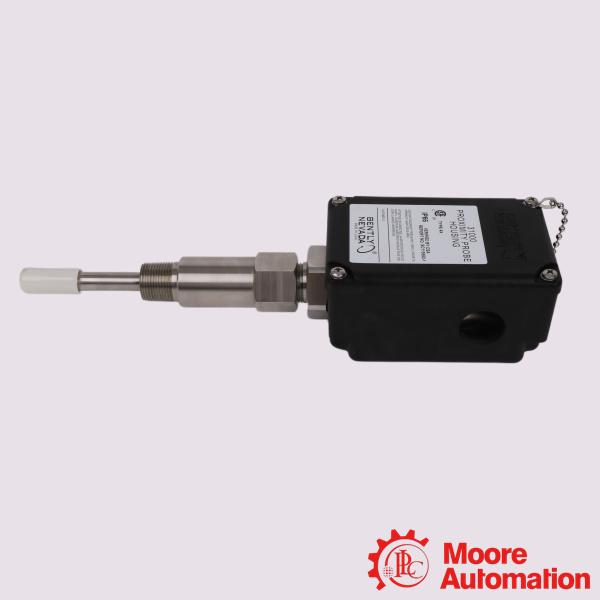

Bently Nevada 31000-28-05-00-024-03-02 Proximity Probe Housing Assemblies
| Mfr. Part Number: |
31000-28-05-00-024-03-02 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 31000/32000 Proximity Probe Housing Assemblies are
recommended when mounting proximity probes through the
machine case and are typically used for radially mounted
transducers, whether vibration or Keyphasor measurements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 31000-28-05-00-024-03-02 is a specialized, explosion-proof Proximity Probe Housing Assembly designed to protect and position a 3300 XL 8 mm proximity probe. It is used for non-contact shaft vibration and displacement measurements on large rotating industrial machinery like gas and steam turbines.The 31000/32000 Proximity Probe Housing Assemblies are recommended when mounting proximity probes through the machine case and are typically used for radially mounted transducers, whether vibration or Keyphasor measurements.Use of a Proximity probe housing allows external access to the proximity probe and its extension cable, permitting gap adjustment or probe replacement without disassembly of the machine.
Application:
Power Generation (Thermal, Gas, and Hydro Plants): Installed on gas and steam turbines, massive generator bearings, and exciter shafts to monitor shaft dynamic motion and thermal expansion.
Oil & Gas (Upstream & Downstream): Deployed on large centrifugal and axial compressors, pipeline turbo-expanders, and high-pressure injection pumps.
Chemical & Petrochemical Processing: Used on process gas compressors, large cooling tower fans, and aggressive chemical pumps prone to mechanical stress.
Mining & Metal Refining: Mounted on heavy-duty blast furnace blowers, air separation compressors, and primary ore crushers.
Frequently Asked Questions (FAQ)
Q:What is the primary purpose of this housing assembly?
A:It allows the proximity probe to be adjusted externally or replaced while the machine is running. The housing provides a robust, weather-proof, and hazardous-area certified dome that seals the electronic connections from harsh industrial environments.
Q:Does this part number include the actual probe?
A:Yes. The 28 probe option explicitly denotes that a Bently Nevada 3300 XL 8 mm probe is included with the shipment. If the part number ended or contained -00 for the probe option, it would mean "housing only, no probe required".
Q:What is the probe penetration depth, and can it be adjusted?
A:The factory setting for this specific configuration is 2.4 inches. However, according to the official Bently Nevada 31000 Datasheet, the sleeve adjustment range allows a field tolerance of ±0.5 inches (13 mm) to fine-tune the exact gap to the target shaft.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：31000-28-05-00-024-03-02 |
|
Probe with Connector |
3300 XL 8 mm probe, multiple approvals |
|
Probe Cable Length |
0.5 m (20 in) |
|
Standoff Adapter Length |
No standoff adapter |
|
Probe Penetration Option |
2.4 in |
|
Mounting Thread Option |
3/4-14 NPT (Required if ordering Standoff Adapter Option). |
|
Operating and storage |
-51°C to +177°C (-60°F to + 351°F) |
|
Sleeve Material and Retaining Chain |
AISI 304 stainless steel |
|
Outer Sleeve and Exterior Screws |
AISI 303 stainless steel |
|
