in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
37x9x8cmWeight:
1.5kgCountry of Origin: :
USADescription:

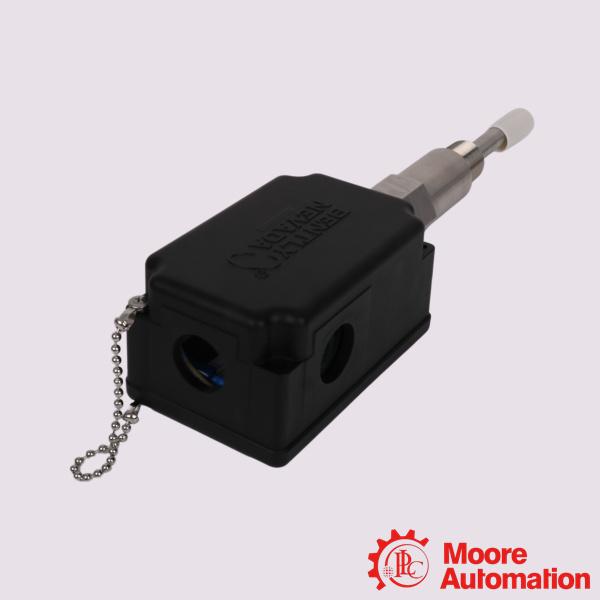

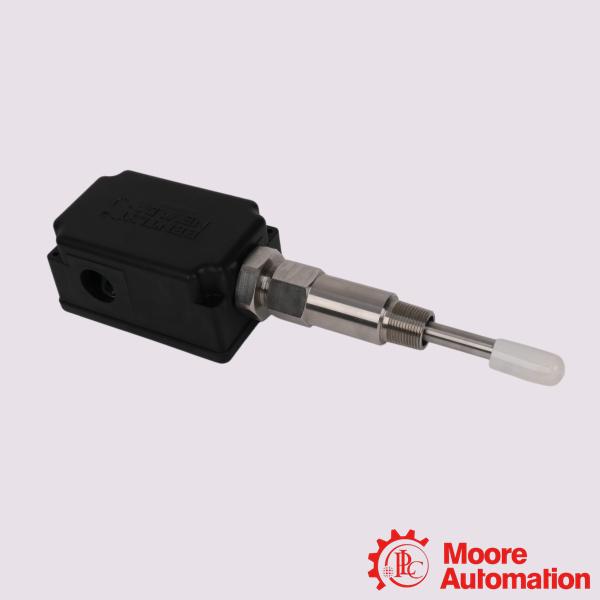

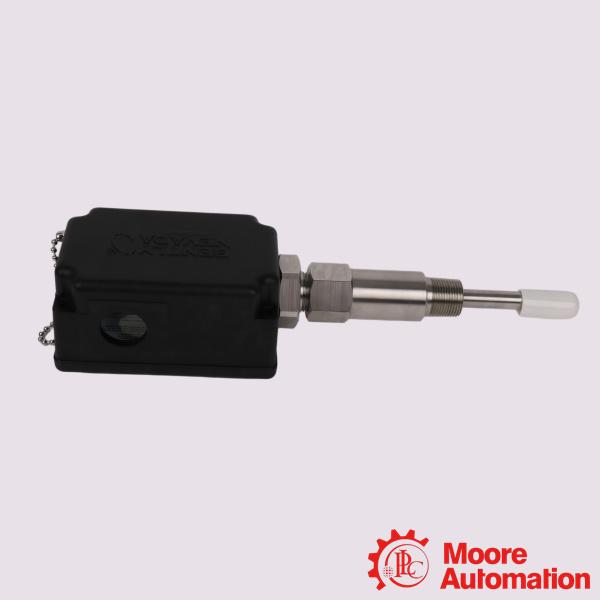

Bently Nevada 31000-16-10-00-104-03-02 Proximity Probe Housing Assemblies
| Mfr. Part Number: |
31000-16-10-00-104-03-02 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 31000/32000 Proximity Probe Housing Assemblies are
recommended when mounting proximity probes through the
machine case and are typically used for radially mounted
transducers, whether vibration or Keyphasor measurements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 31000-16-10-00-104-03-02 is a specialized Proximity Probe Housing Assembly designed to protect an internal 8 mm displacement sensor used for critical machinery condition monitoring. It targets heavy industrial applications requiring continuous vibration, position, and speed measurements on rotating or reciprocating machinery.The 31000/32000 Proximity Probe Housing Assemblies are recommended when mounting proximity probes through the machine case and are typically used for radially mounted transducers, whether vibration or Keyphasor measurements.
Application:
Water & Wastewater Treatment: Installed on high-capacity water distribution pumps and large aeration blower
Radial Vibration: Measuring the dynamic side-to-side motion of a rotating shaft within its fluid-film bearings.
Harsh Environment Protection: The glass-reinforced polyphenylene sulfide (PPS) thermoplastic body features IP66 and NEMA 4X certifications. This protects the sensitive sensor from hose-directed water, dust, and corrosive chemical vapors.
Hazardous Areas: It meets strict electrostatic dissipation standards (such as CSA and CENELEC ratings), making it safe for explosive or highly volatile atmospheres common in chemical processing.
Frequently Asked Questions (FAQ)
Q:Does a 10.4-inch penetration length require extra reinforcement?
A:According to the Bently Nevada 31000 Datasheet, penetration depths exceeding 12 inches (305 mm) require an additional sleeve support near the probe tip to stop mechanical resonance. Because this model is configured for 10.4 inches, standard installation is sufficient unless extreme structural vibration is present
Q:What materials are used to construct this housing?
A:The main housing dome is typically constructed from polyphenylene sulfide (PPS), which is a high-strength, chemical-resistant advanced polymer. The internal sleeve, mounting adapters, and threads are manufactured from rugged Stainless Steel.
Q:What is the primary purpose of this housing assembly?
A:It protects the proximity probe from harsh outdoor environments, mechanical impacts, and hazardous locations. It allows you to replace or adjust the internal probe gap externally from the machine without causing plant downtime or spilling oil.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：31000-16-10-00-104-03-02 |
|
Probe with Connector |
3300 XL 8 mm probe |
|
Probe Cable Length |
1.0 m (39 in) |
|
Standoff Adapter Length |
No standoff adapter |
|
Probe Penetration Option |
10.4 in |
|
Operating and storage |
-51°C to +177°C (-60°F to + 351°F) |
|
Sleeve Material and Retaining Chain |
AISI 304 stainless steel |
|
Outer Sleeve and Exterior Screws |
AISI 303 stainless steel |
|
