Product Description:

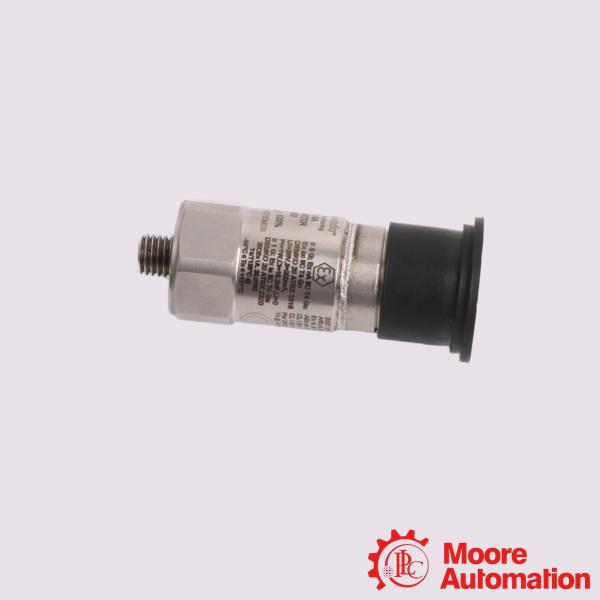

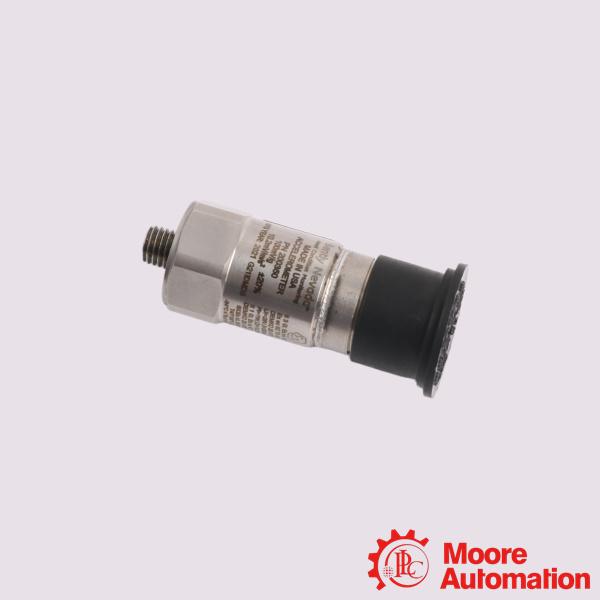

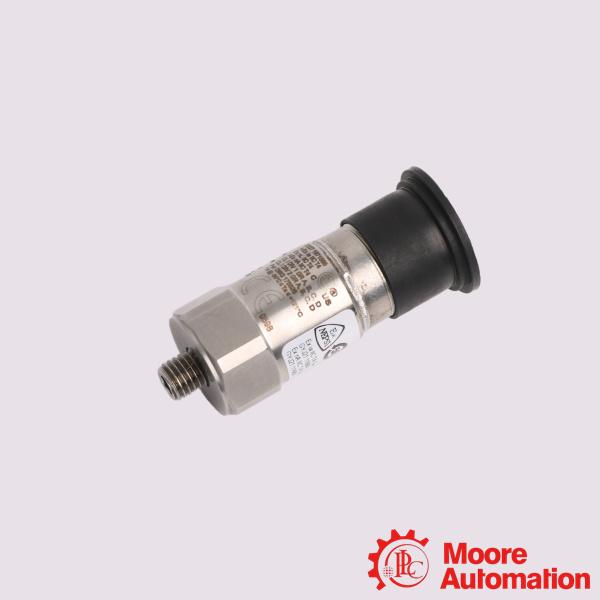

The Bently Nevada 200350-10-00-00 is a case-mounted seismic accelerometer primarily designed for predictive maintenance, condition monitoring, and machine protection.The200350-10-00-00  Accelerometers are contained within a hermetically sealed, stainless steel case. The design provides an extremely rugged transducer, well suited for harsh industrial environments. Each transducer’s top mounted, 2-pin connector (MIL-C5015) allows for easy installation and removal of the interconnecting signal cable. A ¼-28 threaded hole on the bottom of the casing accommodates multiple mounting options. The 200350-10-00-00 Accelerometers contain a piezoelectric sensing device, which generates charge when subjected to vibration. This charge is then converted electronically to a differential voltage signal, which is proportional to the acceleration that is parallel to the sensitive axis of the transducer.

Frequently Asked Questions (FAQ)

Q:What is the proper installation torque?
A:If you are threading the stud directly into the sensor housing, the maximum torque range is 2 to 5 ft-lb (2.7 to 6.8 N⋅m). Exceeding this limit can damage the internal ceramic shear sensing geometry.
Q:How is the sensor mounted?
A:This exact variant (-10) relies on an adhesive pad installation. The casing has a 1/4-28 female mounting thread on the bottom. It attaches to the machinery via an adhesive stud kit (typically containing acrylic adhesive, two-component mixing tools, a scouring pad, and alcohol wipes).

Q:What type of electrical connector does it use?
A:It uses a top-mounted 2-Pin MIL-C-5015 electrical connector. This heavy-duty connection allows you to secure or disconnect signal cables in rough conditions. Standard 22 AWG twisted shielded pair cables are typically recommended
