in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.75 cm × 4.57 cmWeight:
0.058 kgCountry of Origin: :
USADescription:

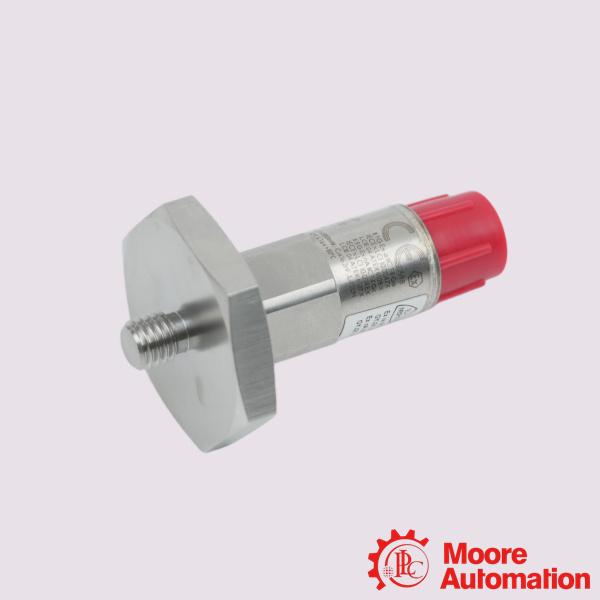

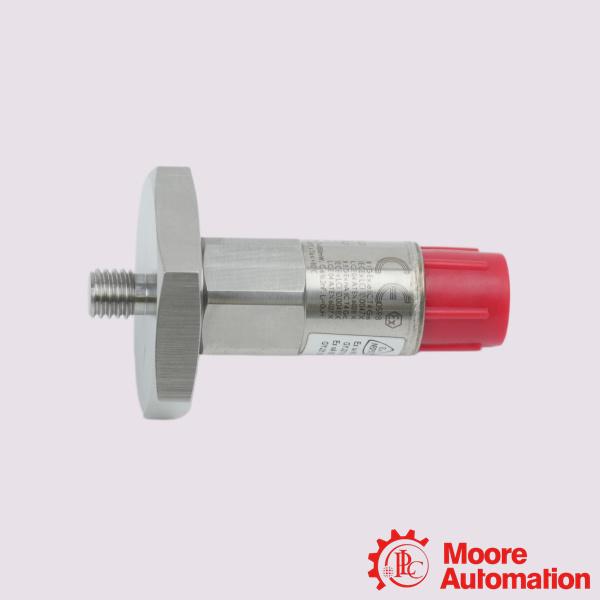

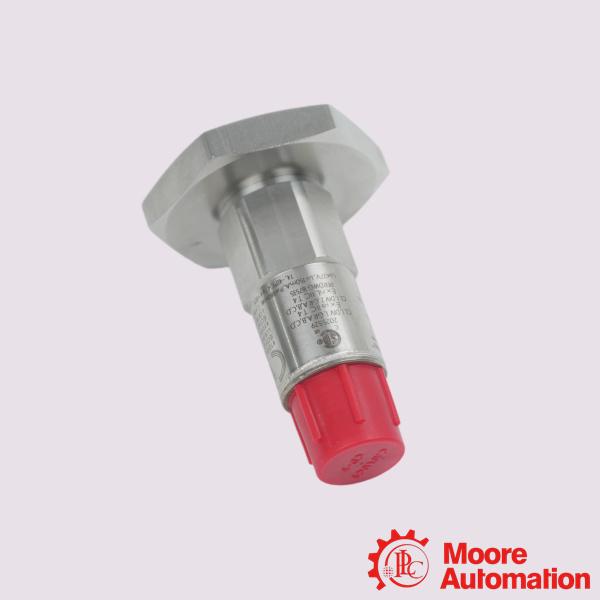

Bently Nevada 200150-23-CN Trendmaster Pro Accelerometer
| Mfr. Part Number: |
200150-23-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 20015x Accelerometers are general purpose, wide frequency, case-mounted seismic transducers designed for use with Trendmaster ProTIMs. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 200150-23-CN is a general-purpose, trend-monitoring accelerometer designed primarily for the Trendmaster 2000 and Trendmaster Pro condition monitoring systems. The 20015x Accelerometers feature a hermetically sealed, stainless steel case. This design provides an extremely rugged transducer that is well suited for harsh industrial environments. The transducer’s top-mounted, 5-pin connector allows you to easily install and remove the interconnecting signal cable. A 3/8-24 threaded hole on the bottom of the sensor’s casing accommodates several mounting options.
Application:
Cooling Tower Fans: Monitors structural casing vibration to detect blade imbalances, pitch issues, and drive shaft misalignments.
Water Circulation Pumps: Keeps track of early-stage cavitation, bearing wear, and mechanical looseness in continuous-duty water systems.
Forced Draft and Induced Draft Fans: Detects resonance and aerodynamic imbalances in massive boiler fans.
Small Gas Compressors: Measures cross-head and casing movement to prevent catastrophic component failures.
Frequently Asked Questions (FAQ)
Q:What does the "-23" modification mean?
A:The "-23" designates the specific mounting hardware included with the sensor. It indicates an M16 x 2 threaded mounting plate stud used to anchor the accelerometer firmly to the machine housing.
Q:What does the "-CN" designation mean?
A:The "-CN" suffix represents Country-Specific Approvals. Bently Nevada uses this designation to fulfill region-specific certification and legal marking criteria for shipping into localized regulated markets like China.
Q:Which cables should be used for connection?
A:The sensor features a top-mounted 5-pin 1/2-20 electrical connector. It partners with the 200151 (Standard) or 200152 (Armored) cable assemblies, which feature molded IP67 environmental seals.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：200150-23-CN |
|
Mounting Stud Option |
3/8-24 to M16x2.0 1-3/8 inch hex plate stud |
|
Sensitivity @ 80 Hz (± 12%) |
10.2 mV/(m/s2) (100 mV/g) |
|
Measurement Range |
±245 (±25) |
|
Mounted Resonant Frequency |
>20 kHz (>1200 kcpm) |
|
Transverse Sensitivity |
≤7% |
|
Excitation Voltage |
4.7 to 5.5 Vdc |
|
Quiescent Current |
<800 µA |
|
Output Bias Voltage |
+2.5 ± 0.23 Vdc |
|
Temperature Range |
-40ºC to +105ºC (-40ºF to +221ºF) |
|
