in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.75 cm × 4.57 cmWeight:
0.058 kgCountry of Origin: :
USADescription:

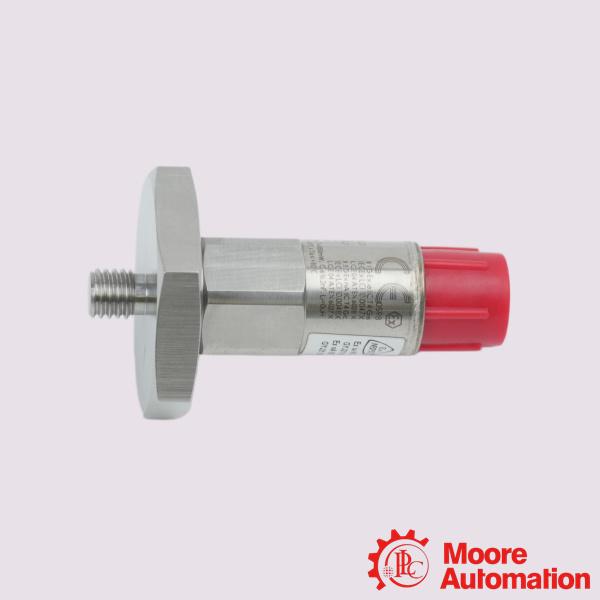

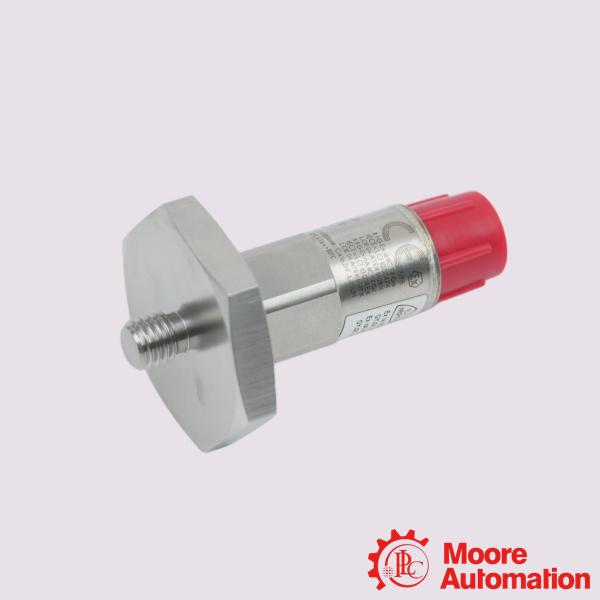

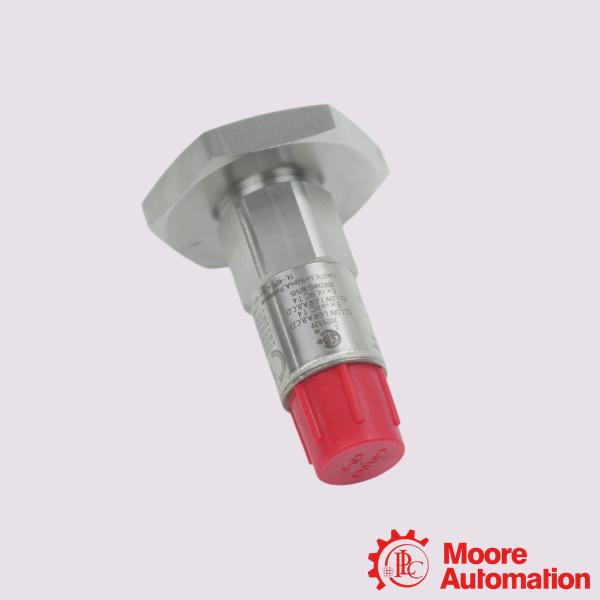

Bently Nevada 200150-13-05 Trendmaster Pro Accelerometer
| Mfr. Part Number: |
200150-13-05 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 20015x Accelerometers are general purpose, wide frequency, case-mounted seismic transducers designed for use with Trendmaster ProTIMs. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
TThe Bently Nevada 200150-13-05 is a general-purpose, case mounted seismic accelerometer primarily used for condition monitoring of small rotating machinery within the Trendmaster system.The 200150 Accelerometer also operates with the Trendmaster 2000 system. The accelerometer interfaces with the 200100 Dual Acceleration to Velocity flexiTIM Module and the 89130-01 Acceleration-to-Velocity TIM (Transducer Interface Module), as well as the 1900/25 and 1900/27 monitors.
Application:
Oil & Gas / Petrochemical: Auxiliary plant machinery away from the main turbine train.
Power Generation: Secondary assets like water feed pumps and cooling systems.
Pulp & Paper / Water Treatment: Continuous process monitoring in high-moisture settings.
General Manufacturing: Factory automation lines requiring plant-wide vibration profiling.
Frequently Asked Questions (FAQ)
Q:How should this sensor be wired and tested?
A:Unlike standard IEPE sensors that output a single-ended signal over a constant current coaxial line, the 200150 uses a 5-pin top-mounted connector and outputs a balanced differential voltage signal.
Q:What is the recommended mounting torque?
A:The sensor must be torqued between 2.7 to 6.8 N·m (2 to 5 ft·lbf) into a clean, flat surface. Over-tightening can fracture the internal ceramic shear element, while under-tightening causes signal attenuation at higher frequencies.
Q:Can this sensor be used for high-frequency or enveloping applications?
A:No. The 200150 model caps out at 1 kHz. If your application requires low-frequency measurements below 10 Hz, you should swap it for the 200155 model. For high-frequency acceleration enveloping (up to 10 kHz), choose the 200157 variant
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：200150-13-05 |
|
Mounting Stud Option |
3/8-24 to 5/16-18 UNC, 3/4 inch hex stud |
|
Sensitivity @ 80 Hz (± 12%) |
10.2 mV/(m/s2) (100 mV/g) |
|
Measurement Range |
±245 (±25) |
|
Mounted Resonant Frequency |
>20 kHz (>1200 kcpm) |
|
Transverse Sensitivity |
≤7% |
|
Excitation Voltage |
4.7 to 5.5 Vdc |
|
Quiescent Current |
<800 µA |
|
Output Bias Voltage |
+2.5 ± 0.23 Vdc |
|
Temperature Range |
-40ºC to +105ºC (-40ºF to +221ºF) |
|
Approvals |
Multiple Approvals (CSA, ATEX, and IECEx) |
|
