in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.75 cm × 4.57 cmWeight:
0.058 kgCountry of Origin: :
USADescription:

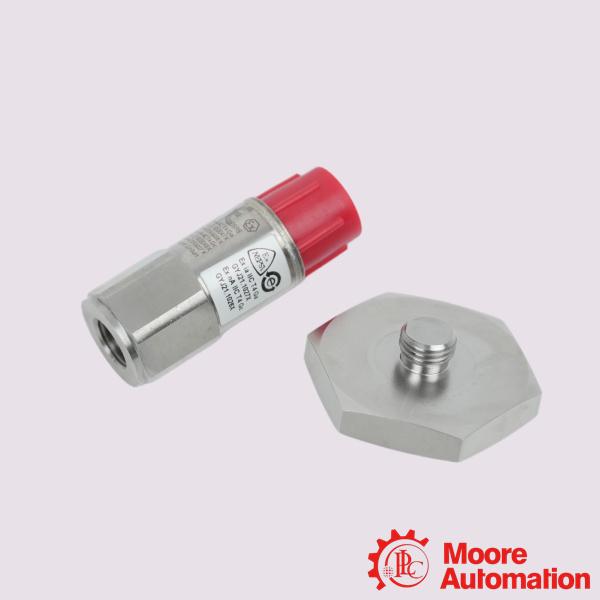

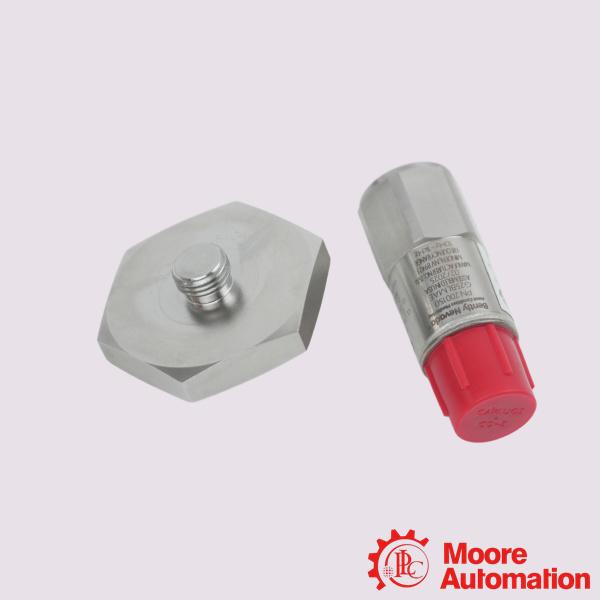

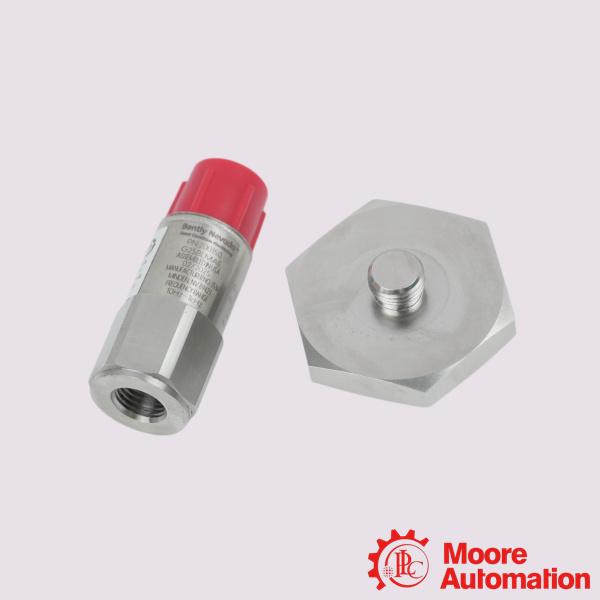

Bently Nevada 200150-05-05 Trendmaster Pro Accelerometer
| Mfr. Part Number: |
200150-05-05 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 20015x Accelerometers are general purpose, wide frequency, case-mounted seismic transducers designed for use with Trendmaster ProTIMs. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 200150-05-05 is a general-purpose, case-mounted seismic accelerometer. It measures machinery vibration and is primarily integrated with Bently Nevada Trendmaster 2000 and Trendmaster Pro systems via Transducer Interface Modules (proTIMs).The 20015x Accelerometers feature a hermetically sealed, stainless steel case. This design provides an extremely rugged transducer that is well suited for harsh industrial environments. The transducer’s top-mounted, 5-pin connector allows you to easily install and remove the interconnecting signal cable. A 3/8-24 threaded hole on the bottom of the sensor’s casing accommodates several mounting options.
Application:
Power Generation Plants: Monitors casing vibrations on steam and gas turbines, cooling tower fans, water feed pumps, and auxiliary blowers.
Oil, Gas, & Petrochemical Refineries: Deployed on pipeline pumps, centrifugal compressors, and chemical mixers where ATEX/IECEx explosion protection is strictly mandatory.
Water & Wastewater Treatment: Tracks bearing degradation and cavitation signs in massive water distribution and treatment pumps.
Steel & Heavy Manufacturing Mills: Attached to high-load factory rollers, mining crushers, conveyor belts, and raw material handling machinery.
Frequently Asked Questions (FAQ)
Q:What cable is required for connection?
A:You should pair this sensor with the 200151 series cables. This is a 4-conductor, 22 AWG braided-shield cable featuring a top-mounted, molded 5-pin 1/2-20 coupling nut that ensures an IP67-rated environmental seal against liquid and dust ingress.
Q:How do you verify and calibrate the sensor?
A:You can verify the accuracy of the loop output on-site using portable shaker platforms like the The Modal Shop 9100D or 9110D Portable Vibration Calibrators. The sensor provides a differential voltage signal proportional to the parallel axis of acceleration.
Q:Does the sensor need to be calibrated?
A:Yes, it should be loop-checked regularly to maintain machine safety. It can be verified on-site using portable shaker tables like The Modal Shop 9100D or 9110D calibrators.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：200150-05-05 |
|
Mounting Stud Option |
3/8-24 to 1/4-28 UNF 1-3/8 inch hex plate stud |
|
Sensitivity @ 80 Hz (± 12%) |
10.2 mV/(m/s2) (100 mV/g) |
|
Measurement Range |
±245 (±25) |
|
Mounted Resonant Frequency |
>20 kHz (>1200 kcpm) |
|
Transverse Sensitivity |
≤7% |
|
Excitation Voltage |
4.7 to 5.5 Vdc |
|
Quiescent Current |
<800 µA |
|
Output Bias Voltage |
+2.5 ± 0.23 Vdc |
|
Temperature Range |
-40ºC to +105ºC (-40ºF to +221ºF) |
|
Approvals |
Multiple Approvals (CSA, ATEX, and IECEx) |
|
