in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.75 cm × 4.57 cmWeight:
0.058 kgCountry of Origin: :
USADescription:

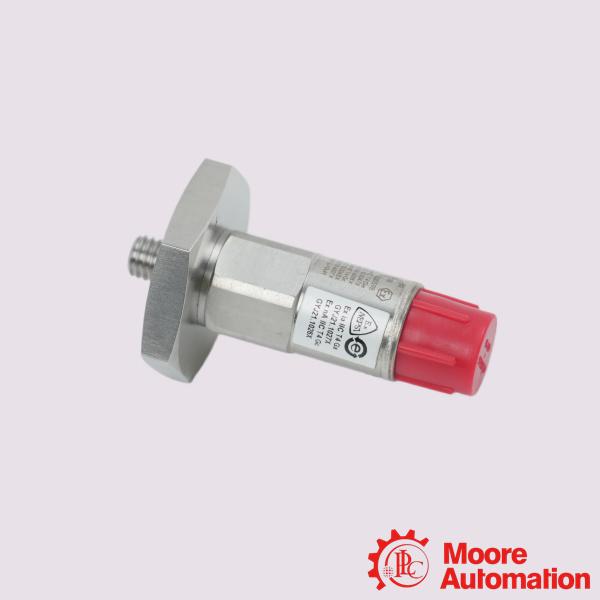

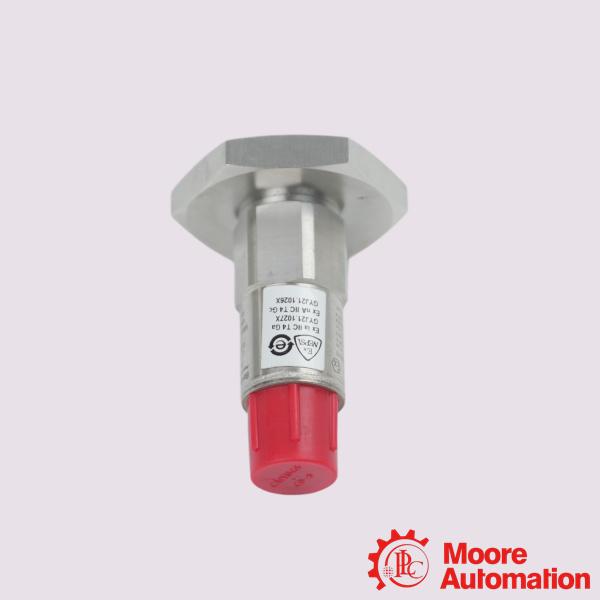

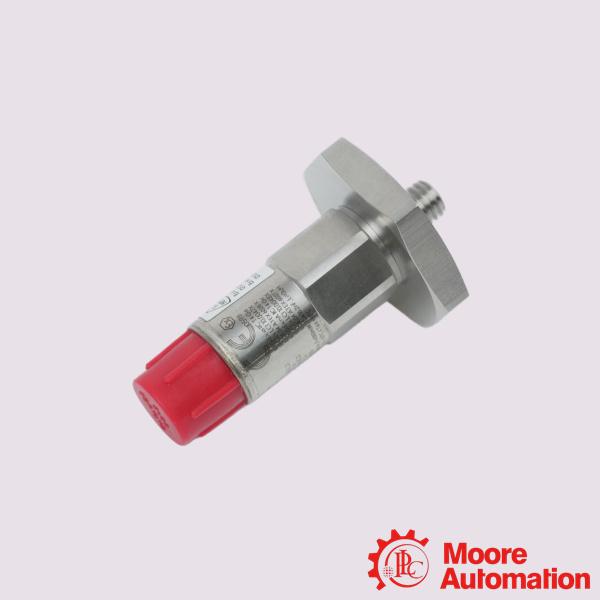

Bently Nevada 200150-04-05 Trendmaster Pro Accelerometer
| Mfr. Part Number: |
200150-04-05 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 20015x Accelerometers are general purpose, wide frequency, case-mounted seismic transducers designed for use with Trendmaster ProTIMs. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 200150-04-05 is a general-purpose, housing-mounted piezoelectric accelerometer designed for condition monitoring and predictive maintenance of business operation (BOP) equipment. The 20015x series accelerometers are general-purpose, wideband housing-mounted seismic sensors compatible with Trendmaster ProTIM. The 200150 accelerometer is also compatible with the Trendmaster 2000 system and can be used with the following modules and monitors: the 200100 dual-channel accelerometer-to-velocity conversion flexiTIM module, the 89130-01 accelerometer-to-velocity conversion TIM (sensor interface module), and the 1900/25 and 1900/27 monitors.
Application:
Power Generation & Utilities: Deployed on standard water pumps, cooling tower fans, power valves, and wind turbine sub-assemblies.
Manufacturing & Heavy Industry: Installed across steel mills, paper machines, and food processing lines to watch over conveyor drives, gearboxes, and large motor bearings.
Oil & Gas Refineries & Chemical Plants: Used on auxiliary pumps, chemical mixers, and process piping systems to prevent pipeline shaking and seal leaks.
Commercial HVAC Systems: Monitored via facilities management infrastructure on large centrifugal chillers, industrial air handling units, and extraction fans.
Frequently Asked Questions (FAQ)
Q:How is the sensor constructed for harsh environments?
A:The accelerometer features a hermetically sealed, stainless steel case. It has a top-mounted, 5-pin electrical connector and achieves an IP67 weatherproofing rating when mated to its accompanying molded cable.
Q:Can the cables withstand extreme cold?
A:The standard cable assembly has an operating temperature range of -20 °C to +100 °C (-4 °F to +212 °F). It can be deployed in lower temperatures only if the cable is fully anchored and prevented from moving or flexing, as low-temperature bending will crack the PVC outer jacket.
Q:How do you verify or calibrate this accelerometer?
A:Field verification can be carried out using a portable shaker table like The Modal Shop Portable Vibration Calibrator. When driving the shaker at a baseline frequency of 80 Hz at 1.0 g peak, the expected output voltage from a healthy sensor should register approximately 100 mV/g with a differential bias near 2.5 V DC.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：200150-04-05 |
|
Mounting Stud Option |
3/8-24 to 1/4 NPT 1-3/8 inch hex plate stud |
|
Sensitivity @ 80 Hz (± 12%) |
10.2 mV/(m/s2) (100 mV/g) |
|
Measurement Range |
±245 (±25) |
|
Mounted Resonant Frequency |
>20 kHz (>1200 kcpm) |
|
Transverse Sensitivity |
≤7% |
|
Excitation Voltage |
4.7 to 5.5 Vdc |
|
Quiescent Current |
<800 µA |
|
Output Bias Voltage |
+2.5 ± 0.23 Vdc |
|
Temperature Range |
-40ºC to +105ºC (-40ºF to +221ºF) |
|
Approvals |
Multiple Approvals (CSA, ATEX, and IECEx) |
|
