Product Description:

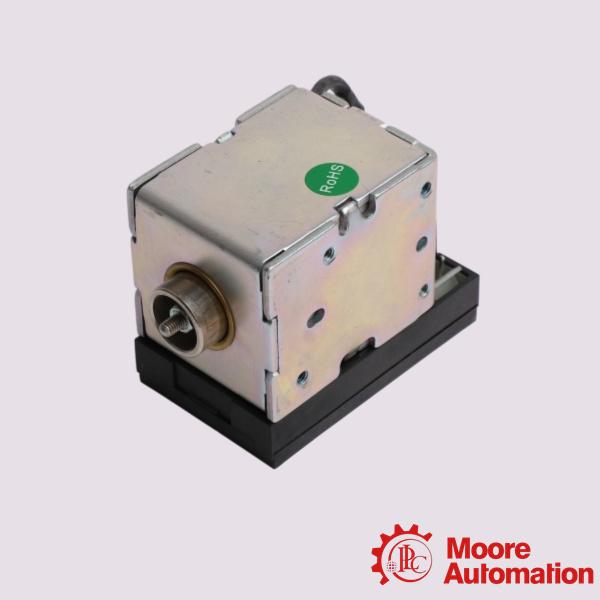

The 1SDA073700R1 serves as an undervoltage release module configured for E1.2 through E6.2 air switchgear and XT7/XT7M molded case circuit breaker lines. It operates under a dedicated supply range of 220 to 240 V AC/DC at a frequency range of 50 to 60 Hz for alternating current setups. This internal mechanism acts as a hardwired interlocking safeguard that coordinates directly with downstream distribution monitors and automated industrial power loops.

The unit triggers an automatic mechanical trip of the hosting circuit breaker when the system control voltage drops to a threshold between 35% and 70% of its nominal value. It remains continuously energized during standard grid operations and maintains an open pathway for manual or motorized breaker closing only when the grid returns to safe parameters. The compact assembly fits into predefined internal accessory compartments to provide isolation capabilities during blackouts and phase failures.

Application:

Steam Turbines: Acting as a passive emergency interlocking device that instantly drops the main breaker if critical sensor power or substation control voltage fails.
Gas Turbines: Mitigating dangerous brownouts by forcing generator line-breakers open before sustained low-voltage loops destabilize auxiliary fuel pump motors.
Petrochemical Extraction Plants: Integrating into hardwired safety-loop logic to systematically isolate distribution switchgears during plant-wide blackouts.
Automated Assembly Factories: Providing interlocking safety for high-tonnage robotic stamping lines, preventing machinery from automatically resetting or misbehaving when voltage fluctuates.

Frequently Asked Questions (FAQ)

Q: Is 1SDA073700R1 intended for use inside switchgear systems?
A: Yes, it is commonly installed inside low-voltage switchgear and breaker assemblies for undervoltage protection functions.

Q: Does 1SDA073700R1 require external auxiliary contacts for operation?
A: No, the device itself does not include auxiliary NO or NC contacts.

Q: Can 1SDA073700R1 be integrated into automatic transfer systems?
A: Yes, it is suitable for ATS and power continuity applications where voltage monitoring is required.
