1SDA073674R1/1SDA073687R1 | ABB Shunt Release

in stock#

Brand/ Manufacturer:
ABB
Dimensions:
9x4.7x6.3cm
Weight:
0.7kg
Country of Origin: :
SWEDEN
Description:
ABB 1SDA073674R1/1SDA073687R1 Shunt Release

Inquiry now

Mfr. Part Number:	1SDA073674R1/1SDA073687R1

Manufacturer:	ABB

Description:	ABB 1SDA073674R1/1SDA073687R1 Shunt Release

Full Description:	ABB 1SDA073674R1 / 1SDA073687R1 Shunt Release is a 220–240V AC/DC accessory for ABB Tmax XT and Emax 2 breakers enabling reliable remote tripping for protection and emergency shutdown.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for EPRO. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

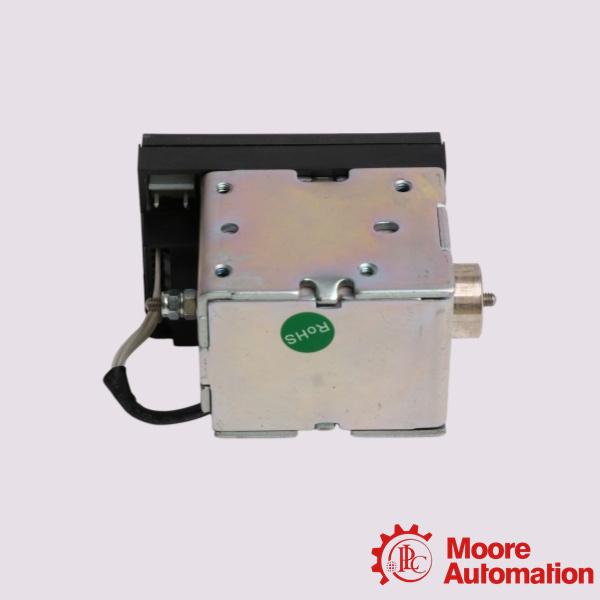

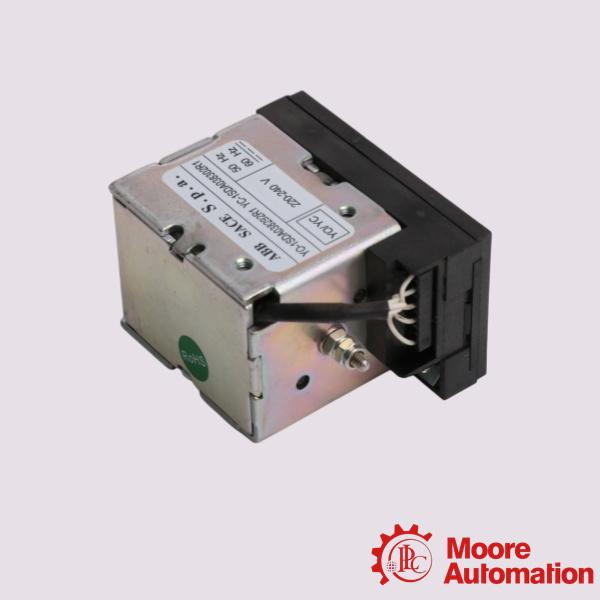

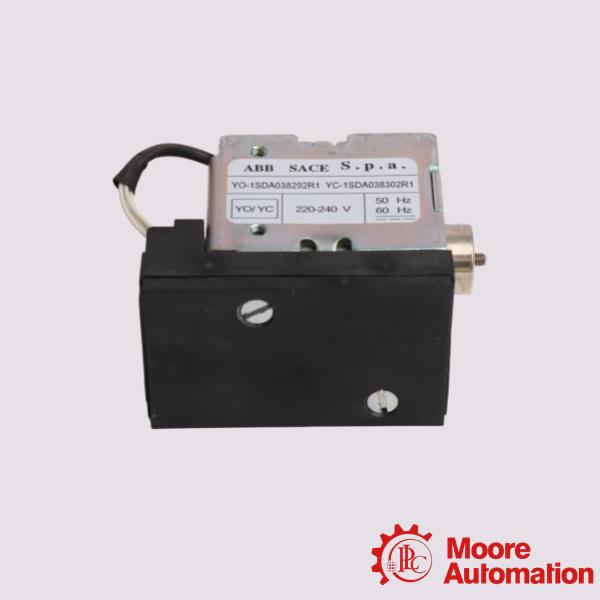

The ABB 1SDA073674R1 / 1SDA073687R1 shunt release is designed for ABB SACE Tmax XT and Emax 2 circuit breakers, enabling remote opening control of the breaker. It operates with a 220–240V AC/DC control supply and responds to external control signals to trigger tripping from a remote location.

It is commonly used in power distribution systems for remote operation, interlocking functions, and emergency disconnection, allowing centralized switching control in control rooms or automated systems.

Application:

Power Generation Control Rooms: Trusted controller configuration, process monitoring, and industrial automation management.
Oil & Gas Processing Plants: Safety control workstation integration and distributed control system programming.
Chemical Processing Factories: Industrial control application management and process communication configuration.
Industrial Automation Engineering Stations: PLC logic development, system diagnostics, and Trusted system maintenance.

Frequently Asked Questions (FAQ)

Q: Does 1SDA073674R1 / 1SDA073687R1 require additional interface modules for operation?
A: It normally operates directly through compatible breaker accessory interfaces without external interface modules.

Q: Does 1SDA073674R1 / 1SDA073687R1 support integration with protection relays?
A: Yes, it can be connected to protection relays for automatic trip operations.

Q: Is 1SDA073674R1 / 1SDA073687R1 used in generator and transformer protection systems?
A: Yes, it is frequently applied in generator and transformer breaker control schemes.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number: 1SDA073674R1
Operating Voltage	220 ... 240 V AC/DC
Current Type	Bidirectional AC/DC current operation
Trip Operating Time	Less than 30 ms
Instantaneous Peak Power Consumption	Approximately 300 VA (AC) / 300 W (DC)
Standard Operating Temperature Range	-25°C to +70°C
Storage Temperature Range	-40°C to +70°C
