NGDR-07C NGDR-07 FF650R17IE4 | ABB IGBT Module

in stock#

Brand/ Manufacturer:
ABB
Dimensions:
9.3x8x2.5cm
Weight:
0.05 kg
Country of Origin: :
SWEDEN
Description:

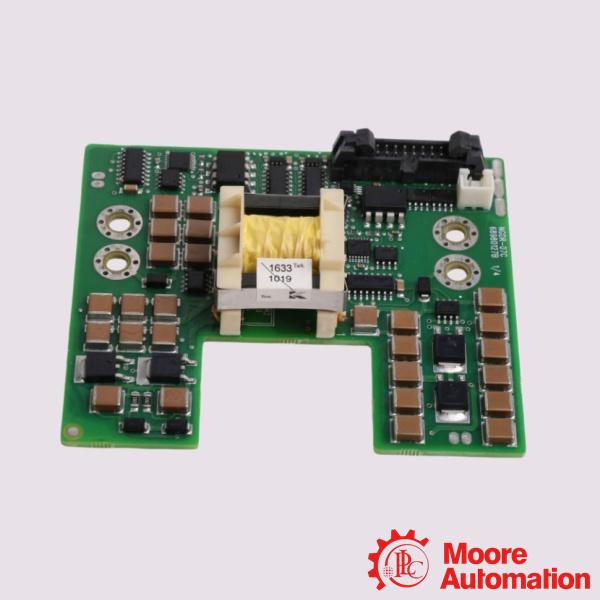

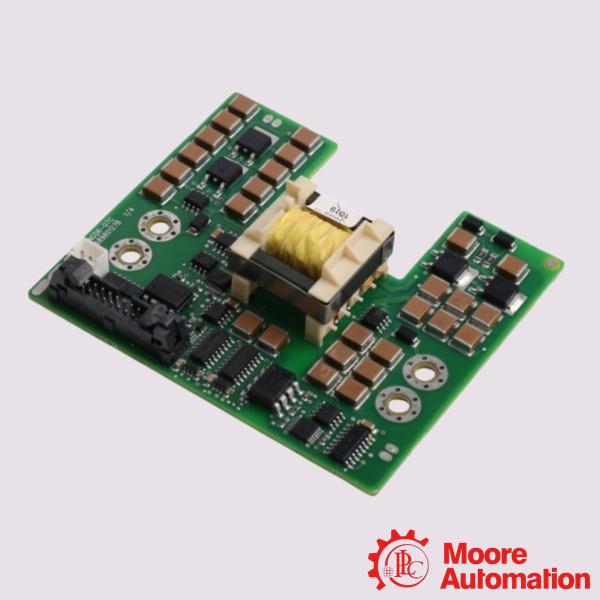

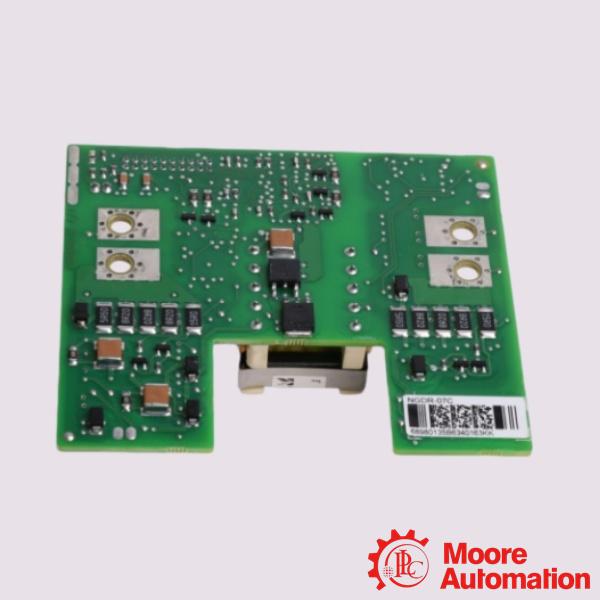

ABB NGDR-07C NGDR-07 FF650R17IE4 IGBT Module

Inquiry now

Mfr. Part Number:	NGDR-07C NGDR-07 FF650R17IE4

Manufacturer:	ABB

Description:	ABB NGDR-07C NGDR-07 FF650R17IE4 IGBT Module

Full Description:	The ABB NGDR-07C NGDR-07 FF650R17IE4 IGBT Module features an internal gate resistor of 2.3 Ω

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for ABB. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:
The ABB NGDR-07C NGDR-07 FF650R17IE4 IGBT Module is a demanding industrial drive and inverter applications. Featuring a collector-emitter voltage of 1700 V and a repetitive peak collector current of 1300 A.

The ABB NGDR-07C NGDR-07 FF650R17IE4 offers a total power dissipation of 4.15 kW and includes an internal gate resistor of 2.3 Ω to optimize switching characteristics. The module also features a reverse transfer capacitance of 1.70 nF, supporting improved switching control and reduced electromagnetic interference. It can operate under switching temperatures ranging from -40 to 150 °C.

Application:

Metallurgy and Steel: Blast furnace blowers, converter agitators, main drives of rolling mills, and heavy equipment for coil rolling machines.
Oil and Gas: Oil and gas drilling rigs, pipeline compressors for oil and gas transportation, variable frequency drive systems for pump groups in oil refineries.
Electricity and Energy: Boiler induced draft fans, supply fans, and water pumps.
Mining and Cement: Mine elevators, conveyor belts, crushers, ball mills, and cement rotary kilns.
Water Treatment and Municipal Engineering: Urban water supply systems, lift pumps for sewage treatment plants, pressurization pumps, and blowers and aeration systems.

Frequently Asked Questions (FAQ)

Q:What is the maximum power dissipation of the ABB NGDR-07C NGDR-07 FF650R17IE4 IGBT Module?
A:The ABB NGDR-07C NGDR-07 FF650R17IE4 IGBT Module supports a maximum power dissipation of 650 kW.

Q:What is the reverse transfer capacitance of the ABB NGDR-07C NGDR-07 FF650R17IE4 IGBT Module?
A:The ABB NGDR-07C NGDR-07 FF650R17IE4 IGBT Module has a reverse transfer capacitance of 1.70 nF.

Q:What is the repetitive peak collector current of the ABB NGDR-07C NGDR-07 FF650R17IE4 IGBT Module?
A:The ABB NGDR-07C NGDR-07 FF650R17IE4 IGBT Module supports a repetitive peak collector current of 1300 A.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number: NGDR-07C NGDR-07 FF650R17IE4
Collector-Emitter Voltage	1700 V
Repetitive Peak Collector Current	1300 A
Total Power Dissipation	4.15 kW
Internal Gate Resistor	2.3 Ω
Reverse Transfer Capacitance	1.70 nF
Temperature Under Switching Conditions	-40 to 150 °C
Maximum Power Dissipation	650 kW
