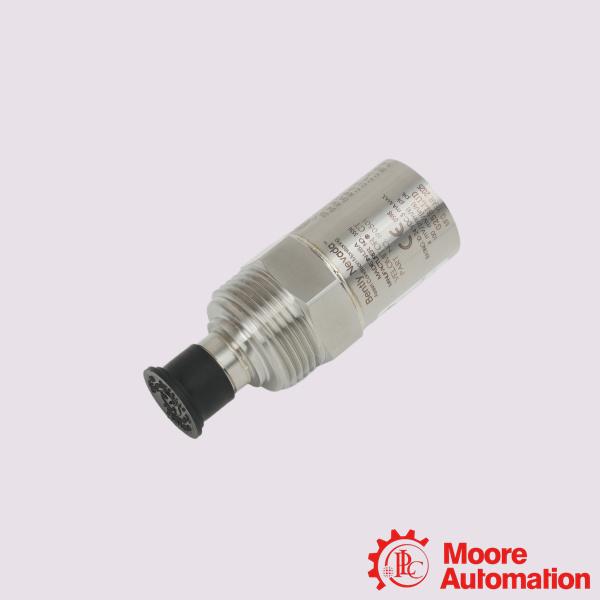

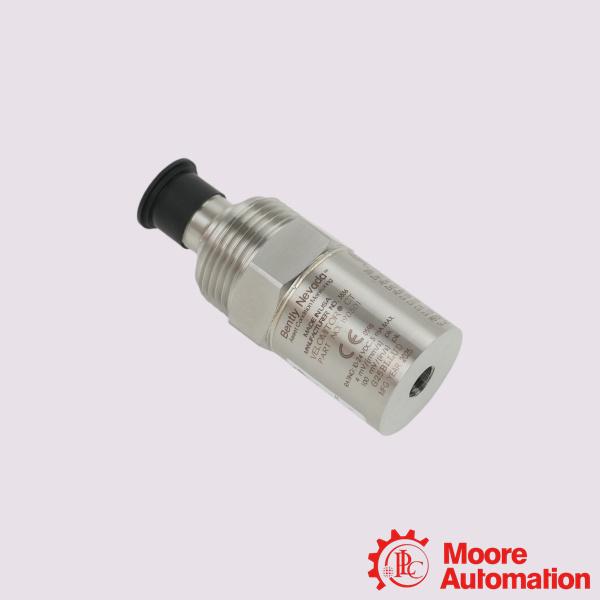

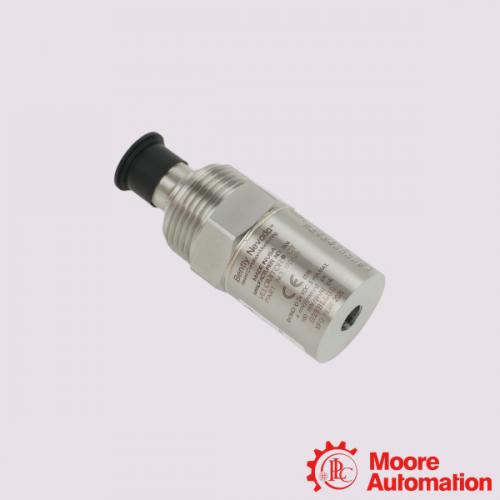

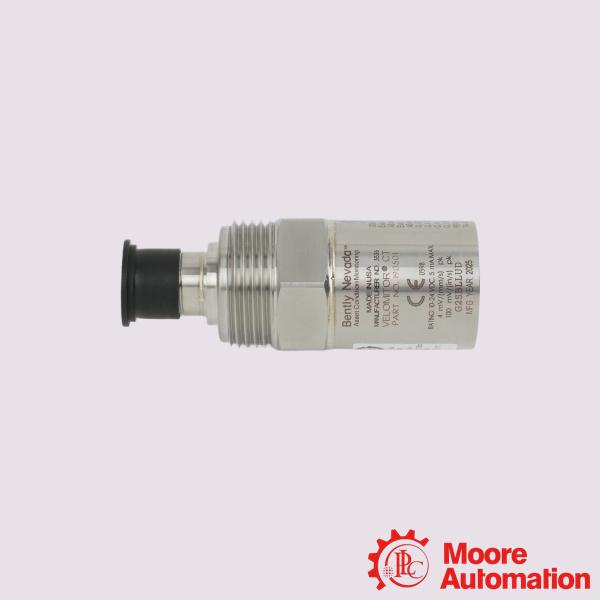

190501-22-99-04 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-22-99-04 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-22-99-04

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-22-99-04 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-22-99-04 Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Cooling Tower Fan Assemblies: Measures absolute structural and casing vibration velocity on large cooling tower fans, specifically targeting machinery operating at lower spectrum thresholds (typically between 100 to 300 rpm, and as low as 90 rpm).
Air-Cooled Heat Exchangers (Fin-Fans): Monitors high-altitude mechanical fan setups exposed to weather variance, tracking unbalanced blades or mechanical flexing.
Slow-Speed Industrial Fans & Blowers: Deployed across petrochemical plants, power generation facilities, and HVAC infrastructure to trace low-frequency rotor defects.
Associated Drive Train Tracking: Measures overlapping vibration frequencies generated simultaneously by the integrated fan motor, structural supports, and the speed reducer/gearbox.

Frequently Asked Questions (FAQ)

Q:How sensitive is the sensor to its mounting orientation?
A:It can be installed in any orientation (vertical, horizontal, or inverted) without affecting its operation or sensitivity
Q:Can the 190501 sensor be mounted in any orientation?
A:Yes. It can be installed in any orientation (horizontal, vertical, or inclined) without affecting measurement accuracy. However, the case must be securely fastened to the machine's casing using a mounting torque of 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf)

Q:Does it require field calibration?
A:No. The sensor is factory calibrated and does not require periodic recalibration in the field

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-22-99-04
Mounting Hardware Option	Adapter, 3/8-in 24 to 3/4-in 14 NPT
Connection Option	Unit with included 32-foot cable
Agency Approval Option	CSA/NRTL/C (Class I, Division 1), ATEX/IECEx/CSA (Class I, Zone 0/1)
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Shock Limit	5000 g pk, maximum.
Humidity Limit	100% condensing, non-submerged
