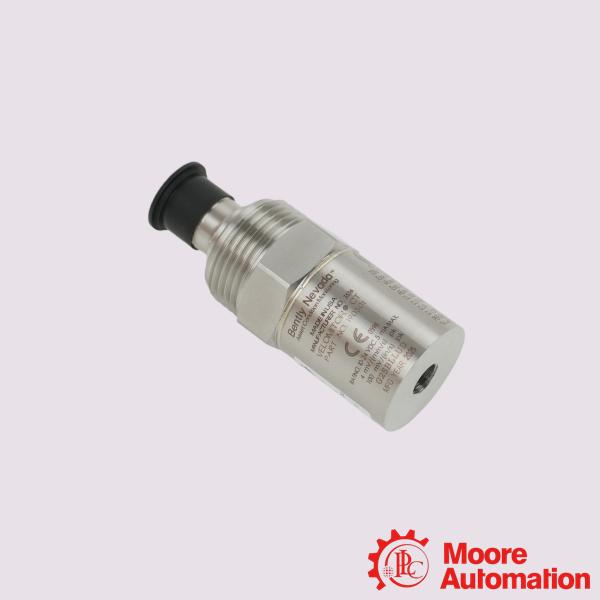

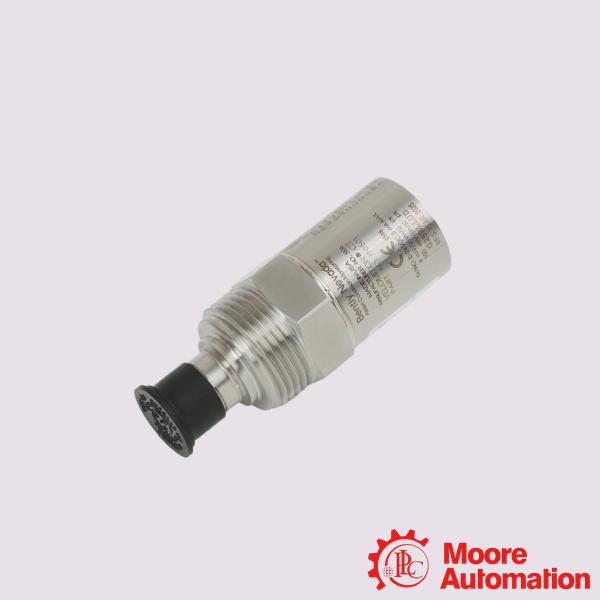

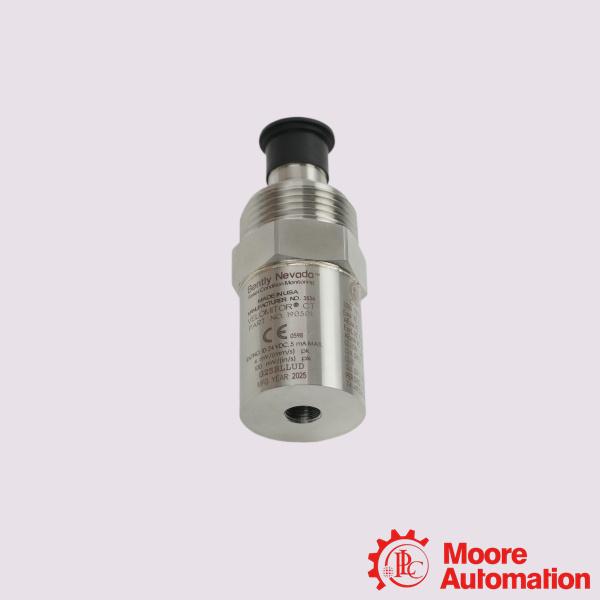

190501-04-99-04 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-04-99-04 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-04-99-04

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-04-99-04 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-04-99-04 Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Industrial Cooling Towers: Monitors mechanical drafts, crossflow, and counterflow towers. It tracks slow-speed fan assemblies to detect rotor and blade issues before catastrophic failure
Air-Cooled Heat Exchangers (Fin-Fans): Widely used across oil refineries, chemical processing plants, and power generating stations where liquid processing relies heavily on large fan arrays for heat dissipation.
Fan Motors: Captures structural and electrical vibrations passing through the motor casing.
Speed Reducers / Gearboxes: Detects early gear mesh problems or bearing defects within the low-speed gearboxes.

Frequently Asked Questions (FAQ)

Q:What makes the Velomitor "CT" version different from a standard Velomitor?
A:The "CT" designation stands for Cooling Tower. Unlike the standard Bently Nevada 330500 Velomitor, the 190501 has its frequency range adjusted downward to measure low-velocity vibration. This makes it perfect for cooling tower fans and slow-moving machinery operating down to 90 rpm.
Q:How should the sensor be mounted?
A:The sensor must be torqued to 4.5 N-m ± 0.6 N-m (40 in–lbf ± 5 in-lbf) during installation. Operating or mounting the transducer outside of these parameters will lead to false readings or tracking dropouts.

Q:How is the wiring polarity configured?
A:The 190501 utilizes a two-wire system where Pin A is positive relative to Pin B. The voltage shifts positive when the direction of machinery velocity moves from the base toward the top of the transducer.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-04-99-04
Mounting Hardware Option	Stud M6x1 with 3/8-in 24 adapter
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Shock Limit	5000 g pk, maximum
Humidity Limit	100% condensing, non-submerged
