190501-22-99-00 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:

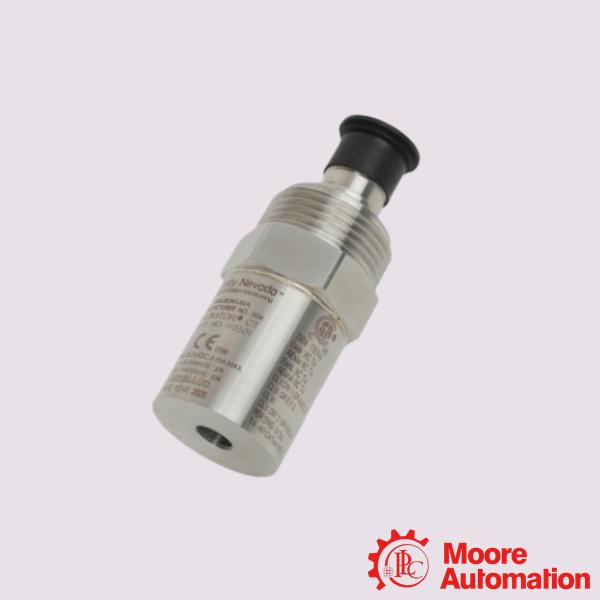

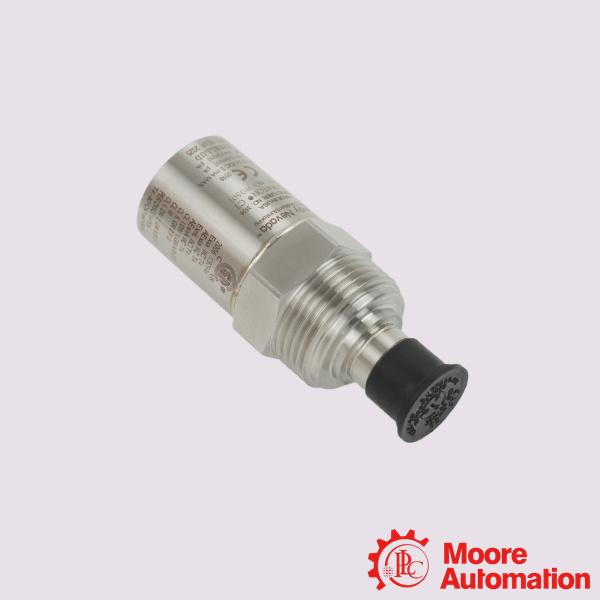

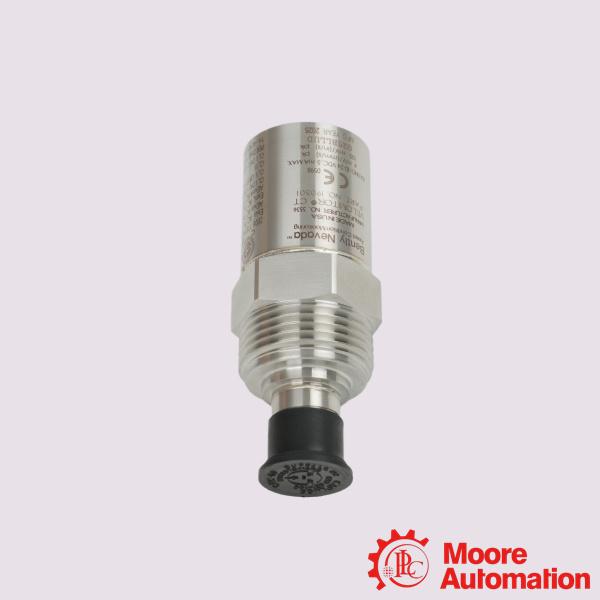

Bently Nevada 190501-22-99-00 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-22-99-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-22-99-00 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-22-99-00 Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Cooling Tower Fan Monitoring: The transducer is optimized for low-speed cooling tower fan assemblies, detecting unbalance, misalignment, and bearing wear by capturing rotor vibration transmitted to the casing.
Air-Cooled Heat Exchanger Fan Protection: It measures vibration velocity on ACHE fan assemblies operating at 90 rpm and above, enabling early detection of mechanical faults for preventive maintenance.
Petrochemical and Refinery Equipment Surveillance: With ATEX/IECEx and CSA hazardous area certifications, it is ideal for vibration monitoring on critical rotating machinery in explosive atmosphere zones within refineries and chemical plants.
Power Generation Cooling Systems: The sensor supports condition monitoring programs for large cooling fans and auxiliary rotating equipment in power plants, helping ensure reliable operation and reducing unplanned downtime.

Frequently Asked Questions (FAQ)

Q:What is the primary purpose of the Velomitor CT transducer?
A:The Velomitor CT is a low-frequency piezo-velocity sensor specifically designed to measure casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies operating at or above 90 rpm (100 to 300 rpm range).
Q:Can the Velomitor CT be used in hazardous environments?
A:Yes, the 190501 series carries ATEX/IECEx approvals (Ex ia IIC T4 Ga for Zone 0/1 and Ex tc IIIC T130°C Dc for dust environments), as well as CSA/NRTL/C certifications, making it suitable for hazardous area installations.

Q:What is the maximum recommended cable length for this transducer?
A:The maximum continuous cable length available is 91.44 meters (300 feet). If longer lengths are required, they must be spliced or use a connector installed on-site.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-22-99-00
Mounting Hardware Option	Adapter, 3/8-in 24 to 3/4-in 14 NPT
Connection Option	Unit with included 32-foot cable
Agency Approval Option	No Approvals
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
