190501-22-00-CN | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:

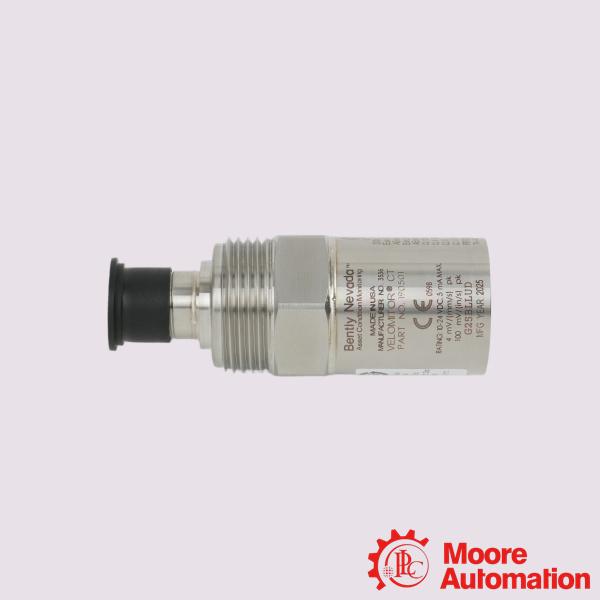

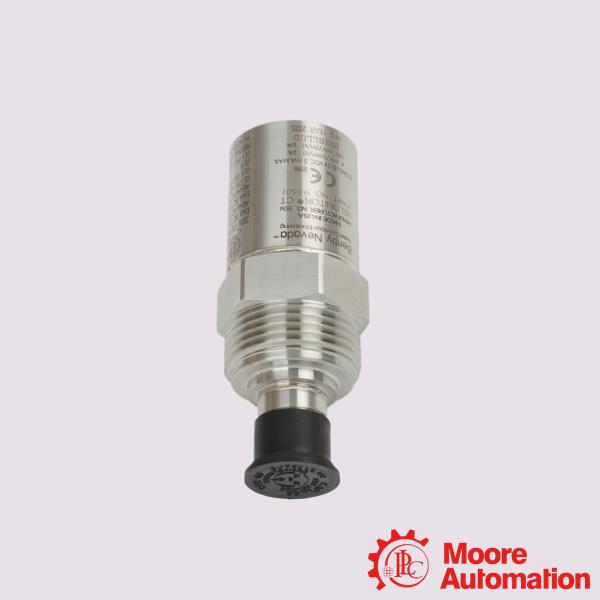

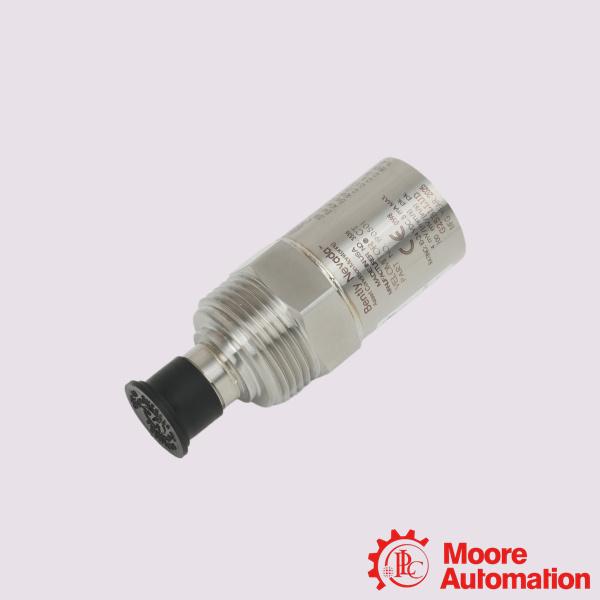

Bently Nevada 190501-22-00-CN Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-22-00-CN

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-22-00-CN Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-22-00-CN Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Cooling Tower Fan Assemblies: Measures absolute structural and casing vibration on massive industrial cooling towers.
Air-Cooled Heat Exchangers (Fin-Fans): Monitors unbalanced blades and mechanical flexing on overhead or high-altitude fan setups.
Slow-Speed Industrial Fans & Blowers: Tracks low-frequency rotor defects and structural support vibration in petrochemical plants and HVAC infrastructure.
Drive Trains: Monitors the combined vibration generated by the fan motor, structural base, and speed reducer/gearbox.

Frequently Asked Questions (FAQ)

Q:What is the primary use of the 190501 Velomitor CT?
A:It is primarily used to monitor low-frequency vibrations (down to 90 rpm) on large cooling tower fans, air-cooled heat exchangers (fin-fans), and slow-speed industrial blowers. It tracks overlapping vibration frequencies generated by the fan, speed reducer/gearbox, and motor to prevent catastrophic mechanical failure.
Q:Where should the transducer be mounted?
A:It must be mounted directly on the bearing housing or machine casing. Improper installation—such as mounting it on a flexible bracket or non-rigid surface—can result in decreased amplitude/frequency response or generate false vibration signals.

Q:What type of cable connection does this model use?
A:The "-00" connection option utilizes a standard MIL-C-5015 connection interface.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-22-00-CN
Mounting Hardware Option	Adapter, 3/8-in 24 to 3/4-in 14 NPT
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Base Strain Sensitivity	0.43 mm/s/μstrain (0.017 in/s/μstrain)
