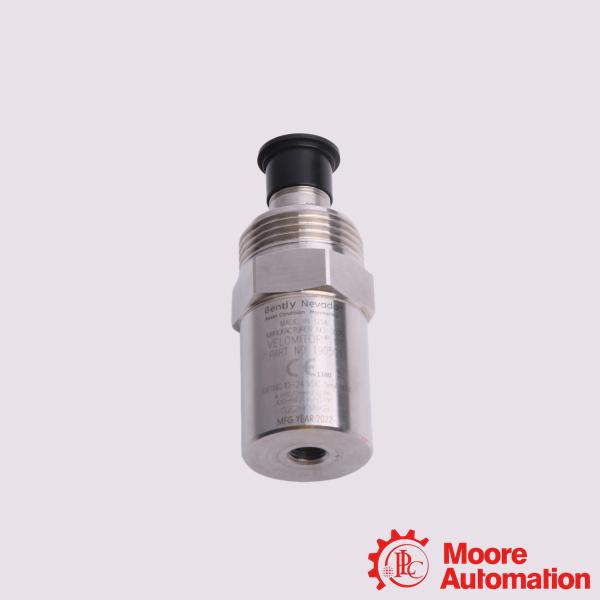

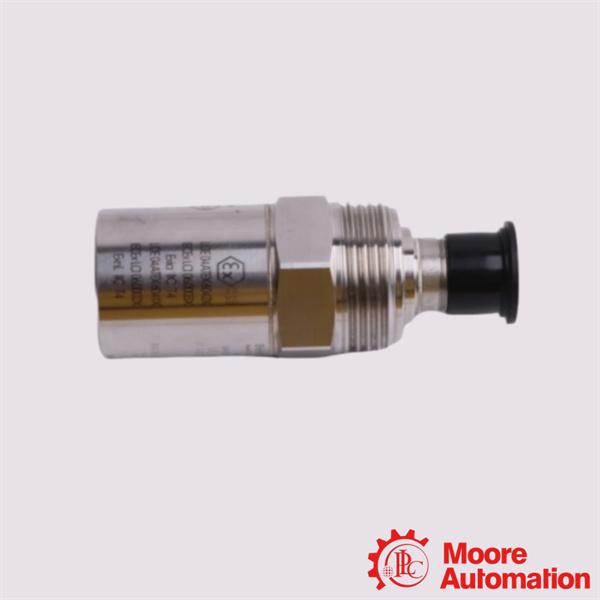

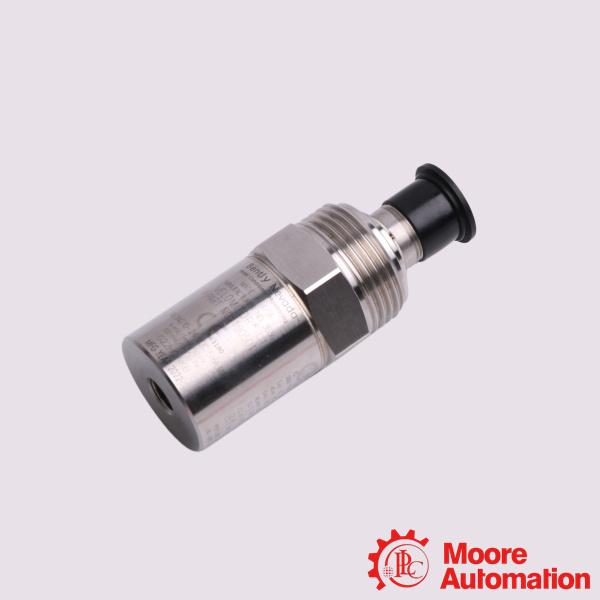

190501-21-00-CN | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.5x3.5x3cm
Weight:
0.32kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-21-00-CN Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-21-00-CN

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-21-00-CN Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-21-00-CN sensor is a Bently Nevada Velomitor CT velocity sensor. This sensor utilizes piezoelectric velocity sensing technology and is specifically designed for low-speed rotating equipment such as cooling towers and air-cooled heat exchanger fans. It has intrinsically safe explosion-proof certification, making it suitable for hazardous areas, with an operating temperature range of -55°C to +121°C.

Application:

Water & Wastewater Treatment Facilities: Used to monitor large water pumps, agitators, and aeration blowers due to the sensor's robust resistance to high-humidity environments.
Low-Speed Industrial Blowers & Fans: Ideal for heavy-duty draft fans, ventilation fans, and exhaust systems operating at speeds as low as 90 rpm (up to 54,000 rpm).
Hazardous Petrochemical Areas: The -CN certified explosion-proof rating makes it safe for continuous machinery monitoring inside refineries, oil & gas processing plants, and chemical production zones requiring localized compliance.
Cooling Tower Fan Assemblies: This is the primary intended design application. It monitors casing vibrations on the fan motor, drive shafts, and speed reduction gearboxes to prevent catastrophic blade or gear failures.

Frequently Asked Questions (FAQ)

Q: Can this sensor survive harsh outdoor environments?
A:Yes. The casing is made of 316L stainless steel and is hermetically sealed. It is specifically engineered to resist the constant water spray, high humidity, and corrosive chemical water treatments found inside industrial cooling towers.
Q: What kind of cable do I need to connect to it?
A:Because this part number ends in -00, it has an un-cabled MIL-C-5015 top connector. You will need a compatible 2-pin MIL-C-5015 terminal cable assembly (usually a Bently Nevada 02173006 or 101212 series cable) to link it to your monitoring system.

Q:What makes the "Velomitor CT" different from a standard Velomitor?
A:The CT stands for Cooling Tower. Standard Velomitors (like the 330500) are optimized for higher speeds. The Velomitor CT is specifically designed for low-frequency applications, tracking vibration frequencies down to 3.0 Hz (approx. 180 cpm), making it ideal for the slow rotation of cooling tower fans.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-21-00-CN
Mounting Hardware Option	Adapter, 3/8-in 24 to 1/2-in 14 NPT
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Base Strain Sensitivity	0.43 mm/s/μstrain (0.017 in/s/μstrain)
