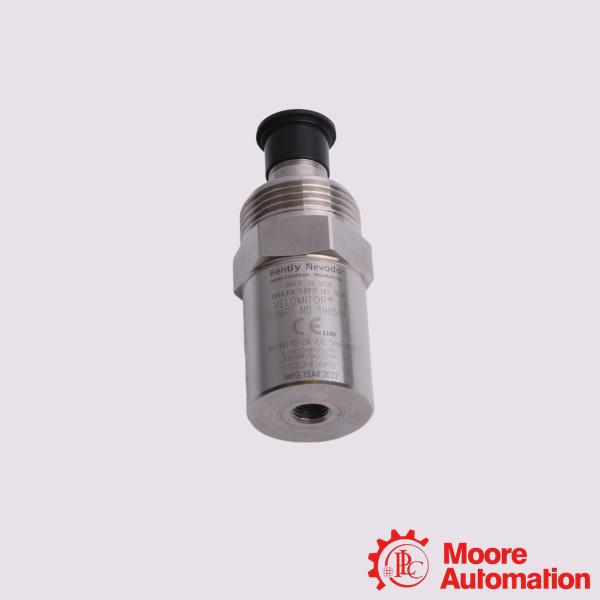

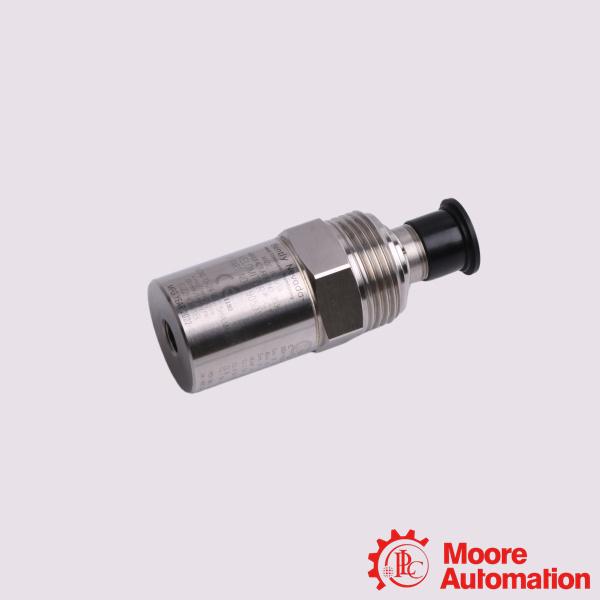

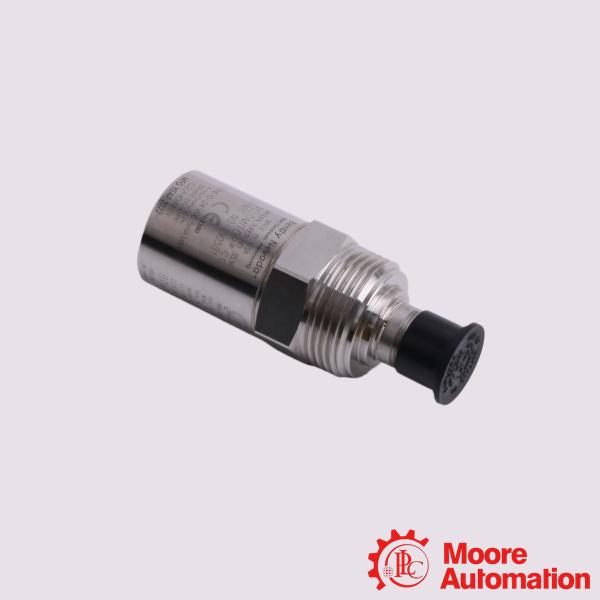

190501-20-99-00 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.5x3.5x3cm
Weight:
0.32kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-20-99-00 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-20-99-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-20-99-00 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-20-99-00 is a Bently Nevada Velomitor CT speed sensor. This sensor uses piezoelectric velocity sensing technology and is specifically designed for low-speed rotating equipment such as cooling tower and air-cooled heat exchanger fans. It is suitable for speeds of 90 rpm (1.5 Hz) and above, and can measure the vibration frequency generated by the fan body, motor, and reduction gears. This model uses a 1/2-inch conduit connector design, allowing connection to flexible metal conduits or armored cables. It is suitable for industrial wiring environments requiring conduit protection. An adapter is not included; the user must prepare the necessary mounting hardware.

Application:

Cooling Tower Fan Assemblies: This is the flagship application. The sensor monitors low-frequency vibrations generated by the slow-moving fan blades, drive shafts, and speed reduction gearboxes to flag imbalance or structural fatigue.
Air-Cooled Heat Exchangers (Fin-Fans): Extensively used in petrochemical plants and power stations to monitor structural resonance and blade imbalances on low-speed fin-fans.
General Low-Speed Industrial Blowers & Pumps: Any heavy-duty machinery operating at lower velocities down to 90 rpm (3.0 Hz) where low-frequency accuracy is vital.
Inaccessible or Wet Wet-Well Areas: The -99 32-foot built-in cable is designed for machinery where the termination point must be run completely outside a harsh, humid enclosure (like a cooling tower shroud or ventilation housing) without requiring an intermediate junction box near the wet zone.

Frequently Asked Questions (FAQ)

Q:Can this sensor survive harsh outdoor environments?
A:Yes. The casing is made of 316L stainless steel and is hermetically sealed. It is specifically engineered to resist the constant water spray, high humidity, and corrosive chemical water treatments found inside industrial cooling towers.
Q:What kind of cable do I need to connect to it?
A:Because this part number ends in -00, it has an un-cabled MIL-C-5015 top connector. You will need a compatible 2-pin MIL-C-5015 terminal cable assembly (usually a Bently Nevada 02173006 or 101212 series cable) to link it to your monitoring system.

Q:What makes the "Velomitor CT" different from a standard Velomitor?
A:The CT stands for Cooling Tower. Standard Velomitors (like the 330500) are optimized for higher speeds. The Velomitor CT is specifically designed for low-frequency applications, tracking vibration frequencies down to 3.0 Hz (approx. 180 cpm), making it ideal for the slow rotation of cooling tower fans.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-20-99-00
Mounting Hardware Option	Adapter, 3/8-in 24 to 3/8-in 18 NPT
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Agency Approval Option	No Approvals
