190501-17-99-04 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:

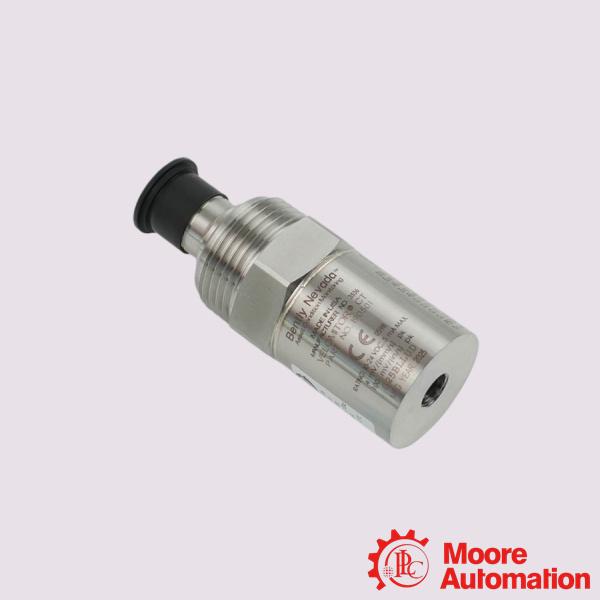

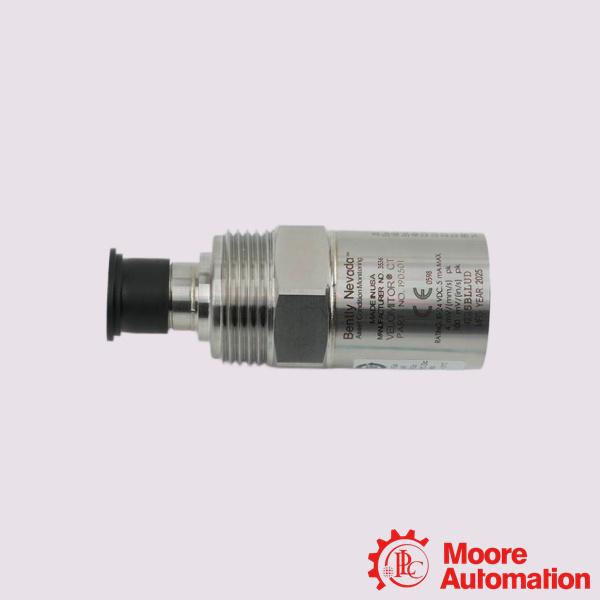

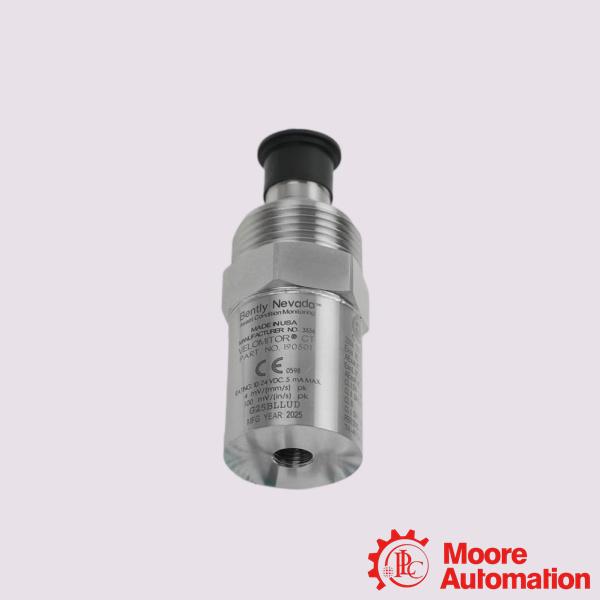

Bently Nevada 190501-17-99-04 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-17-99-04

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-17-99-04 Velomitor CT Velocity Transdu

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-17-99-04 Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Oil & Gas / Petrochemical: Refineries, offshore production platforms, and chemical processing facilities.
Power Generation: Coal-fired, combined-cycle, and hydroelectric plants.
Heavy Manufacturing: Pulp and paper mills, steel mills, and mineral processing/mining plants
Slow-Speed Industrial Drives: Monitoring structural stress and imbalance on the large motors and speed reducers (gearboxes) connected to low-RPM machinery.

Frequently Asked Questions (FAQ)

Q:Can I extend the included 32-foot cable?
A:Yes, up to a maximum continuous system distance of 305 meters (1,000 feet) without experiencing signal degradation. However, the additional cable run must match the original 20 AWG twisted-shielded pair specifications to maintain explosion-proof certifications.
Q:What is the primary difference between a standard Velomitor and this CT model?
A:The Velomitor CT features a frequency response shifted downward to capture low-speed fan anomalies. While standard velocity sensors struggle below 10 Hz, the 190501 safely records frequencies down to 1.5 Hz to 1.0 kHz (±3.0 dB), optimized for slow-turning cooling tower rotors running between 100 to 300 RPM.

Q:How low of a rotation speed can it monitor?
A:Unlike standard velocity sensors that require higher operational speeds, the Velomitor CT is custom-engineered to monitor slow-turning fans operating down to 90 rpm.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-17-99-04
Mounting Hardware Option	Adapter, 3/8-in 24 to 3/8-in 16
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Amplitude Linearity	±2% to 63.5 mm/s pk (2.5 in/s pk)
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Shock Limit	5000 g pk, maximum
