190501-17-00-04 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:

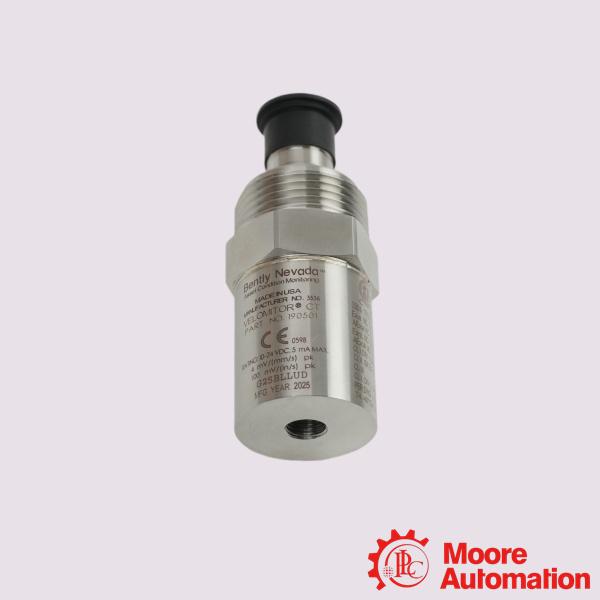

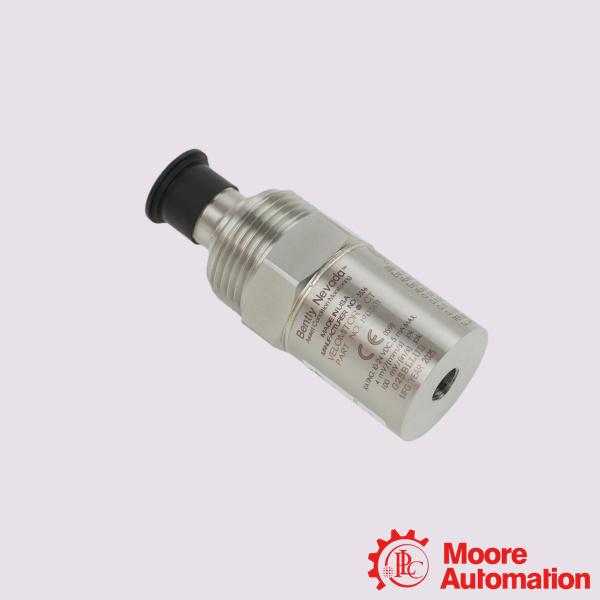

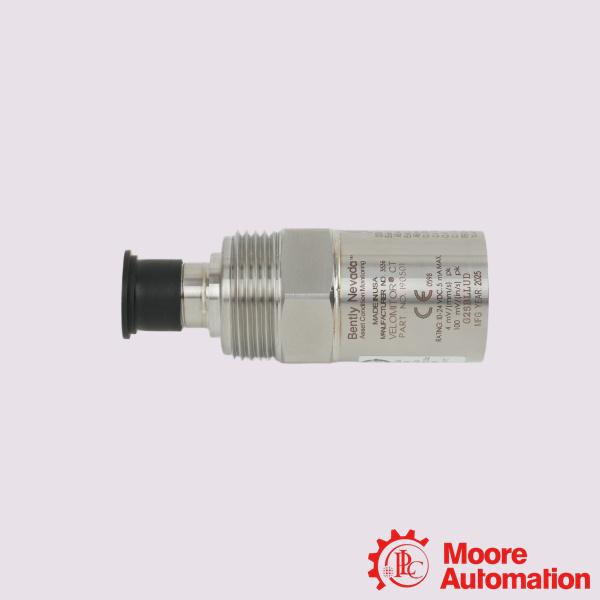

Bently Nevada 190501-17-00-04 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-17-00-04

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-17-00-04 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-17-00-04 is a specialized, low-frequency Velomitor CT (Cooling Tower) Velocity Transducer. It is designed specifically to measure casing vibration velocity on slow-moving equipment running at or above 90 RPM, such as cooling tower fans and air-cooled heat exchangers.The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Industrial Cooling Towers: Large-scale cooling towers used in petrochemical plants, oil refineries, and power generation facilities.
Air-Cooled Heat Exchangers (Fin-Fans): Forced-draft or induced-draft "fin-fan" assemblies common in upstream oil & gas processing, midstream pipelines, and chemical plants.
Low-Speed Industrial Fans & Blowers:Large induced draft (ID) fans, forced draft (FD) fans, and heavy-duty ventilation blowers across paper mills, steel plants, and mining facilities.
Slow-Speed Pumps & Reduction Gearboxes:Large-scale water intake pumps, wastewater treatment agitators, and the low-speed side of industrial speed reducers.

Frequently Asked Questions (FAQ)

Q:How should the sensor be oriented during installation?
A:The sensor can be mounted at any orientation or angle. However, it must be rigidly coupled to the machine casing using the specified mounting torque of 4.5 N-m ± 0.6 N-m (40 in-lbf) to prevent high-frequency signal distortion.
Q:What type of cabling and maximum length is supported?
A:It uses a 2-wire shielded twisted-pair cable connected via a standard 2-pin MIL-C-5015 plug. The system supports a maximum cable run of up to 305 meters (1,000 feet) without experiencing signal degradation.

Q:How do you verify or calibrate this transducer?
A:Because it is a low-frequency sensor, standard shaker tables cannot accurately calibrate it. It should be verified using a specialized low-frequency portable calibrator—such as The Modal Shop Model 9210D—which can test down to the actual running speed of the cooling tower fan.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-17-00-04
Mounting Hardware Option	Adapter, 3/8-in 24 to 3/8-in 16
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Shock Limit	5000 g pk, maximum
Humidity Limit	100% condensing, non-submerged
