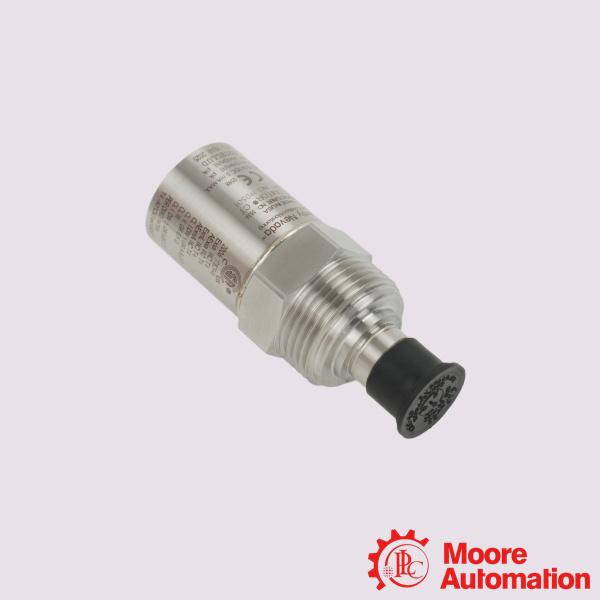

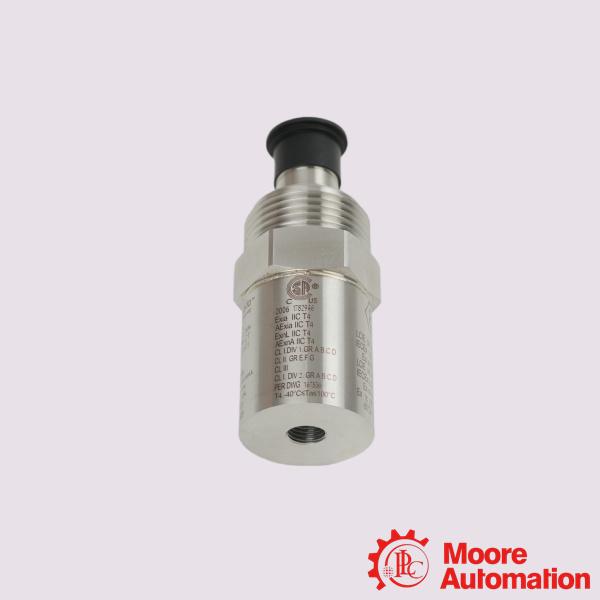

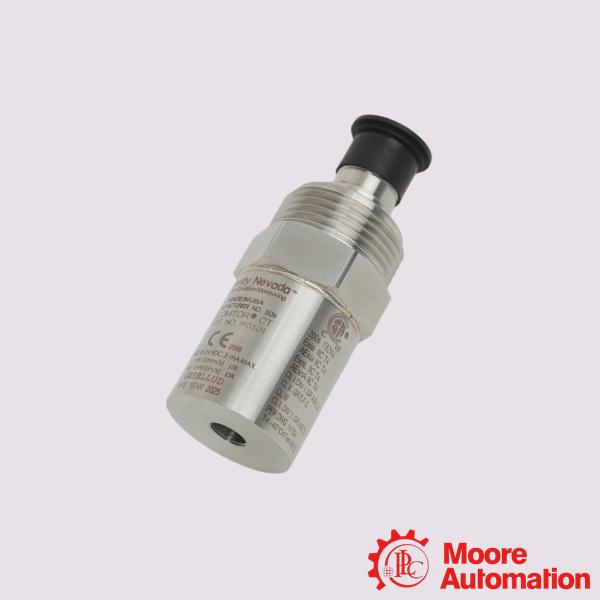

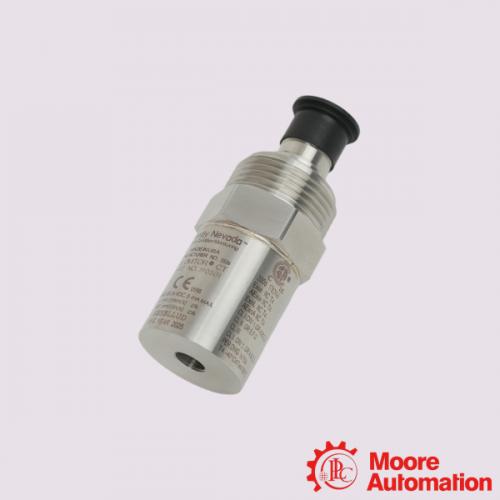

190501-17-00-00 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-17-00-00 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-17-00-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-17-00-00 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-17-00-00 is a specific configuration of the Velomitor CT (Cooling Tower) Velocity Transducer.This model is explicitly optimized for low-speed machinery operating at or above 90 RPM, such as cooling tower fans and air-cooled heat exchangers. The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical).

Application:

Power Generation: Monitoring cooling towers in coal, combined-cycle gas, nuclear, and geothermal power plants.
Oil & Gas (Refining & Petrochemical): Protecting massive air-cooled heat exchangers (fin-fans) and process pumps utilized in petrochemical plants and offshore platforms.
Chemical & Fertilizer Plants: Tracking structural vibration on essential utility cooling towers.
Water & Wastewater Treatment: Monitoring heavy-duty, low-RPM water treatment pumps and aeration fans.

Frequently Asked Questions (FAQ)

Q:How should the sensor be mounted?
A:The sensor can be mounted in any orientation. It requires a flat mounting surface of at least 33 mm in diameter. It must be tightened down to a specific torque profile of 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf) to avoid measuring false casing strains.
Q:What is the maximum recommended cable length?
A:The signal can travel up to 305 metres (1,000 ft) over approved twisted-pair shielded cable with zero signal degradation.

Q:Can I use this sensor in hazardous environments?
A:No, the -00 suffix at the very end indicates No Agency Approvals. If your cooling tower requires ATEX, IECEx, or Class I Div 1 approvals, you must source a variation like the 190501-17-00-01 or 190501-17-00-CN.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-17-00-00
Mounting Hardware Option	Adapter, 3/8-in 24 to 3/8-in 16
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Shock Limit	5000 g pk, maximum
Humidity Limit	100% condensing, non-submerged
Agency Approval Option	No Approvals
