190501-15-99-01 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:

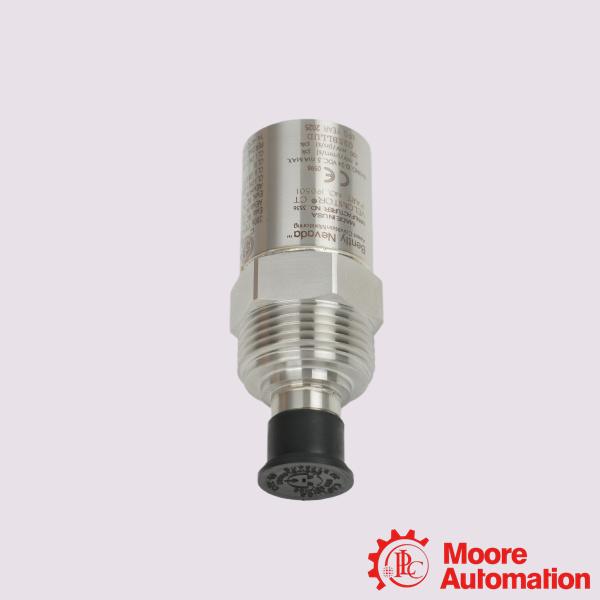

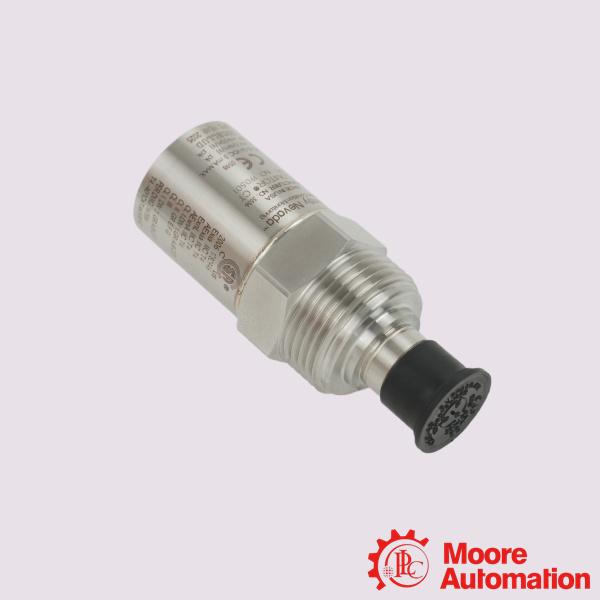

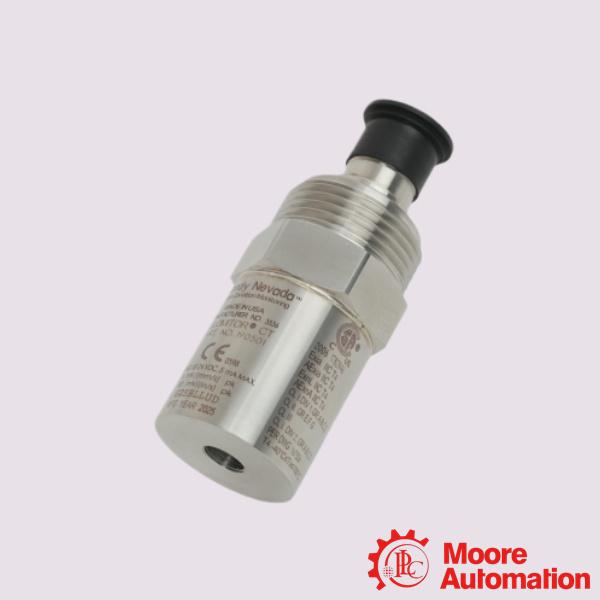

Bently Nevada 190501-15-99-01 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-15-99-01

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-15-99-01 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-15-99-01 Velomitor CT velocity sensor is a piezoelectric velocity sensor designed for low-frequency applications, representing a low-frequency version of the standard Velomitor sensor. This sensor is specifically designed for measuring the casing vibration velocity of cooling towers and air-cooled heat exchanger fan components, and is suitable for low-speed rotating equipment operating at 90 rpm and above (typical range 100–300 rpm).

Application:

Oil & Gas / Refining: Offshore platforms and downstream refinery cooling blocks.
Power Generation: Condenser cooling towers in coal, gas, and nuclear power plants.
Chemical & Petrochemical: Industrial heat management and process cooling circuits.
Pulp & Paper / Heavy Manufacturing: Heavy-duty process water cooling systems.

Frequently Asked Questions (FAQ)

Q:Can I swap this sensor without recalibrating my monitoring system?
A:Yes, in most cases. Because it outputs the industry-standard 100 mV/in/s sensitivity, it is a direct drop-in replacement for standard velocity configurations. Your existing alarm setpoints, configuration profiles, and full-scale ranges within systems like the Bently Nevada 3500 remain valid. Performing a post-installation functional check is still standard practice.
Q:How should the sensor be oriented during installation?
A:The transducer supports a maximum field cable length of up to 305 metres (1,000 feet) without any signal degradation.The transducer can be mounted in any physical orientation (vertical, horizontal, or inverted). However, it must be rigidly fixed directly onto the bearing housing or machine casing.

Q:What is the proper torque specification for mounting?
A:It should be torqued to 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf). Under-torquing reduces the frequency response accuracy, while over-torquing can permanently damage the internal piezo-electric crystal or the mounting threads.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-15-99-01
Mounting Hardware Option	Adapter, 3/8-in 24 to 5/16-in 18
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
