190501-14-00-04 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:

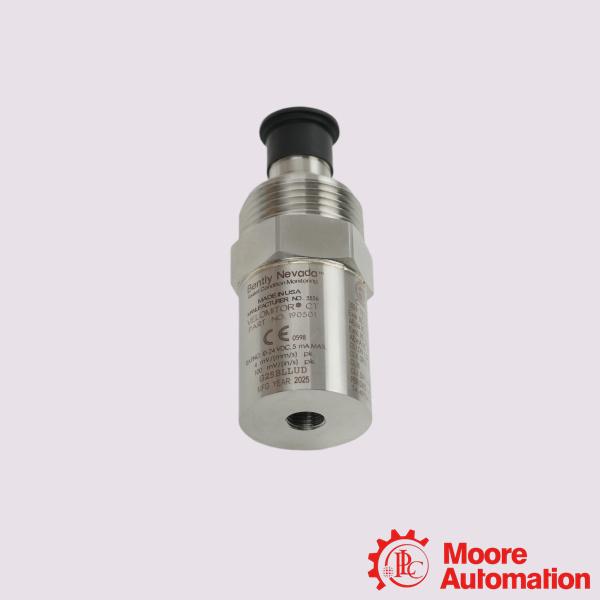

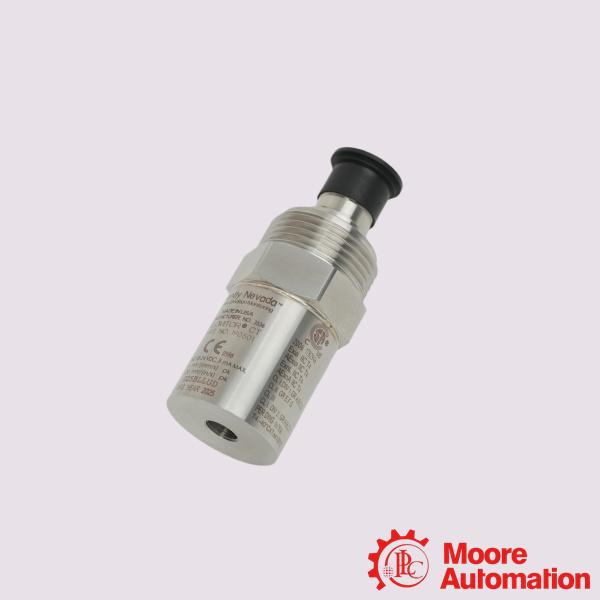

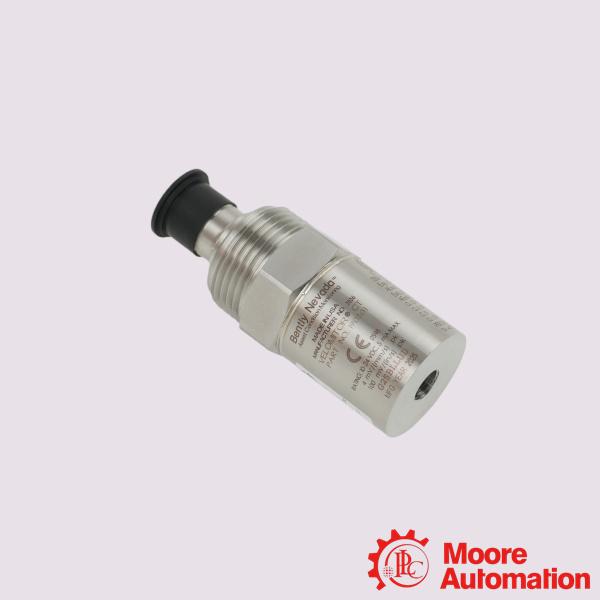

Bently Nevada 190501-14-00-04 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-14-00-04

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-14-00-04 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The part number 190501-14-00-04 corresponds to a Bently Nevada Velomitor CT Velocity Transducer, a specialized piezo-velocity sensor optimized for low-frequency casing vibration monitoring.The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Wastewater Treatment & Mining Operations: Protects massive, high-torque, low-speed aeration fans and processing ventilation equipment.
Power Generation Facilities: Mounted on cooling tower arrays for steam-condensing processes to safeguard continuous baseline power generation.
Petrochemical & Refining Plants: Deployed in critical hydrocarbon processing zones where explosive atmospheres mandate the integrated -04 intrinsic safety agency rating.
Industrial Cooling Towers: Installed on the fan gearboxes and casing structures to track low-frequency mechanical imbalances, blade pass frequencies, and structural looseness.

Frequently Asked Questions (FAQ)

Q:What is the primary application for this sensor?
A:It is explicitly designed to measure low-frequency casing and bearing housing vibrations. Its primary industrial use cases include cooling tower fan assemblies, air-cooled heat exchangers, slow-speed pumps, and large industrial fans operating at low rotational speeds.
Q:Does mounting orientation affect its readings?
A:No. Unlike traditional mechanical velocity pickups, this solid-state piezo-velocity sensor has no moving internal components and can be mounted in any orientation (vertical, horizontal, or upside down) without losing accuracy.

Q:Why am I seeing false alerts after an impact?
A:A sudden mechanical shock or drop generates a massive low-frequency voltage spike across piezoelectric crystals. This behavior can cause connected machinery protection systems (like the Bently Nevada 3500 series) to register false Alert or Danger relay trips. Always handle the sensor carefully during active plant operation.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-14-00-04
Mounting Hardware Option	Adapter, 3/8-in 24 to 1/4-in 20
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Output Bias Voltage	10.1 Vdc ± 1.0 Vdc
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
