in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
8.3x3.5x3.2cmWeight:
0.3kgCountry of Origin: :
USADescription:

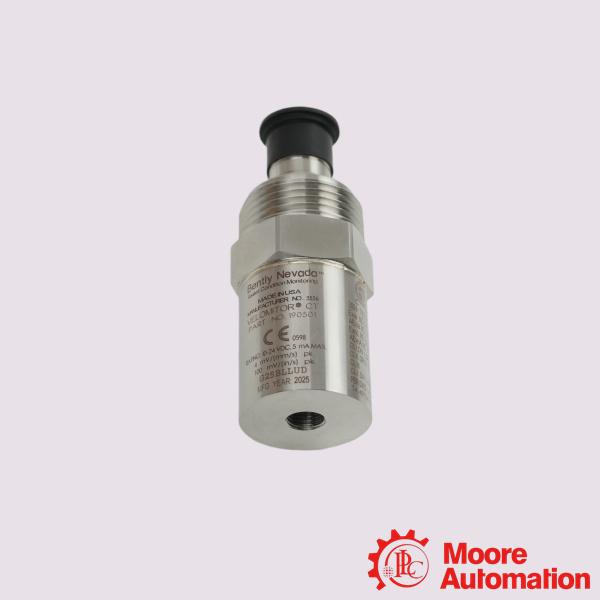

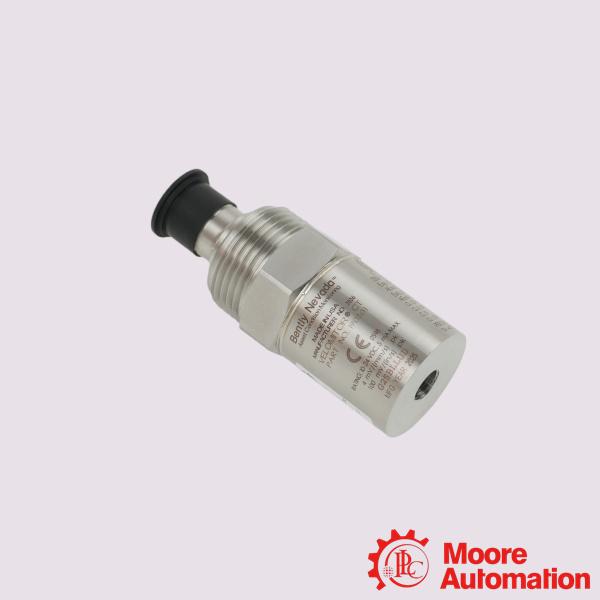

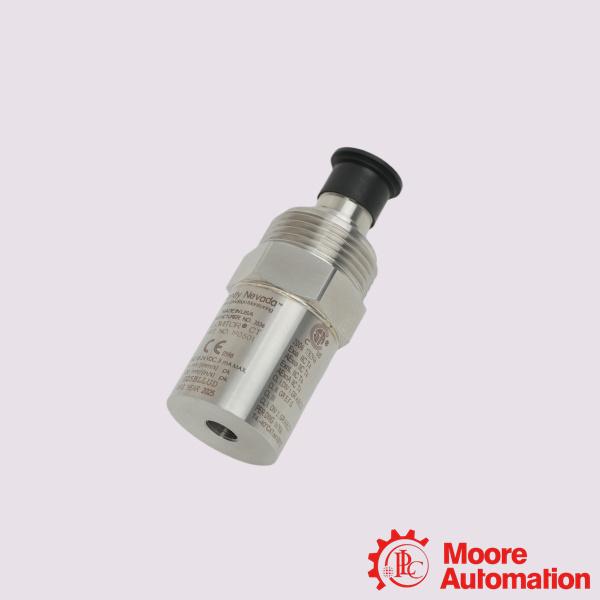

Bently Nevada 190501-14-00-01 Velomitor CT Velocity Transducer
| Mfr. Part Number: |
190501-14-00-01 |
| Manufacturer: |
Bently Nevada |
| Description: | Bently Nevada 190501-14-00-01 Velomitor CT Velocity Transducer |
| Full Description: | The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 190501-14-00-01 is a Velomitor CT (Cooling Tower) Velocity Transducer, which is a specialized low-frequency vibration sensor designed to monitor casing vibrations on slow-speed machinery operating at or above 90 RPM .The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.
Application:
Industrial Cooling Towers: Designed to monitor structural vibration on slow-speed cooling fans used across chemical plants, oil refineries, and manufacturing facilities.
Air-Cooled Heat Exchangers (Fin-Fans): Measures casing vibration velocities on low-velocity fan assemblies to detect early signs of mechanical degradation.
Slow-Speed Rotating Equipment: Optimised to trace imbalance, misalignment, and mechanical looseness in machinery driven by low-frequency motors and speed reducers.
Power Generation & Petrochemical Plants: Extensively deployed on large heat-rejection infrastructure within heavy processing industries to safeguard automated systems and eliminate unplanned shutdowns.
Frequently Asked Questions (FAQ)
Q:What mounting torque should be applied?
A:The transducer requires a precise torque of 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf) during installation. Insufficient torque attenuates high-frequency response data, whereas over-tightening risks fracturing the internal piezo crystal element.
Q:Which monitoring systems support this transducer?
A:It interfaces seamlessly with legacy machinery protection platforms like the Bently Nevada 3500/42M monitor. For modern deployments using the Orbit 60 Series, Baker Hughes advises using the PAV (Positive Amplitude Voltage) module rather than standard PVT modules to safely match power limits.
Q:What is the maximum supported cable distance?
A:It supports field wiring runs up to 305 meters (1,000 feet) using approved twisted, shielded 20 AWG Teflon jacketed cabling without causing signal degradation.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：190501-14-00-01 |
|
Mounting Hardware Option |
Adapter, 3/8-in 24 to 1/4-in 20 |
|
Connection Option |
MIL-C-5015 connection interface |
|
Sensitivity |
3.94 mV/mm/s (100 mV/in/s) ±5% |
|
Temperature Sensitivity |
-8% to +5% typical over the operating temperature range |
|
Transverse Response |
Less than 5% of the axial sensitivity |
|
Output Bias Voltage |
10.1 Vdc ± 1.0 Vdc |
|
Dynamic Output Impedance |
<400 Ω typical |
|
Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Storage Temperature |
-40°C to +100°C (-40°F to +212°F) |
|
