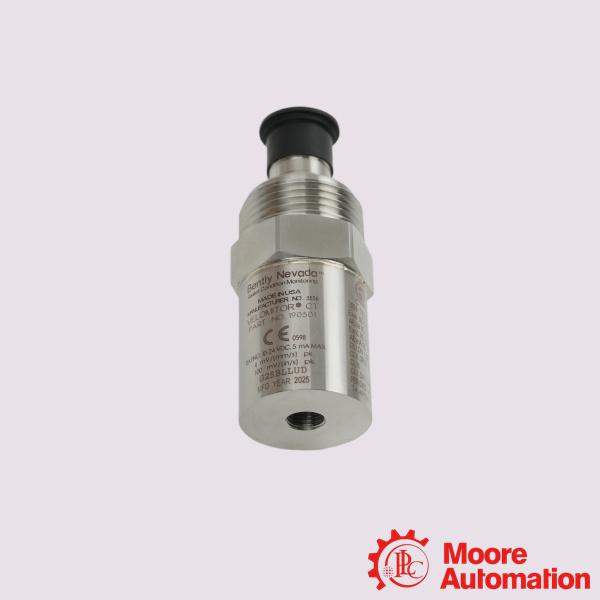

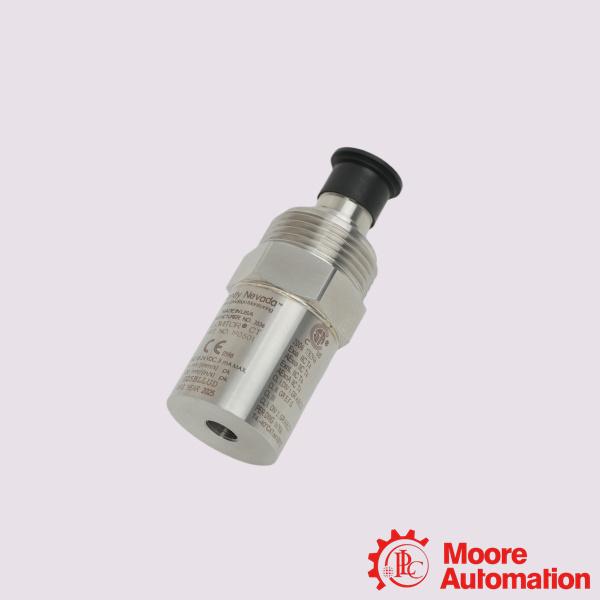

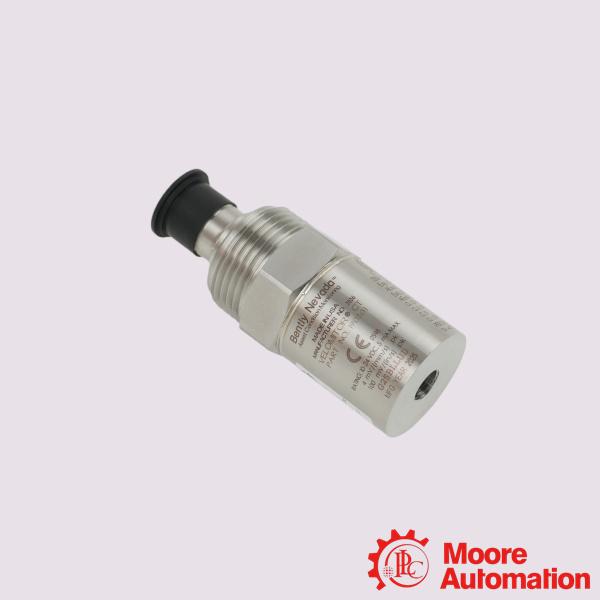

190501-14-00-00 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-14-00-00 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-14-00-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-14-00-00 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-14-00-00 is a Velomitor CT Velocity Transducer used to measure low-frequency casing vibration. This specific part configuration features a 3/8-24 to 1/4-20 thread adapter mount, a MIL-C-5015 electrical connection.The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Oil & Gas / Petroleum Refining: On large process cooling towers and industrial plant fan systems.
Petrochemical & Chemical Processing: Protecting slow-speed rotating assets exposed to harsh outdoor elements.
Power Generation Plants: Implemented on cooling towers for fossil, nuclear, or combined-cycle power facilities.
Pulp, Paper, and Sugar Production: Protecting large-scale facility ventilation and heavy mechanical machinery.

Frequently Asked Questions (FAQ)

Q: Where is this sensor typically deployed?
A:It is designed specifically for wet or humid low-speed environments, such as industrial cooling tower fans and air-cooled heat exchangers. It tracks casing anomalies on fans running at or above 90 RPM.
Q:What is the recommended mounting torque?
A:You must torque the sensor down to 4.5 N-m ± 0.6 N-m (40 in–lbf ± 5 in-lbf). Improper torquing will introduce false frequency responses or distort structural vibration readouts.

Q:What cable assemblies are compatible?
A:It interfaces with standard 2-socket MIL-C-5015 splash-proof cabling networks. Because cooling tower environments are incredibly damp, Bently Nevada recommends using a shielded twisted-pair cable protected by a Teflon jacket.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-14-00-00
Mounting Hardware Option	Adapter, 3/8-in 24 to 1/4-in 20
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Output Bias Voltage	10.1 Vdc ± 1.0 Vdc
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Agency Approval Option	No Approvals
