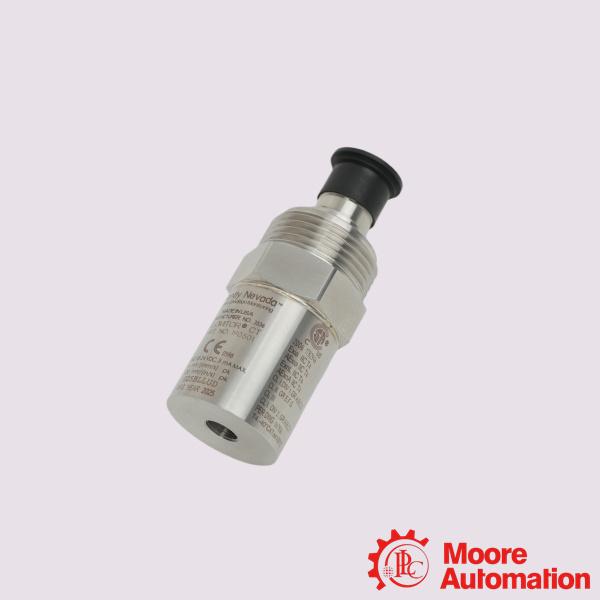

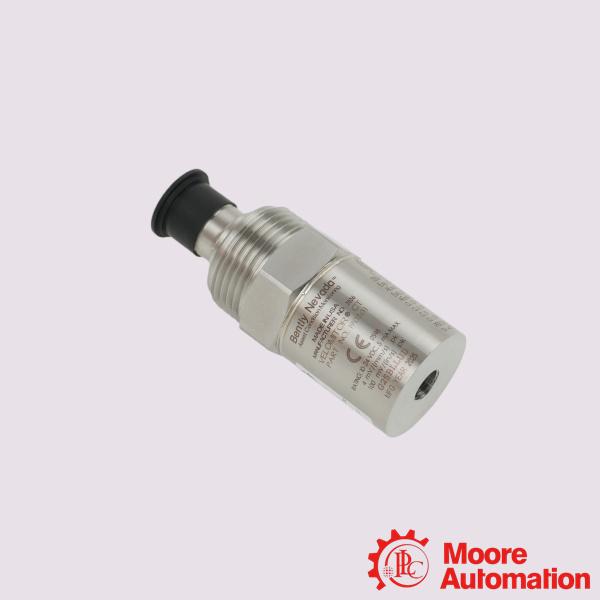

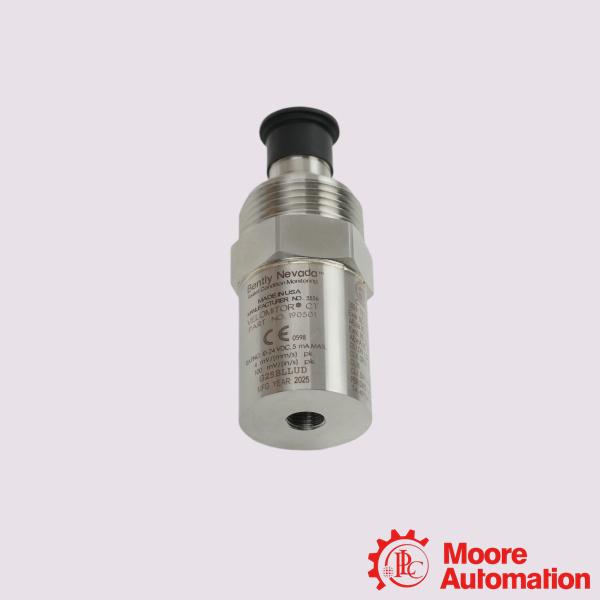

190501-13-00-04 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-13-00-04 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-13-00-04

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-13-00-04 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-13-00-04 is a dedicated two-wire, loop-powered configuration of the Velomitor CT (Cooling Tower) Velocity Transducer. As a low-frequency adaptation of the standard Velomitor Piezo-velocity Sensor, this transducer is purpose-built for measuring casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies operating at rotational speeds of 90 rpm or higher, with typical applications falling within the 100 to 300 rpm range. In addition to capturing vibration amplitudes at these low fundamental frequencies, the Velomitor CT Transducer is equally capable of detecting the higher-frequency vibration components generated by the fan motor and speed reducer.

Application:

Oil & Gas Downstream & Refining: Monitors critical cooling cells in refining blocks.
Petrochemical & Fertilizer Plants: Tracks vibration on heavy chemical processing cooling towers.
Power Generation Facilities: Safeguards thermal and gas-fired plant condensation systems.
Pulp, Paper, & Sugar Production: Used in continuous processing mills where ambient moisture is high.

Frequently Asked Questions (FAQ)

Q: Is it an accelerometer or a velocity sensor?
A:It is a piezo-velocity sensor. Internally, it features an accelerometer mechanism combined with an embedded electronic integrator. This design allows it to measure acceleration natively but output a clean, stable velocity signal directly to your monitoring system.
Q:Can I integrate the output signal directly into a PLC/DCS analog input card?
A:No, not directly. The Velomitor CT utilizes a constant-current loop system. It requires an external power source or matching monitor module to supply a bias current. Connecting it directly to a standard, unconditioned 4-20mA analog PLC card will not work and may throw a sensor fault.

Q: Can the sensor be mounted at an angle?
A:Yes. The 190501 can be installed at any orientation (vertical, horizontal, or inverted) without affecting its baseline low-frequency sensitivity profiles.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-13-00-04
Mounting Hardware Option	Quick disconnect stud
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Output Bias Voltage	10.1 Vdc ± 1.0 Vdc
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
